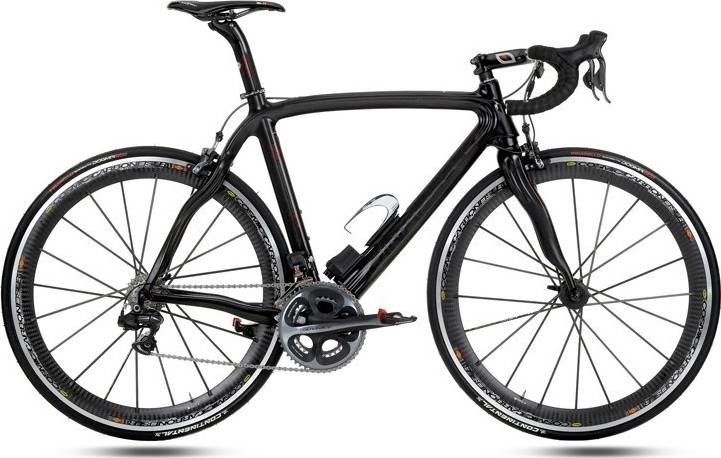

Pinarello Dogma 60.1 BOB Frameset 2019
2019 Road
Estimate price |
5,800$
Weight | 0.95 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
60HM1K Monocoque Carbon
Suspension Fork
Onda Carbon 60HM1K 1” 1/8 - 1” 1/4 integral system
Drivetrain
Front Derailleur
Braze-On Required
Bottom Bracket
70mm / Italian
Cockpit
Headset
Pinarello Integrated
Seat
Seatpost
Most Aero Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 44cm | 46.5cm | 50cm | 51.5cm | 53cm | 54cm | 55cm | 56cm | 57.5cm | 59.5cm |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Top Tube Length | 504 mm | 509 mm | 521 mm | 531 mm | 541 mm | 551 mm | 556 mm | 563 mm | 571 mm | 581 mm | 593 mm |
| Seat Tube Angle | 74.4 ° | 74.4 ° | 74.4 ° | 74 ° | 73.7 ° | 73.7 ° | 73.4 ° | 73.4 ° | 73 ° | 73 ° | 72.4 ° |
| Seat Tube Length | 440 mm | 460 mm | 485 mm | 520 mm | 535 mm | 550 mm | 560 mm | 570 mm | 590 mm | 595 mm | 615 mm |
| Head Tube Angle | 69.15 ° | 70 ° | 70.5 ° | 71.4 ° | 72 ° | 72.5 ° | 72.8 ° | 72.8 ° | 73.2 ° | 72.7 ° | 73.4 ° |
| Head Tube Length | 113 mm | 115 mm | 120 mm | 125 mm | 130 mm | 144 mm | 152 mm | 163 mm | 170 mm | 184 mm | 210 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 414 mm | 414 mm | 414 mm | 414 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
Dogma 60.1 BOB Frameset is a Pinarello Dogma model. There are 171 frames that carry this model name. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Pinarello Dogma F10 Disk Frameset 2019 is the most economical model, with a starting price of 4999$. Pinarello Dogma FS Frameset 2019 on the other hand costs 10000$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Race frames average price
If you want an acceptable Race frame you should know that the average price is 2445$. However, even if your budget is less than the average, you might still be able to get a top-quality Race frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
At the moment of the release date, Pinarello Dogma 60.1 BOB Frameset price was 5800$. Comparing this to the average Race frame price, we see that the price is 137.22% higher.
Race frames average weight
Race frames weigh an average of 1.41 kg (3.11 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Dogma 60.1 BOB Frameset weighs 0.95 kg (2.09 lbs) and is much lighter than the average. In other words, this model is 48.42% lighter than the average Race frame.
Overview of components
Fork material
When it comes to the fork, this frame has a carbon one, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
