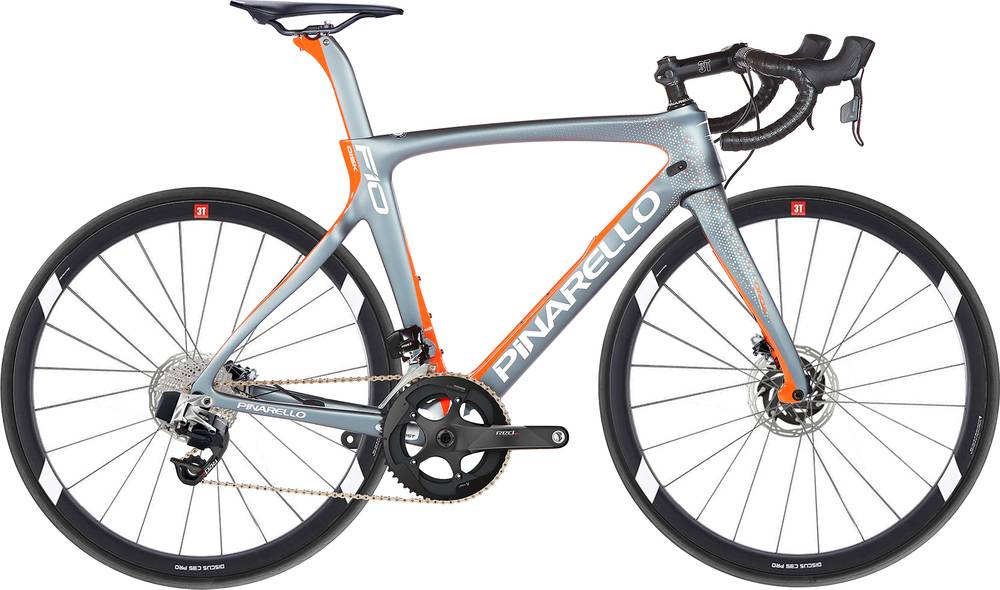

Pinarello Dogma F10 Disk Red eTap Bike 2019
2019 Road
Estimate price |
7,200$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED eTAP, RED 22 -
Suspension Rigid -
Drivetrain Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Torayca T1100 UD Dream Carbon, 142x12 Thru-Axle
Suspension Fork
Onda F10 T1100 Carbon, 1 1/8"-1 1/2", 100x12 Thru-Axle
Drivetrain
Rear Derailleur
SRAM Red eTap, 11s
Front Derailleur
SRAM Red eTap
Shift Levers
SRAM Red eTap HRD
Cassette
SRAM XG-1190, 11-26
Crank
SRAM Red 22 GXP
Bottom Bracket
SRAM GXP Team. Italian Thread
Chain
SRAM Red 22, 11s
Pedals
Not Included
Wheels
Rims
3T Discus C35 Pro Clincher
Tires
Vittoria Corsa G+, 700x25c
Brakes
Brakes
SRAM Red HRD
Disk Rotors
SRAM Centerline
Cockpit
Stem
3T ARX II Team Stealth
Handlebar
3T Ernova Team Stealth
Headset
Integrated, 1 1/8"-1 1/2"
Seat
Saddle
PRO Falcon Carbon
Seatpost
Air 8 Aero Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 42.5cm | 44cm | 46.5cm | 47cm | 50cm | 51.5cm | 52cm | 53cm | 54cm | 55cm | 56cm | 57.5cm | 58cm | 59.5cm | 62cm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.4 mm | 1.4 mm | 1.39 mm | 1.39 mm | 1.39 mm | 1.38 mm | 1.38 mm | 1.4 mm | 1.42 mm | 1.44 mm | 1.45 mm | 1.47 mm | 1.47 mm | 1.55 mm | 1.58 mm |
| Stack | 496 mm | 496 mm | 504 mm | 515 mm | 515 mm | 523 mm | 530 mm | 530 mm | 545 mm | 553 mm | 564 mm | 572 mm | 587 mm | 587 mm | 615 mm | 654 mm |
| Reach | 354 mm | 354 mm | 360 mm | 370 mm | 370 mm | 377 mm | 383 mm | 383 mm | 389 mm | 389 mm | 392 mm | 394 mm | 400 mm | 400 mm | 397 mm | 413 mm |
| Top Tube Length | 501 mm | 501 mm | 506 mm | 518 mm | 518 mm | 528 mm | 538 mm | 538 mm | 548 mm | 553 mm | 560 mm | 568 mm | 578 mm | 578 mm | 590 mm | 623 mm |
| Seat Tube Angle | 74.4 ° | 74.4 ° | 74.4 ° | 74.4 ° | 74.4 ° | 74 ° | 73.7 ° | 73.7 ° | 73.7 ° | 73.4 ° | 73.4 ° | 73 ° | 73 ° | 73 ° | 72.4 ° | 72 ° |
| Seat Tube Length | 420 mm | 420 mm | 440 mm | 465 mm | 465 mm | 500 mm | 515 mm | 515 mm | 530 mm | 540 mm | 550 mm | 560 mm | 575 mm | 575 mm | 595 mm | 620 mm |
| Head Tube Angle | 69.2 ° | 69.2 ° | 70 ° | 70.5 ° | 70.5 ° | 71.4 ° | 72 ° | 72 ° | 72.5 ° | 72.8 ° | 72.8 ° | 73.2 ° | 73.7 ° | 73.7 ° | 73.4 ° | 73.4 ° |
| Head Tube Length | 105 mm | 105 mm | 110 mm | 115 mm | 115 mm | 120 mm | 125 mm | 125 mm | 139 mm | 147 mm | 158 mm | 165 mm | 179 mm | 179 mm | 215 mm | 255 mm |
| Chainstay Length | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm | 411 mm | 411 mm | 411 mm | 411 mm | 411 mm | 414 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
Dogma F10 Disk Red eTap Bike completes the Pinarello Dogma model. Pinarello launched 171 bikes of this model so far. You can easily view all of the Pinarello Dogma bikes models from 2019, here.
Model range prices
Pinarello Dogma F10 Rim Ultegra Di2 Bike 2019 is the most affordable bike of this model and has a price of 6600$. On the other hand, Pinarello Dogma F8 Xlight Dura-Ace Di2 Bike 2019, is the most expensive and costs 17499$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Race bikes
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, even though the average price of a Race bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2019 and its price was 7200$. Comparing the average cost of a Race bike to this one, you will see that Dogma F10 Disk Red eTap Bike price is 114.93% higher.
Dogma F10 Disk Red eTap Bike components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The Dogma F10 Disk Red eTap Bike 2019 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Pinarello Dogma F10 Disk Red eTap Bike is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
