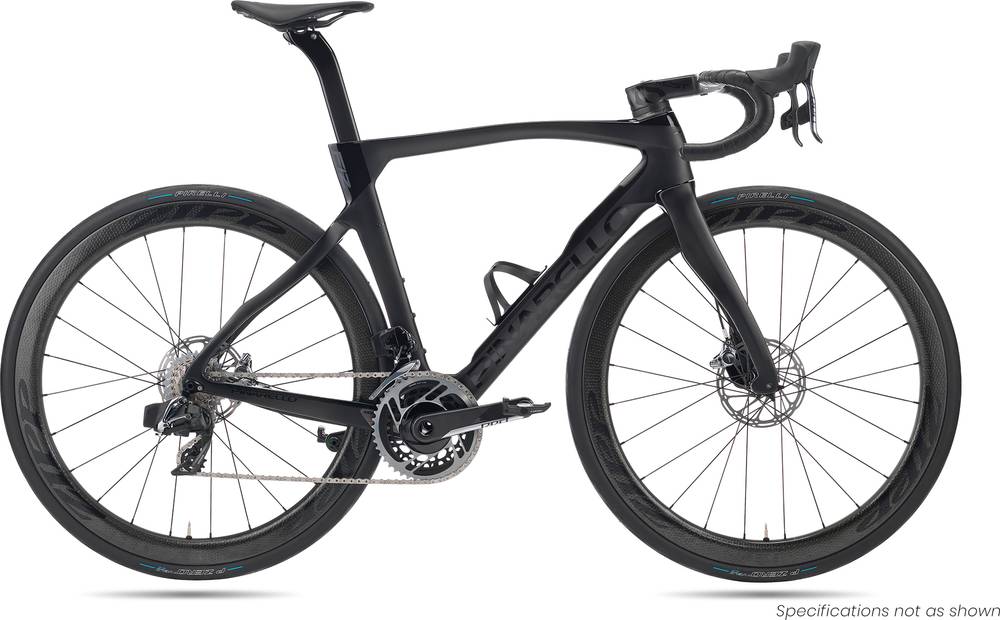

Pinarello Dogma F12 Disk Dura Ace Di2 Bike 2019
2019 Road
Estimate price |
12,000$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Torayca T1100 1K Dream Carbon, 12x142mm Thru-Axle
Suspension Fork
Pinarello ONDA F12, ForkFlap, Torayca T1100, 12x100mm Thru-Axle
Drivetrain
Rear Derailleur
Shimano Dura-Ace Di2 9150
Front Derailleur
Shimano Dura-Ace Di2 9150
Shift Levers
Shimano Dura-Ace Di2 9170
Cassette
Shimano Dura-Ace 9100, 11-28
Crank
Shimano Dura-Ace 9100, 52/36
Bottom Bracket
Italian Threaded
Chain
Shimano HG901
Pedals
Not Included
Wheels
Rims
Fulcrum Racing Wind 400
Tires
Pirelli PZero Velo, 700x25c
Brakes
Brakes
Shimano Dura-Ace 9170 Hydraulic
Disk Rotors
Shimano RT900
Cockpit
Stem
MOst Talon Ultra
Handlebar
MOst Talon Ultra
Headset
Drop-in-Bearing System, 1 1/2"
Seat
Saddle
MOst Lynx Carbon
Seatpost
Dogma F12 Aero Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42.5cm | 44cm | 46.5cm | 47cm | 50cm | 51.5cm | 53cm | 54cm | 55cm | 56cm | 57.5cm | 59.5cm | 62cm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.43 mm | 1.42 mm | 1.43 mm | 1.41 mm | 1.41 mm | 1.4 mm | 1.43 mm | 1.45 mm | 1.46 mm | 1.48 mm | 1.56 mm | 1.59 mm |
| Stack | 496.3 mm | 504 mm | 515.6 mm | 528.2 mm | 523.4 mm | 530.3 mm | 534.6 mm | 549.2 mm | 559.6 mm | 568.2 mm | 582.8 mm | 611.3 mm | 649.7 mm |
| Reach | 346.9 mm | 352.3 mm | 362.8 mm | 368.5 mm | 370.1 mm | 376 mm | 381.3 mm | 383 mm | 386.8 mm | 388.7 mm | 394.7 mm | 391.3 mm | 408.1 mm |
| Top Tube Length | 496 mm | 501 mm | 513 mm | 523 mm | 523 mm | 533 mm | 543 mm | 548 mm | 555 mm | 563 mm | 573 mm | 585 mm | 618 mm |
| Seat Tube Angle | 74.4 ° | 74.4 ° | 74.4 ° | 74 ° | 74 ° | 73.7 ° | 73.7 ° | 73.4 ° | 73.4 ° | 73 ° | 73 ° | 72.4 ° | 72 ° |
| Seat Tube Length | 415 mm | 435 mm | 455 mm | 455 mm | 480 mm | 495 mm | 510 mm | 520 mm | 530 mm | 540 mm | 555 mm | 575 mm | 615 mm |
| Head Tube Angle | 69.2 ° | 71 ° | 70.5 ° | 71.4 ° | 71.4 ° | ° | ° | 72.8 ° | 72.8 ° | 73.2 ° | 73.7 ° | 73.4 ° | 73.4 ° |
| Head Tube Length | 94 mm | 99 mm | 104 mm | 114 mm | 109 mm | 114 mm | 123 mm | 131 mm | 142 mm | 149.5 mm | 163 mm | 199 mm | 239 mm |
| Chainstay Length | 404 mm | 404 mm | 404 mm | 404 mm | 404 mm | 404 mm | 404 mm | 404 mm | 406 mm | 406 mm | 406 mm | 406 mm | 409 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
Dogma F12 Disk Dura Ace Di2 Bike belongs to the Pinarello Dogma model. Pinarello released 171 bikes variations of this model so far. Take a sneak peek at all Pinarello Dogma bikes models from 2019, by clicking here.
Model range prices
Pinarello Dogma F10 Rim Ultegra Di2 Bike 2019 is the most economical model, with a starting price of 6600$. Pinarello Dogma F8 Xlight Dura-Ace Di2 Bike 2019 on the other hand costs 17499$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Race bikes
According to our math, the average price for a trustworthy Race bike is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Pinarello released this model in 2019, its price was 12000$. If we compare this with the average Race bike cost we notice that the price is 258.21% more expensive.
Dogma F12 Disk Dura Ace Di2 Bike components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The wheels on Dogma F12 Disk Dura Ace Di2 Bike are the 700c carbon type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Pinarello Dogma F12 Disk Dura Ace Di2 Bike has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
