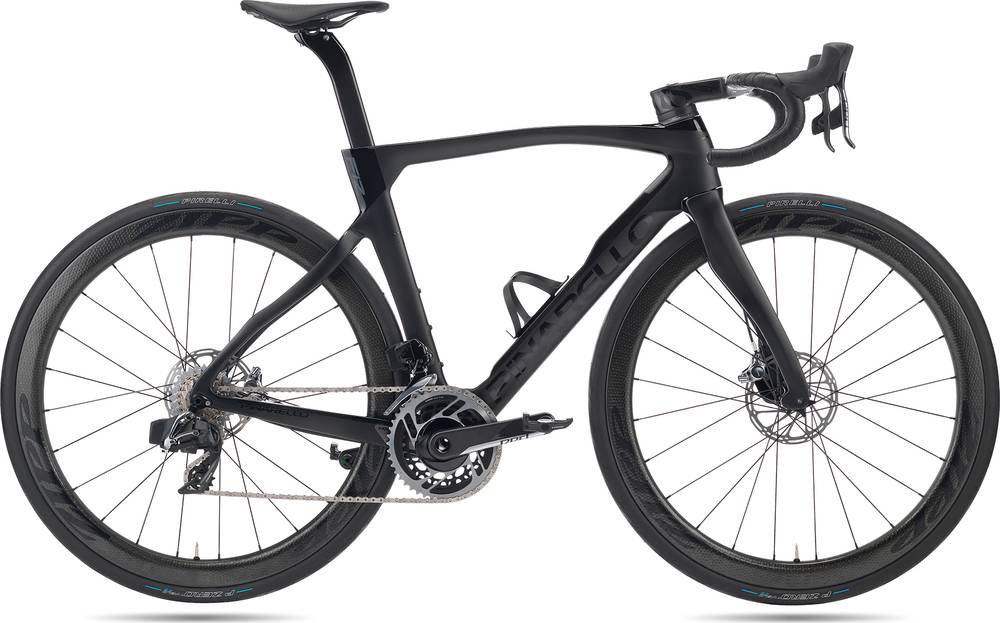

Pinarello Dogma F12 Disk Sram Red Axs Etap Bike 2019
2019 Road
Estimate price |
13,500$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED eTAP -
Suspension Rigid -
Drivetrain Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Torayca T1100 1K Dream Carbon, 12x142mm Thru-Axle
Suspension Fork
Pinarello ONDA F12, ForkFlap, Torayca T1100, 12x100mm Thru-Axle
Drivetrain
Rear Derailleur
SRAM Red eTap AXS
Front Derailleur
SRAM Red eTap AXS
Shift Levers
SRAM Red eTap AXS HRD
Cassette
SRAM XG-1290
Crank
SRAM Red DUB
Bottom Bracket
Italian Threaded
Chain
SRAM Red
Pedals
Not Included
Wheels
Rims
Zipp 303 Firecrest Disc Carbon Clincher
Tires
Pirelli PZero Velo, 700x25c
Brakes
Brakes
SRAM Red HRD
Disk Rotors
SRAM Centerline XR
Cockpit
Stem
MOst Talon Ultra
Handlebar
MOst Talon Ultra
Headset
Drop-in-Bearing System, 1 1/2"
Seat
Saddle
MOst Lynx Carbon
Seatpost
Dogma F12 Aero Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42.5cm | 44cm | 46.5cm | 47cm | 50cm | 51.5cm | 53cm | 54cm | 55cm | 56cm | 57.5cm | 59.5cm | 62cm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.43 mm | 1.42 mm | 1.43 mm | 1.41 mm | 1.41 mm | 1.4 mm | 1.43 mm | 1.45 mm | 1.46 mm | 1.48 mm | 1.56 mm | 1.59 mm |
| Stack | 496.3 mm | 504 mm | 515.6 mm | 528.2 mm | 523.4 mm | 530.3 mm | 534.6 mm | 549.2 mm | 559.6 mm | 568.2 mm | 582.8 mm | 611.3 mm | 649.7 mm |
| Reach | 346.9 mm | 352.3 mm | 362.8 mm | 368.5 mm | 370.1 mm | 376 mm | 381.3 mm | 383 mm | 386.8 mm | 388.7 mm | 394.7 mm | 391.3 mm | 408.1 mm |
| Top Tube Length | 496 mm | 501 mm | 513 mm | 523 mm | 523 mm | 533 mm | 543 mm | 548 mm | 555 mm | 563 mm | 573 mm | 585 mm | 618 mm |
| Seat Tube Angle | 74.4 ° | 74.4 ° | 74.4 ° | 74 ° | 74 ° | 73.7 ° | 73.7 ° | 73.4 ° | 73.4 ° | 73 ° | 73 ° | 72.4 ° | 72 ° |
| Seat Tube Length | 415 mm | 435 mm | 455 mm | 455 mm | 480 mm | 495 mm | 510 mm | 520 mm | 530 mm | 540 mm | 555 mm | 575 mm | 615 mm |
| Head Tube Angle | 69.2 ° | 71 ° | 70.5 ° | 71.4 ° | 71.4 ° | ° | ° | 72.8 ° | 72.8 ° | 73.2 ° | 73.7 ° | 73.4 ° | 73.4 ° |
| Head Tube Length | 94 mm | 99 mm | 104 mm | 114 mm | 109 mm | 114 mm | 123 mm | 131 mm | 142 mm | 149.5 mm | 163 mm | 199 mm | 239 mm |
| Chainstay Length | 404 mm | 404 mm | 404 mm | 404 mm | 404 mm | 404 mm | 404 mm | 404 mm | 406 mm | 406 mm | 406 mm | 406 mm | 409 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
Dogma F12 Disk Sram Red Axs Etap Bike is a Pinarello Dogma model. Pinarello launched 171 bikes of this model so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Pinarello Dogma F10 Rim Ultegra Di2 Bike 2019 is the most affordable bike of this model and has a price of 6600$. On the other hand, Pinarello Dogma F8 Xlight Dura-Ace Di2 Bike 2019, is the most expensive and costs 17499$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Race bikes
According to our calculations, the average cost of a Race bike that is reliable is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2019 and its price was 13500$. In conclusion, this bike price is 302.99% higher than the price of the average Race bike.
Dogma F12 Disk Sram Red Axs Etap Bike components
Fork material
Dogma F12 Disk Sram Red Axs Etap Bike has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The Dogma F12 Disk Sram Red Axs Etap Bike 2019 bike is equipped with 700c carbon wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Pinarello Dogma F12 Disk Sram Red Axs Etap Bike has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
