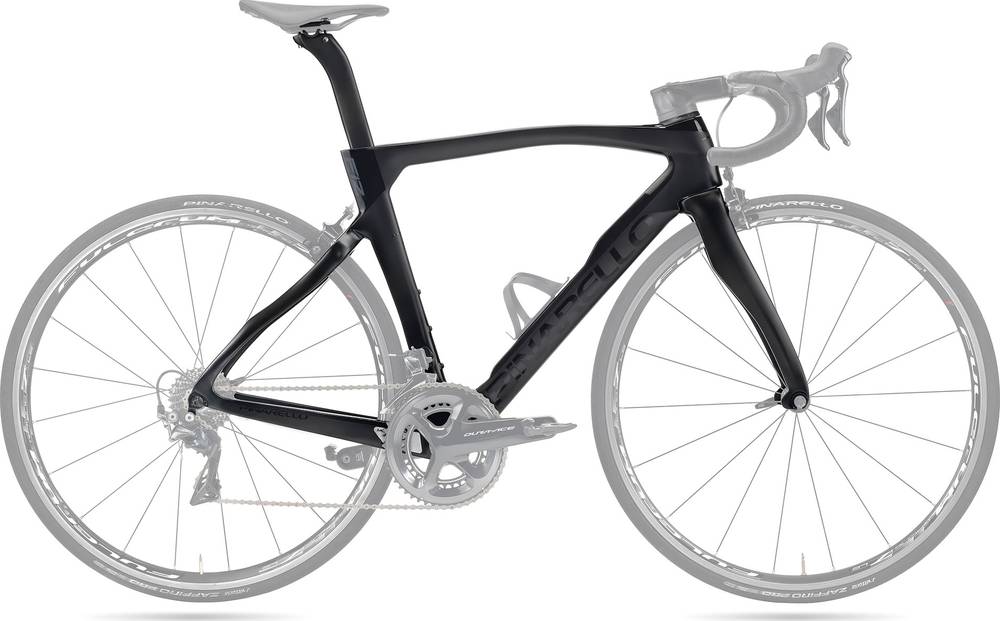

Pinarello Dogma F12 Frameset 2019
2019 Road
Estimate price |
6,500$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Torayca T1100 1K Dream Carbon
Suspension Fork
Pinarello ONDA F12, ForkFlap, Torayca T1100
Drivetrain
Bottom Bracket
Italian Threaded
Cockpit
Headset
Drop-in-Bearing System, 1 1/2"
Seat
Seatpost
Dogma F12 Aero Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42.5cm | 44cm | 46.5cm | 47cm | 50cm | 51.5cm | 53cm | 54cm | 55cm | 56cm | 57.5cm | 59.5cm | 62cm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.43 mm | 1.42 mm | 1.43 mm | 1.41 mm | 1.41 mm | 1.4 mm | 1.43 mm | 1.45 mm | 1.46 mm | 1.48 mm | 1.56 mm | 1.59 mm |
| Stack | 496.3 mm | 504 mm | 515.6 mm | 528.2 mm | 523.4 mm | 530.3 mm | 534.6 mm | 549.2 mm | 559.6 mm | 568.2 mm | 582.8 mm | 611.3 mm | 649.7 mm |
| Reach | 346.9 mm | 352.3 mm | 362.8 mm | 368.5 mm | 370.1 mm | 376 mm | 381.3 mm | 383 mm | 386.8 mm | 388.7 mm | 394.7 mm | 391.3 mm | 408.1 mm |
| Top Tube Length | 496 mm | 501 mm | 513 mm | 523 mm | 523 mm | 533 mm | 543 mm | 548 mm | 555 mm | 563 mm | 573 mm | 585 mm | 618 mm |
| Seat Tube Angle | 74.4 ° | 74.4 ° | 74.4 ° | 74 ° | 74 ° | 73.7 ° | 73.7 ° | 73.4 ° | 73.4 ° | 73 ° | 73 ° | 72.4 ° | 72 ° |
| Seat Tube Length | 415 mm | 435 mm | 455 mm | 455 mm | 480 mm | 495 mm | 510 mm | 520 mm | 530 mm | 540 mm | 555 mm | 575 mm | 615 mm |
| Head Tube Angle | 69.15 ° | 71 ° | 70.5 ° | 71.4 ° | 71.4 ° | 72 ° | 72.5 ° | 72.8 ° | 72.8 ° | 73.2 ° | 73.7 ° | 73.4 ° | 73.4 ° |
| Head Tube Length | 94 mm | 99 mm | 104 mm | 114 mm | 109 mm | 114 mm | 123 mm | 131 mm | 142 mm | 149.5 mm | 163 mm | 199 mm | 239 mm |
| Chainstay Length | 404 mm | 404 mm | 404 mm | 404 mm | 404 mm | 404 mm | 404 mm | 404 mm | 406 mm | 406 mm | 406 mm | 406 mm | 409 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
Dogma F12 Frameset completes the Pinarello Dogma model. Pinarello launched 171 frames of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
The most economical model, the Pinarello Dogma F10 Disk Frameset 2019 has a starting price of 4999$. Pinarello Dogma FS Frameset 2019 on the other hand is the most expensive at 10000$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Race frames average price
Our math shows that the average cost of a dependable Race frame is 2445$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6500$. If we compare this with the average Race frame cost we notice that the price is 165.85% more expensive.
Dogma F12 Frameset components
Fork material
When it comes to the fork, this frame has a carbon one, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
