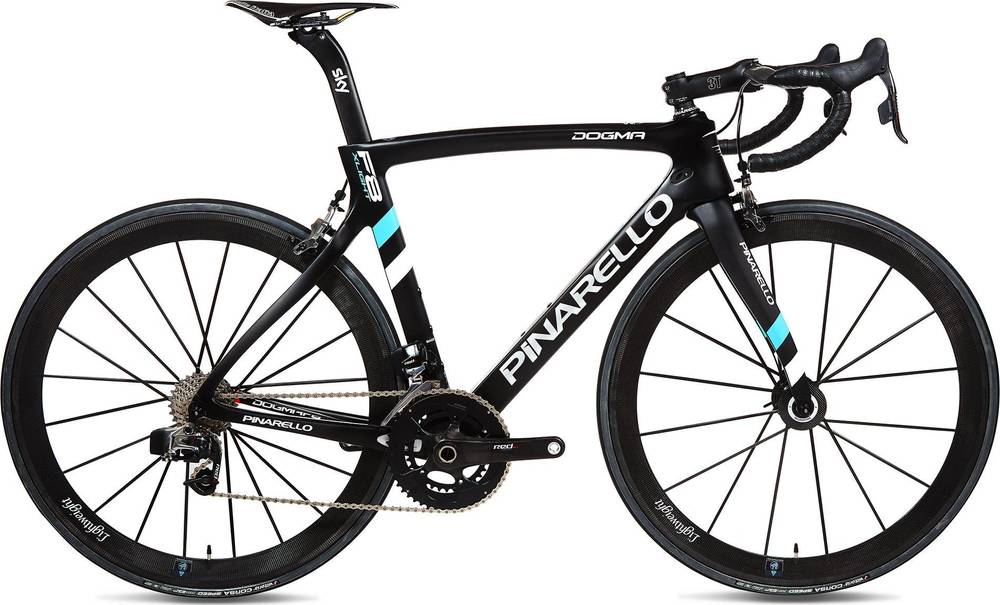

Pinarello Dogma F8 Xlight eTap Bike 2019
2019 Road
Estimate price |
17,199$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset RED eTAP, RED 22 -
Suspension Rigid -
Drivetrain Electronic -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Torayca T1100 1K Dream Carbon
Suspension Fork
Onda F8 Xlight Flatback Asymmetric 1 1/8" - 1 1/2"
Drivetrain
Rear Derailleur
SRAM Red eTap
Front Derailleur
SRAM Red eTap
Shift Levers
SRAM Red eTap
Cassette
SRAM XG-1190
Crank
SRAM Red 22 GXP
Bottom Bracket
CeramicSpeed Ceramic Threaded to GXP
Chain
SRAM Red 22
Pedals
Not Included
Wheels
Rims
Lightweight Meilenstein Clincher
Tires
Vittoria Corsa Speed G+
Brakes
Brakes
SRAM Red
Cockpit
Stem
3T ARX Ltd Stealth
Handlebar
3T Aeronova LTD Stealth
Headset
Pinarello 1 1/8" - 1 1/2"
Seat
Saddle
Selle Italia SLR Tekno
Seatpost
Pinarello Dogma F8 Xlight Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 44cm | 46.5cm | 50cm | 51.5cm | 53cm | 54cm | 55cm | 56cm | 57.5cm | 59.5cm | 62cm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.4 mm | 1.39 mm | 1.39 mm | 1.38 mm | 1.4 mm | 1.42 mm | 1.44 mm | 1.45 mm | 1.47 mm | 1.55 mm | 1.58 mm |
| Stack | 496 mm | 504 mm | 515 mm | 523 mm | 530 mm | 545 mm | 553 mm | 564 mm | 572 mm | 587 mm | 615 mm | 654 mm |
| Reach | 354 mm | 360 mm | 370 mm | 377 mm | 383 mm | 389 mm | 389 mm | 392 mm | 394 mm | 400 mm | 397 mm | 413 mm |
| Top Tube Length | 501 mm | 506 mm | 518 mm | 528 mm | 538 mm | 548 mm | 553 mm | 560 mm | 568 mm | 578 mm | 590 mm | 623 mm |
| Seat Tube Angle | 74.4 ° | 74.4 ° | 74.4 ° | 74 ° | 73.7 ° | 73.7 ° | 73.4 ° | 73.4 ° | 73 ° | 73 ° | 72.4 ° | 72 ° |
| Seat Tube Length | 420 mm | 440 mm | 465 mm | 500 mm | 515 mm | 530 mm | 540 mm | 550 mm | 560 mm | 575 mm | 595 mm | 620 mm |
| Head Tube Angle | 69.2 ° | 70 ° | 70.5 ° | 71.4 ° | 72 ° | 72.5 ° | 72.8 ° | 72.8 ° | 73.2 ° | 73.7 ° | 73.4 ° | 73.4 ° |
| Head Tube Length | 105 mm | 110 mm | 115 mm | 120 mm | 125 mm | 139 mm | 147 mm | 158 mm | 165 mm | 179 mm | 215 mm | 255 mm |
| Chainstay Length | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm | 411 mm | 411 mm | 411 mm | 411 mm | 414 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
Dogma F8 Xlight eTap Bike is part of the Pinarello Dogma model. Pinarello launched 171 bikes of this model so far. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Pinarello Dogma F10 Rim Ultegra Di2 Bike 2019 is the most economical model, with a starting price of 6600$. Pinarello Dogma F8 Xlight Dura-Ace Di2 Bike 2019 on the other hand costs 17499$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Race bikes average price
Our math shows that the average cost of a dependable Race bike is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Pinarello released this model in 2019, its price was 17199$. Comparing the average cost of a Race bike to this one, you will see that Dogma F8 Xlight eTap Bike price is 413.4% higher.
Dogma F8 Xlight eTap Bike components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, Pinarello Dogma F8 Xlight eTap Bike 2019, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Pinarello Dogma F8 Xlight eTap Bike is equipped with Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
