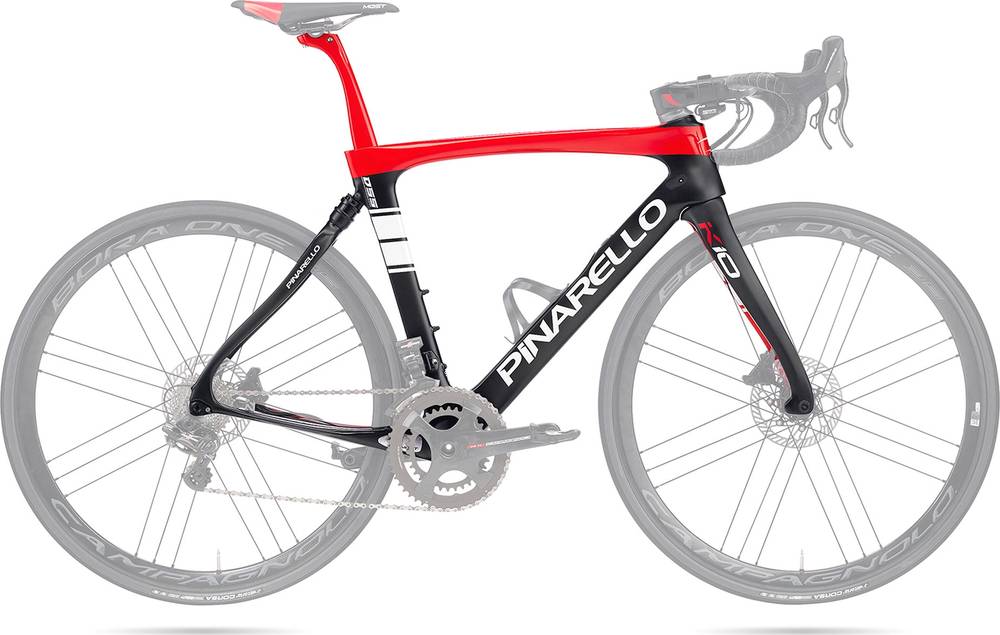

Pinarello Dogma K10S Disk Frameset 2020
2020 Road
Estimate price |
6,600$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Torayca T1100 UD Dream Carbon, 142x12 Thru-Axle
Suspension Fork
Onda K10 T1100 Carbon, 1 1/8"-1 1/2", 100x12 Thru-Axle
Drivetrain
Bottom Bracket
Italian Threaded, 70mm
Cockpit
Headset
Integrated, 1 1/8"-1 1/2"
Seat
Seatpost
Air 8 Aero Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 46.5cm | 50cm | 51.5cm | 53cm | 54cm | 55cm | 56cm | 57.5cm | 59.5cm |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.42 mm | 1.42 mm | 1.41 mm | 1.43 mm | 1.45 mm | 1.47 mm | 1.48 mm | 1.5 mm | 1.58 mm |
| Stack | 514 mm | 526 mm | 534 mm | 541 mm | 556 mm | 565 mm | 575 mm | 583 mm | 599 mm | 627 mm |
| Reach | 359 mm | 370 mm | 377 mm | 383 mm | 389 mm | 389 mm | 392 mm | 394 mm | 400 mm | 397 mm |
| Top Tube Length | 509 mm | 521 mm | 531 mm | 541 mm | 551 mm | 556 mm | 563 mm | 571 mm | 581 mm | 593 mm |
| Seat Tube Angle | 74.4 ° | 74.4 ° | 74 ° | 73.7 ° | 73.7 ° | 73.4 ° | 73.4 ° | 73 ° | 73 ° | 72.4 ° |
| Seat Tube Length | 440 mm | 465 mm | 500 mm | 515 mm | 530 mm | 540 mm | 550 mm | 560 mm | 575 mm | 595 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70.9 ° | 71.5 ° | 72 ° | 72.3 ° | 72.3 ° | 72.7 ° | 73.2 ° | 72.9 ° |
| Head Tube Length | 115 mm | 120 mm | 125 mm | 130 mm | 144 mm | 152 mm | 163 mm | 170 mm | 184 mm | 220 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm | 421 mm | 421 mm | 421 mm | 421 mm | 421 mm | 421 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
Dogma K10S Disk Frameset is a Pinarello Dogma model. 171 frames variations carry this model name so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
The most economical model, the Pinarello Dogma 60.1 Frameset 2020 has a starting price of 5500$. Pinarello Dogma FS Frameset 2020 on the other hand is the most expensive at 10000$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Race frames average price
If you want an acceptable Race frame you should know that the average price is 2445$. However, even if your budget is less than the average, you might still be able to get a top-quality Race frame. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Pinarello Dogma K10S Disk Frameset price was 6600$. In conclusion, this frame price is 169.94% higher than the price of the average Race frame.
Dogma K10S Disk Frameset components
Fork material
The fork on this frame is made out of carbon, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
