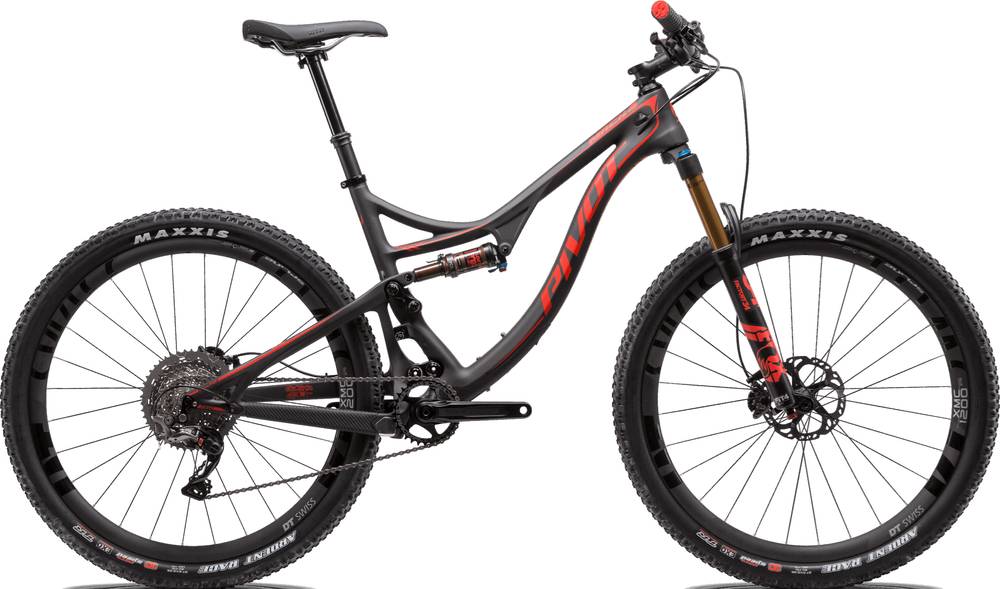

Pivot Mach 4 Carbon Pro X01 XC Race 2020
2020 Mountain
Estimate price |
6,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 27.5" -
Travel Front 100mm -
Fork Fox Factory Float 32
-
Groupset X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 162cm
SM
162cm - 172cm
MD
172cm - 180cm
LG
180cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mach 4 Carbon
Suspension Fork
Fox Factory Stepcast 32 27.5", 44mm offset, FIT4 - 100mm
Rear Shock
Fox Factory Float DPS
Drivetrain
Rear Derailleur
SRAM X01 Eagle 12-Speed
Shift Levers
SRAM X01 Eagle 12-Speed
Cassette
SRAM XG-1275 10-50t
Crank
SRAM X01 Eagle DUB 32t
Chain
SRAM X01 Eagle 12-Speed
Wheels
Rims
DT Swiss M1700 w/ DT Swiss 350 hub & 36T Star Ratchet 25mm - 27.5"
Tires
Maxxis Ikon 27.5" x 2.2" TR, EXO, 60 TPI Maxxis Ikon 27.5" x 2.2" TR, EXO, 60 TPI
Brakes
Brakes
SRAM Level TLM 2-piston
Disk Rotors
SRAM Centerline CenterLock - 160mmSRAM Centerline CenterLock - 160mm
Cockpit
Stem
Phoenix Team XC/Trail
Handlebar
Phoenix Team Flat Carbon
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge - Race
Seat
Saddle
Phoenix WTB Pro Volt
Seatpost
Phoenix Pro Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | LL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.4 mm | 1.35 mm | 1.34 mm | 1.29 mm |
| Bottom Bracket Height | 325 mm | 325 mm | 325 mm | 325 mm | 325 mm |
| Stack | 552 mm | 571 mm | 577 mm | 589 mm | 599 mm |
| Reach | 394 mm | 408 mm | 426 mm | 441 mm | 466 mm |
| Top Tube Length | 557 mm | 585 mm | 605 mm | 624 mm | 647 mm |
| Seat Tube Angle | 73.8 ° | 73.25 ° | 73.25 ° | 73.25 ° | 73.6 ° |
| Seat Tube Length | 368 mm | 406 mm | 445 mm | 483 mm | mm |
| Head Tube Angle | 68.5 ° | 69.2 ° | 69.2 ° | 69.2 ° | 69.5 ° |
| Head Tube Length | 85 mm | 102 mm | 108 mm | 120 mm | 130 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1074 mm | 1087 mm | 1107 mm | 1124 mm | 1152 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 664 mm | 669 mm | 671 mm | 688 mm | 695 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 162 cm | 172 cm | 180 cm | cm |
| Rider Max Height | 162 cm | 172 cm | 180 cm | 188 cm | cm |
Model Overview
Mach 4 Carbon Pro X01 XC Race is a Pivot Mach 4 model. 180 bikes variations carry this model name so far. You can easily view all of the Pivot Mach 4 bikes models from 2020, here.
Model range prices
The most economical model, the Pivot Mach 4 Carbon Race XT 2020 has a starting price of 4899$. Pivot Mach 4 SL Team XX1 AXS w/ 120mm Fork & Fox Live Valve 2020 on the other hand is the most expensive at 11999$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Pivot Mach 4 Carbon Pro X01 XC Race price was 6499$. Comparing this to the average Crosscountry bike price, we see that the price is 241.15% higher.
Overview of components
Fork
This bike has the Fox Factory Float 32 fork installed. The fork’s travel is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on Mach 4 Carbon Pro X01 XC Race are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Pivot Mach 4 Carbon Pro X01 XC Race has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
