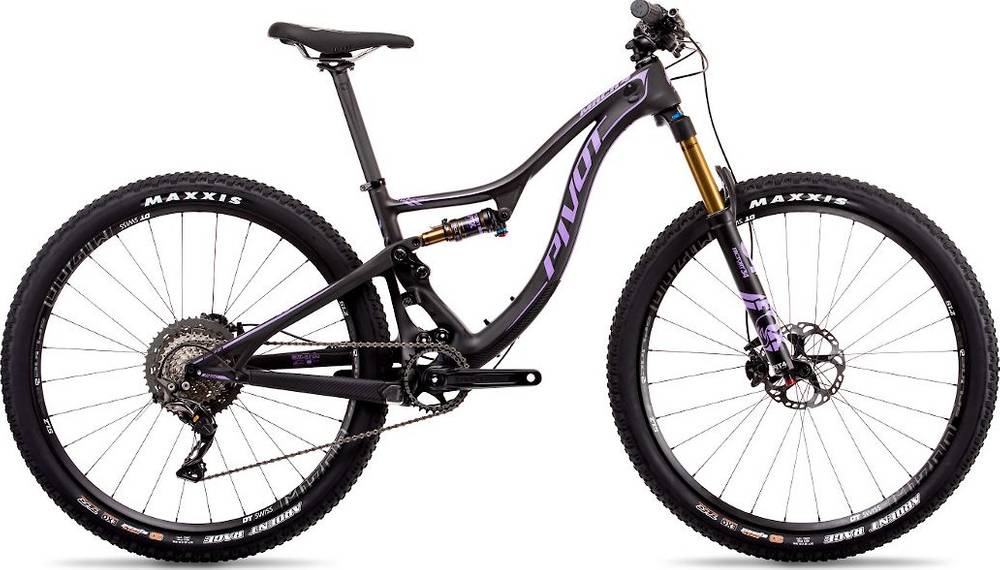

Pivot Mach 4 Carbon PRO XT/XTR 1x 2018
2018 Mountain
Estimate price |
5,699$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 115mm -
Fork Fox Factory Float 34
-
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 188cm
LG
179cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 34 Factory, Boost
Rear Shock
FOX Float Factory DPS, Kashima
Drivetrain
Rear Derailleur
Shimano XTR, 11-speed GS
Front Derailleur
N/A
Shift Levers
Shimano XT, 11-speed
Cassette
Shimano XT M8000, 11-46 tooth, 11-speed
Crank
Race Face Aeffect SL
Bottom Bracket
PF92
Chain
Shimano, 11-speed
Chain Guide
N/A
Pedals
None included
Wheels
Front Hub
DT Swiss M1700, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
Rear Hub
DT Swiss M1700, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
Rims
DT Swiss M1700
Spokes
DT Swiss
Tires
Front: Maxxis High Roller II, 2.3” TR EXO 3C MaxxTerra, Rear: Maxxis Ardent Race, 2.35" TR 3C EXO MaxxSpeed 120 TPI
Brakes
Brakes
Shimano XT M8000
Brake Levers
Shimano XT M8000
Cockpit
Stem
Phoenix Team XC, 35mm clamp, 60mm length (XS, S), 75mm length (M, L, L/Long)
Handlebar
Phoenix Team, carbon, 35mm clamp, 740mm width
Grips
Phoenix Team Padloc
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Volt Pro
Seatpost
Phoenix Pro Carbon (FOX Transfer upgrade available)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.4 mm | 1.35 mm | 1.34 mm | 1.28 mm |
| Bottom Bracket Height | 325.1 mm | 325.1 mm | 325.1 mm | 325.1 mm | 325.1 mm |
| Stack | 552.2 mm | 571.3 mm | 577.4 mm | 589.3 mm | 599.2 mm |
| Reach | 394.2 mm | 408.2 mm | 426.2 mm | 441.2 mm | 466.4 mm |
| Top Tube Length | 557.3 mm | 585.2 mm | 605.6 mm | 624.6 mm | 647.5 mm |
| Seat Tube Angle | 73.8 ° | 73 ° | 73 ° | 73 ° | 73.4 ° |
| Seat Tube Length | 368.3 mm | 406.4 mm | 444.5 mm | 482.6 mm | 508 mm |
| Head Tube Angle | 68.5 ° | 69.2 ° | 69.2 ° | 69.2 ° | 69.5 ° |
| Head Tube Length | 85.1 mm | 101.6 mm | 107.9 mm | 119.9 mm | 130 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1074 mm | 1087 mm | 1107 mm | 1124 mm | 1152 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 664 mm | 669 mm | 671 mm | 688 mm | 695 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 179 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 188 cm | 188 cm |
Model Overview
Mach 4 Carbon PRO XT/XTR 1x is part of the Pivot Mach 4 model. Pivot released 180 bikes variations of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
The most economical model, the Pivot Mach 4 Carbon RACE XT 1x 2018 has a starting price of 4599$. Pivot Mach 4 Carbon TEAM XTR Di2 2x 2018 on the other hand is the most expensive at 9499$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Pivot released this model in 2018, its price was 5699$. In conclusion, this bike price is 199.16% more expensive than the price of the average Crosscountry bike.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 34 model. The travel on this model is 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The Mach 4 Carbon PRO XT/XTR 1x has a rear shock with a travel of 115mm. The model FOX Float Factory DPS is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
The wheels on Mach 4 Carbon PRO XT/XTR 1x are the 27.5″ aluminum type. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Pivot Mach 4 Carbon PRO XT/XTR 1x is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Pivot Mach 4 Carbon PRO XT/XTR 1x bike has 5 sizes, in the range of 147 cm – 188 cm (4.82 ft – 6.17 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
