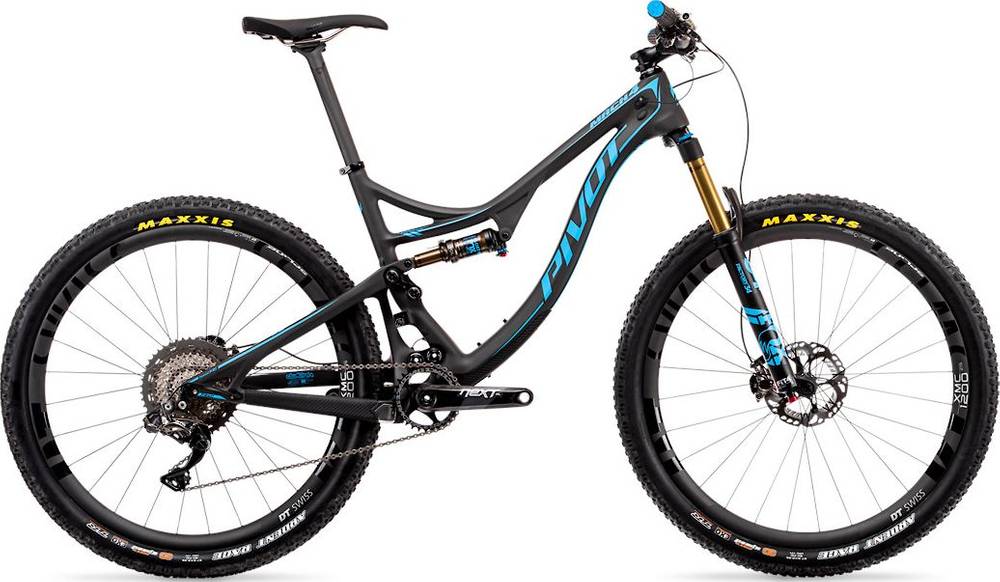

Pivot Mach 4 Carbon TEAM XTR 1x XC Race 2018
2018 Mountain
Estimate price |
7,799$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 27.5" -
Travel Front 100mm -
Travel Rear 115mm -
Fork Fox Factory Float 32
-
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 188cm
LG
179cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 32 Factory Stepcast, Boost
Rear Shock
FOX Float Factory DPS, Kashima
Drivetrain
Rear Derailleur
Shimano XTR, 11-speed GS
Front Derailleur
N/A
Shift Levers
Shimano XTR, 11-speed
Cassette
Shimano XTR M8000, 11-40 tooth, 11-speed
Crank
Race Face Next SL
Bottom Bracket
PF92
Chain
Shimano, 11-speed
Chain Guide
N/A
Pedals
None included
Wheels
Front Hub
DT Swiss XMC 1200, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
Rear Hub
DT Swiss XMC 1200, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
Rims
DT Swiss XMC 1200
Spokes
DT Swiss
Tires
Maxxis Ikon, 2.2" TR 3C EXO MaxxSpeed 120 TPI
Brakes
Brakes
Shimano XTR Trail M9020
Brake Levers
Shimano XTR Trail M9020
Cockpit
Stem
Phoenix Team XC, 35mm clamp, 60mm length (XS, S), 75mm length (M, L, L/Long)
Handlebar
Phoenix Team Flat, carbon, 35mm clamp, 760mm width
Grips
Phoenix Team Padloc
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Volt Team
Seatpost
Phoenix Team Carbon (FOX Transfer upgrade available)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.4 mm | 1.35 mm | 1.34 mm | 1.28 mm |
| Bottom Bracket Height | 325.1 mm | 325.1 mm | 325.1 mm | 325.1 mm | 325.1 mm |
| Stack | 552.2 mm | 571.3 mm | 577.4 mm | 589.3 mm | 599.2 mm |
| Reach | 394.2 mm | 408.2 mm | 426.2 mm | 441.2 mm | 466.4 mm |
| Top Tube Length | 557.3 mm | 585.2 mm | 605.6 mm | 624.6 mm | 647.5 mm |
| Seat Tube Angle | 73.8 ° | 73 ° | 73 ° | 73 ° | 73.4 ° |
| Seat Tube Length | 368.3 mm | 406.4 mm | 444.5 mm | 482.6 mm | 508 mm |
| Head Tube Angle | 68.5 ° | 69.2 ° | 69.2 ° | 69.2 ° | 69.5 ° |
| Head Tube Length | 85.1 mm | 101.6 mm | 107.9 mm | 119.9 mm | 130 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1074 mm | 1087 mm | 1107 mm | 1124 mm | 1152 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 664 mm | 669 mm | 671 mm | 688 mm | 695 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 179 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 188 cm | 188 cm |
Model Overview
Mach 4 Carbon TEAM XTR 1x XC Race is a Pivot Mach 4 model. 180 bikes variations carry this model name so far. Take a sneak peek at all Pivot Mach 4 bikes models from 2018, by clicking here.
Model range prices
Pivot Mach 4 Carbon RACE XT 1x 2018 is the cheapest bike model and costs 4599$. Pivot Mach 4 Carbon TEAM XTR Di2 2x 2018 is the most expensive one and costs 9499$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Pivot released this model in 2018, its price was 7799$. Comparing this to the average Crosscountry bike price, we see that the price is 309.4% more expensive.
Mach 4 Carbon TEAM XTR 1x XC Race components
Fork
Pivot Mach 4 Carbon TEAM XTR 1x XC Race 2018 bike is equipped with the Fox Factory Float 32 fork, and has 100mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the FOX Float Factory DPS rear shock model, which has a travel of 115mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The Mach 4 Carbon TEAM XTR 1x XC Race 2018 bike is equipped with 27.5″ carbon wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Mach 4 Carbon TEAM XTR 1x XC Race comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Mach 4 Carbon TEAM XTR 1x XC Race comes in 5 sizes, that range from 147 cm – 188 cm (4.82 ft – 6.17 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The Pivot model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
