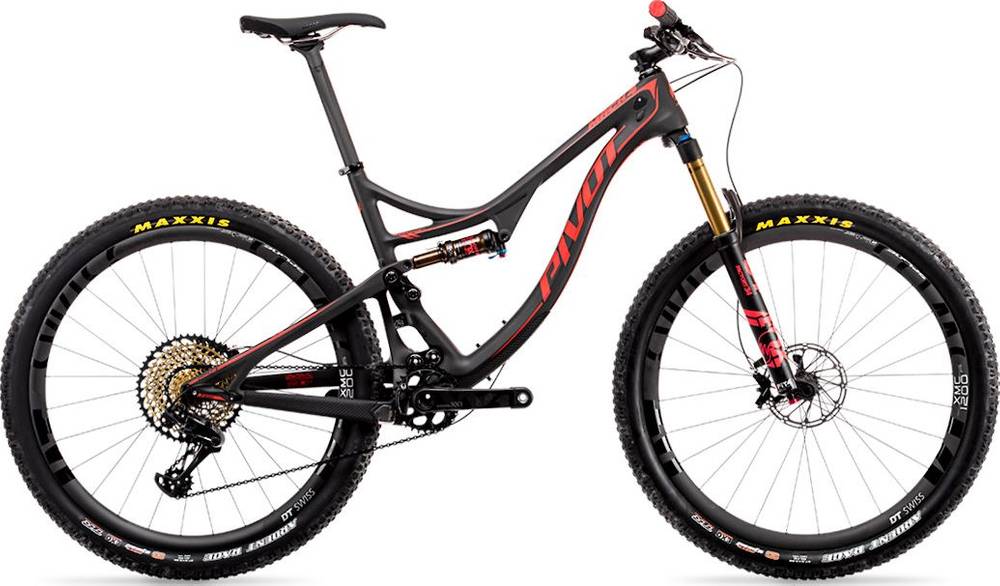

Pivot Mach 4 Carbon TEAM XTR 2x 2018
2018 Mountain
Estimate price |
8,299$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 27.5" -
Travel Front 130mm -
Travel Rear 115mm -
Fork Fox Factory Float 34
-
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 188cm
LG
179cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 34 Factory, Boost
Rear Shock
FOX Float Factory DPS, Kashima
Drivetrain
Rear Derailleur
Shimano XTR, 11-speed GS
Front Derailleur
Shimano XTR, E-Type, side swing
Shift Levers
Shimano XTR, 11-speed
Cassette
Shimano XTR M9000, 11-40 tooth, 11-speed
Crank
Race Face Next SL
Bottom Bracket
PF92
Chain
Shimano, 11-speed
Chain Guide
N/A
Pedals
None included
Wheels
Front Hub
DT Swiss XMC 1200, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
Rear Hub
DT Swiss XMC 1200, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
Rims
DT Swiss XMC 1200
Spokes
DT Swiss
Tires
Front: Maxxis High Roller II, 2.3” TR EXO 3C MaxxTerra, Rear: Maxxis Ardent Race, 2.35" TR 3C EXO MaxxSpeed 120 TPI
Brakes
Brakes
Shimano XTR Trail M9020
Brake Levers
Shimano XTR Trail M9020
Cockpit
Stem
Phoenix Team XC, 35mm clamp, 60mm length (XS, S), 75mm length (M, L, L/Long)
Handlebar
Phoenix Team, carbon, 35mm clamp, 740mm width
Grips
Phoenix Team Padloc
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Volt Team
Seatpost
Phoenix Team Carbon (FOX Transfer upgrade available)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.4 mm | 1.35 mm | 1.34 mm | 1.28 mm |
| Bottom Bracket Height | 325.1 mm | 325.1 mm | 325.1 mm | 325.1 mm | 325.1 mm |
| Stack | 552.2 mm | 571.3 mm | 577.4 mm | 589.3 mm | 599.2 mm |
| Reach | 394.2 mm | 408.2 mm | 426.2 mm | 441.2 mm | 466.4 mm |
| Top Tube Length | 557.3 mm | 585.2 mm | 605.6 mm | 624.6 mm | 647.5 mm |
| Seat Tube Angle | 73.8 ° | 73 ° | 73 ° | 73 ° | 73.4 ° |
| Seat Tube Length | 368.3 mm | 406.4 mm | 444.5 mm | 482.6 mm | 508 mm |
| Head Tube Angle | 68.5 ° | 69.2 ° | 69.2 ° | 69.2 ° | 69.5 ° |
| Head Tube Length | 85.1 mm | 101.6 mm | 107.9 mm | 119.9 mm | 130 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1074 mm | 1087 mm | 1107 mm | 1124 mm | 1152 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 664 mm | 669 mm | 671 mm | 688 mm | 695 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 179 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 188 cm | 188 cm |
About this model
Mach 4 Carbon TEAM XTR 2x is a Pivot Mach 4 model. 180 bikes variations carry this model name so far. Take a sneak peek at all Pivot Mach 4 bikes models from 2018, by clicking here.
Model range prices
Pivot Mach 4 Carbon RACE XT 1x 2018 is the cheapest bike model and costs 4599$. Pivot Mach 4 Carbon TEAM XTR Di2 2x 2018 is the most expensive one and costs 9499$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
When Pivot released this model in 2018, its price was 8299$. In conclusion, this bike price is 335.64% higher than the price of the average Crosscountry bike.
Mach 4 Carbon TEAM XTR 2x components
Fork
The Fox Factory Float 34 is included from the factory. It has a travel distance of 130mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The Mach 4 Carbon TEAM XTR 2x has a rear shock with a travel of 115mm. The model FOX Float Factory DPS is the one installed in this bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The Mach 4 Carbon TEAM XTR 2x 2018 bike is equipped with 27.5″ carbon wheels when leaving the factory. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Pivot Mach 4 Carbon TEAM XTR 2x is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 147 cm – 188 cm (4.82 ft – 6.17 ft). In short, you can easily find one that suits you.
Dropper post
Pivot Mach 4 Carbon TEAM XTR 2x comes with a dropper post. Therefore, climbing or descending will be a breeze.
