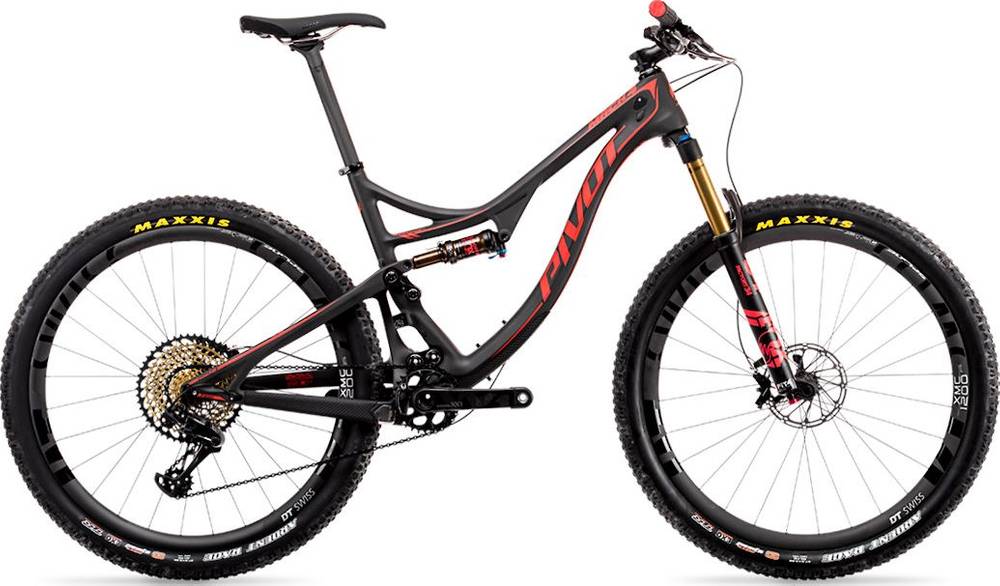

Pivot Mach 4 Carbon TEAM XTR Di2 1x XC Race 2018
2018 Mountain
Estimate price |
8,799$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 27.5" -
Travel Front 100mm -
Travel Rear 115mm -
Fork Fox Factory Float 32
-
Groupset XTR Di2, Race Face -
Suspension Full -
Drivetrain 1 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 188cm
LG
179cm - 188cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 32 Factory Stepcast, Boost
Rear Shock
FOX Float Factory DPS, Kashima
Drivetrain
Rear Derailleur
Shimano XTR Di2, 11-speed GS
Front Derailleur
N/A
Shift Levers
Shimano XTR Di2, 11-speed
Cassette
Shimano XTR M8000, 11-46 tooth, 11-speed
Crank
Race Face Next SL
Bottom Bracket
PF92
Chain
Shimano, 11-speed
Chain Guide
N/A
Pedals
None included
Wheels
Front Hub
DT Swiss XMC 1200, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
Rear Hub
DT Swiss XMC 1200, Front: Boost, 15mm x 110mm, Rear: Boost, 12mm x 148mm
Rims
DT Swiss XMC 1200
Spokes
DT Swiss
Tires
Maxxis Ikon, 2.2" TR 3C EXO MaxxSpeed 120 TPI
Brakes
Brakes
Shimano XTR Trail M9020
Brake Levers
Shimano XTR Trail M9020
Cockpit
Stem
Phoenix Team XC, 35mm clamp, 60mm length (XS, S), 75mm length (M, L, L/Long)
Handlebar
Phoenix Team Flat, carbon, 35mm clamp, 760mm width
Grips
Phoenix Team Padloc
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Volt Team
Seatpost
Phoenix Team Carbon (FOX Transfer upgrade available)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | LG |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.4 mm | 1.35 mm | 1.34 mm | 1.28 mm |
| Bottom Bracket Height | 325.1 mm | 325.1 mm | 325.1 mm | 325.1 mm | 325.1 mm |
| Stack | 552.2 mm | 571.3 mm | 577.4 mm | 589.3 mm | 599.2 mm |
| Reach | 394.2 mm | 408.2 mm | 426.2 mm | 441.2 mm | 466.4 mm |
| Top Tube Length | 557.3 mm | 585.2 mm | 605.6 mm | 624.6 mm | 647.5 mm |
| Seat Tube Angle | 73.8 ° | 73 ° | 73 ° | 73 ° | 73.4 ° |
| Seat Tube Length | 368.3 mm | 406.4 mm | 444.5 mm | 482.6 mm | 508 mm |
| Head Tube Angle | 68.5 ° | 69.2 ° | 69.2 ° | 69.2 ° | 69.5 ° |
| Head Tube Length | 85.1 mm | 101.6 mm | 107.9 mm | 119.9 mm | 130 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1074 mm | 1087 mm | 1107 mm | 1124 mm | 1152 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 664 mm | 669 mm | 671 mm | 688 mm | 695 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 179 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 188 cm | 188 cm |
Model Overview
Mach 4 Carbon TEAM XTR Di2 1x XC Race is part of the Pivot Mach 4 model. 180 bikes variations carry this model name so far. You can easily view all of the Pivot Mach 4 bikes models from 2018, here.
Model range prices
Pivot Mach 4 Carbon RACE XT 1x 2018 is the most economical model, with a starting price of 4599$. Pivot Mach 4 Carbon TEAM XTR Di2 2x 2018 on the other hand costs 9499$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2018 and its price was 8799$. Comparing this to the average Crosscountry bike price, we see that the price is 361.89% more expensive.
Overview of components
Fork
This bike has the Fox Factory Float 32 fork installed. The fork’s travel is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Pivot Mach 4 Carbon TEAM XTR Di2 1x XC Race bike has the FOX Float Factory DPS model installed, and has a travel of 115mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
As for the wheels, Pivot Mach 4 Carbon TEAM XTR Di2 1x XC Race 2018, has a 27.5″ carbon model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Pivot Mach 4 Carbon TEAM XTR Di2 1x XC Race has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Pivot Mach 4 Carbon TEAM XTR Di2 1x XC Race bike has 5 sizes, in the range of 147 cm – 188 cm (4.82 ft – 6.17 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Pivot Mach 4 Carbon TEAM XTR Di2 1x XC Race includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
