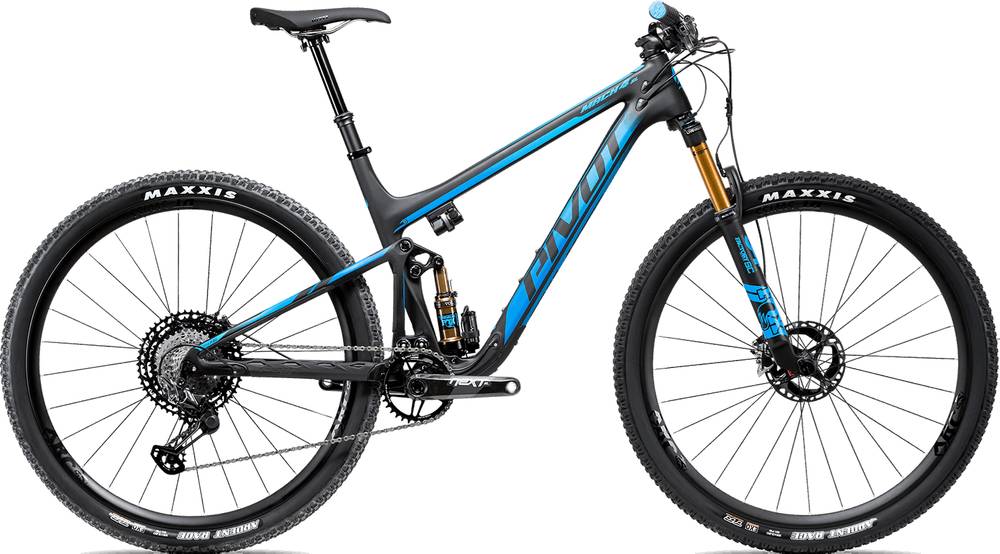

Pivot Mach 4 SL Team XTR w/ 120mm Fork 2020
2020 Mountain
Estimate price |
8,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Fork Fox Factory Float 34
-
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mach 4 SL
Suspension Fork
Fox Factory Stepcast 34 29" w/ Remote, 44mm offset - 120mm
Rear Shock
Fox Factory DPS w/ Remote
Drivetrain
Rear Derailleur
Shimano XTR SGS 12-Speed
Shift Levers
Shimano XTR M9100 12-Speed
Cassette
Shimano XTR M9100 10-51t
Crank
Race Face Next SL 34t
Chain
Shimano CN-M9100 12-Speed
Wheels
Rims
DT Swiss XRC 1200 w/ DT Swiss 240 hub & 36t Star Ratchet, 25mm - 29"
Tires
Maxxis Ardent Race 29" x 2.2" TR, EXO, 120 TPIMaxxis Ardent Race 29" x 2.2" TR, EXO, 120 TPI
Brakes
Brakes
Shimano XTR M9100 2-Piston
Disk Rotors
Shimano XTR CenterLock - 160mmShimano XTR CenterLock - 160mm
Cockpit
Stem
Phoenix Team XC/Trail
Handlebar
Phoenix Team Flat Carbon
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Integrated Cartridge
Seat
Saddle
Phoenix WTB Team Volt
Seatpost
KS Rage-i 100mm (XS), Fox Transfer Performance Series 125mm (SM-LG), 150mm (XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.48 mm | 1.42 mm | 1.39 mm | 1.35 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm | 334 mm |
| Stack | 596 mm | 606 mm | 618 mm | 629 mm | 648 mm |
| Reach | 399 mm | 409 mm | 434 mm | 454 mm | 479 mm |
| Top Tube Length | 582 mm | 595 mm | 623 mm | 647 mm | 678 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 356 mm | 394 mm | 419 mm | 457 mm | 502 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 85 mm | 95 mm | 108 mm | 119 mm | 140 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1110 mm | 1123 mm | 1153 mm | 1177 mm | 1210 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 630 mm | 671 mm | 703 mm | 706 mm | 729 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
About this model
Mach 4 SL Team XTR w/ 120mm Fork completes the Pivot Mach 4 model. 180 bikes variations carry this model name so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
The most economical model, the Pivot Mach 4 Carbon Race XT 2020 has a starting price of 4899$. Pivot Mach 4 SL Team XX1 AXS w/ 100mm Fork & Fox Live Valve 2020 on the other hand is the most expensive at 11999$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Pivot released this model in 2020, its price was 8499$. If we compare this with the average Trail bike cost we notice that the price is 207.71% more expensive.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 34 model. The travel on this model is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The Mach 4 SL Team XTR w/ 120mm Fork 2020 bike is equipped with 29″ carbon wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. Pivot Mach 4 SL Team XTR w/ 120mm Fork has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 147 cm – 200 cm (4.82 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the Mach 4 SL Team XTR w/ 120mm Fork. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
