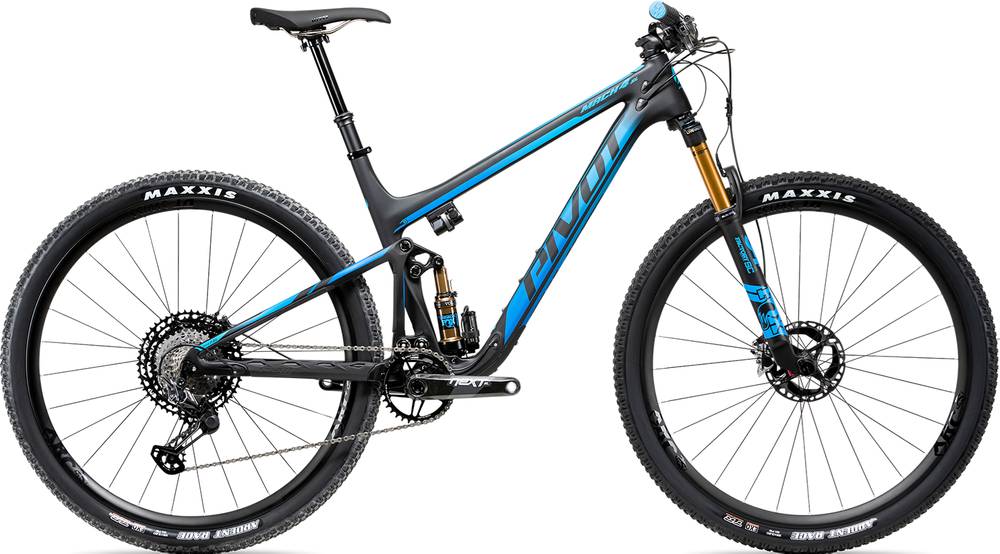

Pivot Mach 4 SL Team XTR w/ Fox Live Valve 2020
2020 Mountain
Estimate price |
10,399$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Fork Fox Factory Float 34
-
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mach 4 SL
Suspension Fork
Fox Factory Stepcast Live 34 29", 44mm offset, FIT LIVE - 120mm
Rear Shock
Fox Factory Live Valve
Drivetrain
Rear Derailleur
Shimano XTR M9100 SGS 12-Speed
Shift Levers
Shimano XTR M9100 ISPEC 12-Speed
Cassette
Shimano XTR M9100 10-51T
Crank
Race Face Next SL 34T
Chain
Shimano M9100 12-Speed
Wheels
Rims
DT Swiss XRC 1200 SPLINE w/ 36T star ratchet, 25mm - 29"
Tires
Maxxis Ardent Race 29" x 2.2" TR, EXO - w/ Stan's SealantMaxxis Ardent Race 29" x 2.2" TR, EXO - w/ Stan's Sealant
Brakes
Brakes
Shimano XTR M9100
Disk Rotors
Shimano XTR CenterLock - 160mmShimano XTR CenterLock - 160mm
Cockpit
Stem
Phoenix Team XC/Trail - 75mm
Handlebar
Phoenix Team Flat Carbon - 760mm
Grips
Phoenix Team Padloc
Headset
Pivot Precision Sealed Integrated Cartridge
Seat
Saddle
Phoenix WTB Team Volt
Seatpost
KS LEV 100mm (XS), Fox Transfer 125mm (SM-LG), Fox Transfer 150mm (XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.48 mm | 1.42 mm | 1.39 mm | 1.35 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm | 334 mm |
| Stack | 596 mm | 606 mm | 618 mm | 629 mm | 648 mm |
| Reach | 399 mm | 409 mm | 434 mm | 454 mm | 479 mm |
| Top Tube Length | 582 mm | 595 mm | 623 mm | 647 mm | 678 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 356 mm | 394 mm | 419 mm | 457 mm | 502 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 85 mm | 95 mm | 108 mm | 119 mm | 140 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1110 mm | 1123 mm | 1153 mm | 1177 mm | 1210 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 630 mm | 671 mm | 703 mm | 706 mm | 729 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
Mach 4 SL Team XTR w/ Fox Live Valve completes the Pivot Mach 4 model. Pivot launched 180 bikes of this model so far. Take a sneak peek at all Pivot Mach 4 bikes models from 2020, by clicking here.
Model range prices
Pivot Mach 4 Carbon Race XT 2020 is the most economical model, with a starting price of 4899$. Pivot Mach 4 SL Team XX1 AXS w/ 120mm Fork & Fox Live Valve 2020 on the other hand costs 11999$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 10399$. In conclusion, this bike price is 276.5% more expensive than the price of the average Trail bike.
Overview of components
Fork
The Fox Factory Float 34 is included from the factory. It has a travel distance of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
As for the wheels, Pivot Mach 4 SL Team XTR w/ Fox Live Valve 2020, has a 29″ carbon model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Pivot Mach 4 SL Team XTR w/ Fox Live Valve has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Mach 4 SL Team XTR w/ Fox Live Valve comes in 5 sizes, that range from 147 cm – 200 cm (4.82 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Pivot Mach 4 SL Team XTR w/ Fox Live Valve includes a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
