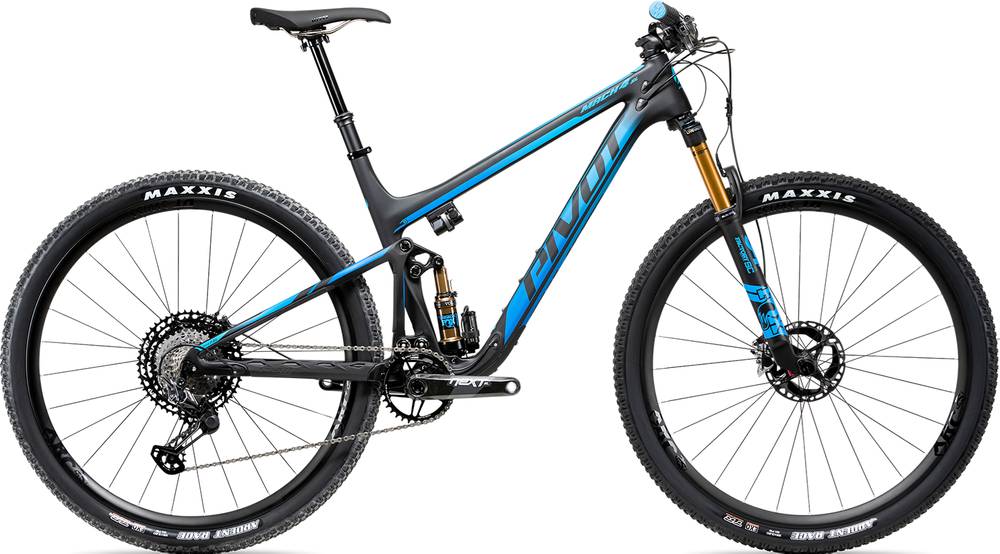

Pivot Mach 4 SL Team XX1 2020
2020 Mountain
Estimate price |
8,799$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Fork Fox Factory Float 34
-
Groupset XX1, XX1 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mach 4 SL
Suspension Fork
Fox Factory Stepcast 34 29" w/ Remote, 44mm offset - 120mm
Rear Shock
Fox Factory DPS w/ Remote
Drivetrain
Rear Derailleur
SRAM XX1 12-Speed
Shift Levers
SRAM XX1 12-Speed
Cassette
SRAM XX1 XG-1299 10-50T
Crank
SRAM XX1 Eagle DUB SL 32T
Chain
SRAM XX1 12-Speed
Wheels
Rims
DT Swiss XRC 1200 SPLINE w/ 36T star ratchet, 25mm - 29"
Tires
Maxxis Ardent Race 29" x 2.2" TR, EXO - w/ Stan's SealantMaxxis Ardent Race 29" x 2.2" TR, EXO - w/ Stan's Sealant
Brakes
Brakes
SRAM Guide Ultimate
Disk Rotors
SRAM CenterLine CenterLock - 160mmSRAM CenterLine CenterLock - 160mm
Cockpit
Stem
Phoenix Team XC/Trail - 75mm
Handlebar
Phoenix Team Flat Carbon - 760mm
Grips
Phoenix Team Padloc
Headset
Pivot Precision Sealed Integrated Cartridge
Seat
Saddle
Phoenix WTB Team Volt
Seatpost
KS Rage-i 100mm (XS), Fox Transfer 125mm (SM-LG), Fox Transfer 150mm (XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.48 mm | 1.42 mm | 1.39 mm | 1.35 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm | 334 mm | 334 mm |
| Stack | 596 mm | 606 mm | 618 mm | 629 mm | 648 mm |
| Reach | 399 mm | 409 mm | 434 mm | 454 mm | 479 mm |
| Top Tube Length | 582 mm | 595 mm | 623 mm | 647 mm | 678 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 356 mm | 394 mm | 419 mm | 457 mm | 502 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 85 mm | 95 mm | 108 mm | 119 mm | 140 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1110 mm | 1123 mm | 1153 mm | 1177 mm | 1210 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 630 mm | 671 mm | 703 mm | 706 mm | 729 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
Mach 4 SL Team XX1 is part of the Pivot Mach 4 model. 180 bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
The most economical model, the Pivot Mach 4 Carbon Race XT 2020 has a starting price of 4899$. Pivot Mach 4 SL Team XX1 AXS w/ 120mm Fork & Fox Live Valve 2020 on the other hand is the most expensive at 11999$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2020 and its price was 8799$. Comparing the average cost of a Trail bike to this one, you will see that Mach 4 SL Team XX1 price is 218.57% higher.
Overview of components
Fork
The Fox Factory Float 34 is included from the factory. It has a travel distance of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the Mach 4 SL Team XX1 model has 29″ carbon wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Mach 4 SL Team XX1 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 147 cm – 200 cm (4.82 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Pivot Mach 4 SL Team XX1 comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
