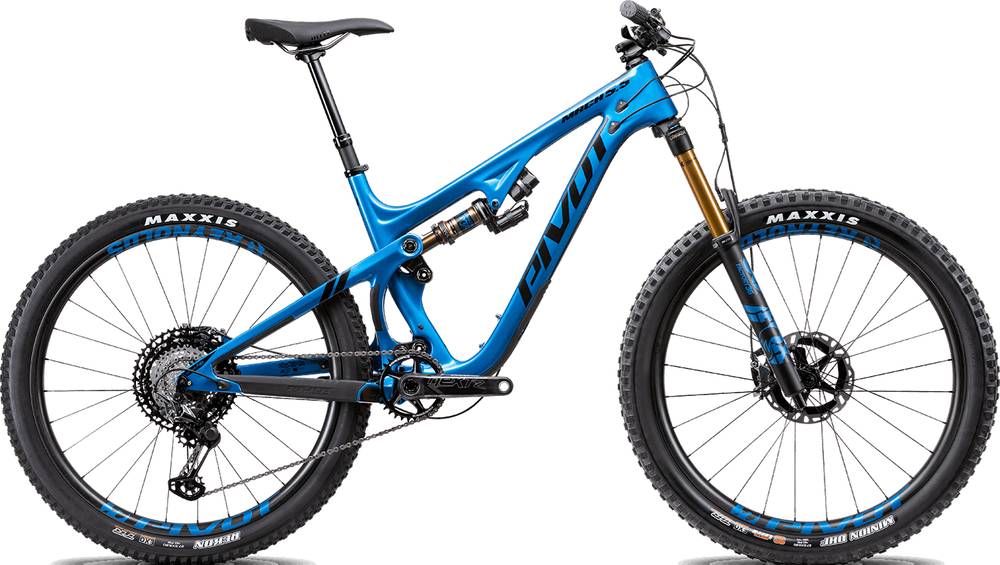

Pivot Mach 5.5 Carbon Pro XT/XTR w/ Fox Live Valve 2020
2020 Mountain
Estimate price |
8,599$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Fork Fox Factory Float 36
-
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mach 5.5
Suspension Fork
Fox Factory Live 36 27.5", 44mm offset, FIT LIVE - 160mm
Rear Shock
Fox Factory Live Valve
Drivetrain
Rear Derailleur
Shimano XTR SGS 12-Speed
Shift Levers
Shimano XT M8100 12-Speed
Cassette
Shimano XT M8100 10-51t
Crank
Race Face Æffect R 32t
Chain
Shimano CN-M8100 12-Speed
Wheels
Rims
DT Swiss M1700 w/ DT Swiss 350 hub & 36t Star Ratchet 35mm - 27.5"
Tires
Maxxis Minion DHF 27.5" x 2.6" TR, EXOMaxxis Rekon 27.5" x 2.6" TR, EXO
Brakes
Brakes
Shimano XT M8120 4-Piston
Disk Rotors
Shimano XT CenterLock - 180mmShimano XT CenterLock - 180mm
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Team Low Rise Carbon
Grips
Phoenix Team Padloc
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Pro High Tail Trail (XS, SM), Phoenix WTB Pro Vigo (MD-XL)
Seatpost
KS Rage-i 100mm (XS), 125mm (SM), 150mm (MD), Fox Transfer Performance Series 150mm (LG, XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.45 mm | 1.37 mm | 1.33 mm | 1.28 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm |
| Stack | 589 mm | 603 mm | 613 mm | 622 mm | 631 mm |
| Reach | 397 mm | 417 mm | 447 mm | 467 mm | 492 mm |
| Top Tube Length | 565 mm | 591 mm | 624 mm | 646 mm | 674 mm |
| Seat Tube Angle | 74.25 ° | 74.25 ° | 74.25 ° | 74.25 ° | 74.25 ° |
| Seat Tube Length | 356 mm | 394 mm | 426 mm | 457 mm | 495 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 90 mm | 105 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1123 mm | 1150 mm | 1184 mm | 1207 mm | 1236 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 693 mm | 697 mm | 698 mm | 699 mm | 718 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
About this model
Mach 5.5 Carbon Pro XT/XTR w/ Fox Live Valve completes the Pivot Mach 55 model. 77 bikes variations carry this model name so far. You can easily view all of the Pivot Mach 55 bikes models from 2020, here.
Model range prices
Pivot Mach 5.5 Carbon Race XT 2020 is the most economical model, with a starting price of 5499$. Pivot Mach 5.5 Carbon Team XX1 AXS w/ Fox Live Valve 2020 on the other hand costs 12199$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro bikes average price
Our math shows that the average cost of a dependable Enduro bike is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2020 for 8599$. Comparing the average cost of an Enduro bike to this one, you will see that Mach 5.5 Carbon Pro XT/XTR w/ Fox Live Valve price is 138.93% higher.
Mach 5.5 Carbon Pro XT/XTR w/ Fox Live Valve components
Fork
This bike has the Fox Factory Float 36 fork installed. The fork’s travel is 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When leaving the production line, the Mach 5.5 Carbon Pro XT/XTR w/ Fox Live Valve model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Mach 5.5 Carbon Pro XT/XTR w/ Fox Live Valve comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Mach 5.5 Carbon Pro XT/XTR w/ Fox Live Valve comes in 5 sizes, that range from 147 cm – 200 cm (4.82 ft – 6.56 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the Mach 5.5 Carbon Pro XT/XTR w/ Fox Live Valve. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
