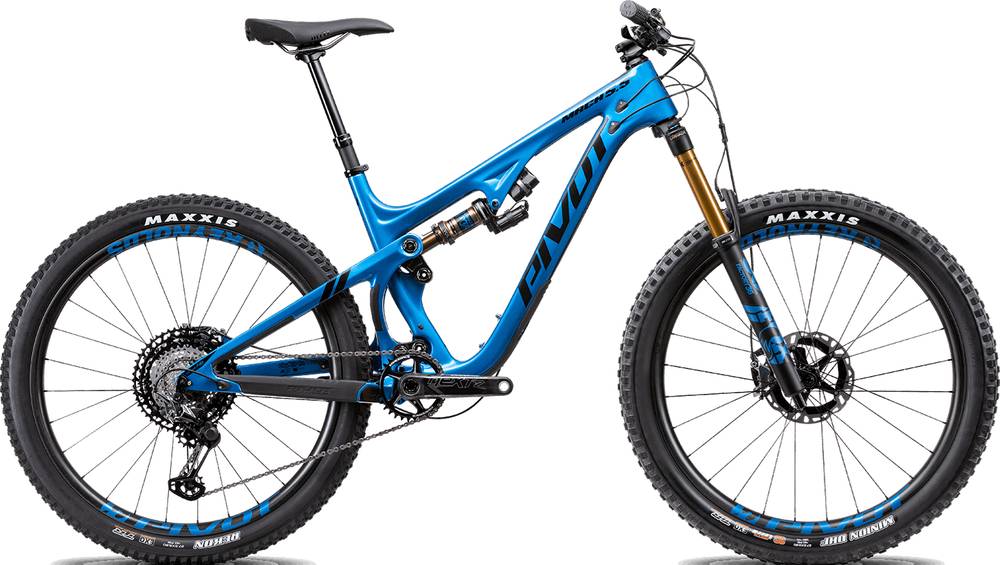

Pivot Mach 5.5 Carbon Team XTR w/ Fox Live Valve 2020
2020 Mountain
Estimate price |
10,799$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Fork Fox Factory Float 36
-
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mach 5.5
Suspension Fork
Fox Factory Live 36 27.5", 44mm offset, FIT LIVE - 160mm
Rear Shock
Fox Factory Live Valve
Drivetrain
Rear Derailleur
Shimano XTR SGS 12-Speed
Shift Levers
Shimano XTR M9100 12-Speed
Cassette
Shimano XTR M9100 10-51t
Crank
Race Face Next R 32t
Chain
Shimano CN-M9100 12-Speed
Wheels
Rims
Reynolds Blacklabel Enduro Wide Trail w/ DT Swiss hub & 36t Star Ratchet, 34mm - 27.5"
Tires
Maxxis Minion DHF 27.5" x 2.6" TR, EXOMaxxis Rekon 27.5" x 2.6" TR, EXO
Brakes
Brakes
Shimano XTR M9120 4-piston
Disk Rotors
Shimano XTR CenterLock - 180mmShimano XTR CenterLock - 180mm
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Team Low Rise Carbon
Grips
Phoenix Team Padloc
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Team High Tail Trail (XS, SM), Phoenix WTB Team Vigo (MD-XL)
Seatpost
KS Rage-i 100mm (XS), 125mm (SM), 150mm (MD), Fox Transfer Performance Series 150mm (LG, XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.45 mm | 1.37 mm | 1.33 mm | 1.28 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm |
| Stack | 589 mm | 603 mm | 613 mm | 622 mm | 631 mm |
| Reach | 397 mm | 417 mm | 447 mm | 467 mm | 492 mm |
| Top Tube Length | 565 mm | 591 mm | 624 mm | 646 mm | 674 mm |
| Seat Tube Angle | 74.25 ° | 74.25 ° | 74.25 ° | 74.25 ° | 74.25 ° |
| Seat Tube Length | 356 mm | 394 mm | 426 mm | 457 mm | 495 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 90 mm | 105 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1123 mm | 1150 mm | 1184 mm | 1207 mm | 1236 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 693 mm | 697 mm | 698 mm | 699 mm | 718 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
About this model
Mach 5.5 Carbon Team XTR w/ Fox Live Valve is a Pivot Mach 55 model. Pivot released 77 bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Pivot Mach 5.5 Carbon Race XT 2020 is the most economical model, with a starting price of 5499$. Pivot Mach 5.5 Carbon Team XX1 AXS w/ Fox Live Valve 2020 on the other hand costs 12199$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro bikes average price
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, this doesn’t mean that if you spend less money on an Enduro bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2020 and its price was 10799$. If we compare this with the average Enduro bike cost we notice that the price is 200.06% more expensive.
Mach 5.5 Carbon Team XTR w/ Fox Live Valve components
Fork
The Mach 5.5 Carbon Team XTR w/ Fox Live Valve comes factory-installed with the Fox Factory Float 36 fork. This has a travel range of 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When it comes to wheels, the Mach 5.5 Carbon Team XTR w/ Fox Live Valve bike is equipped with the 27.5″ carbon model. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 147 cm – 200 cm (4.82 ft – 6.56 ft). In short, you can easily find one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
