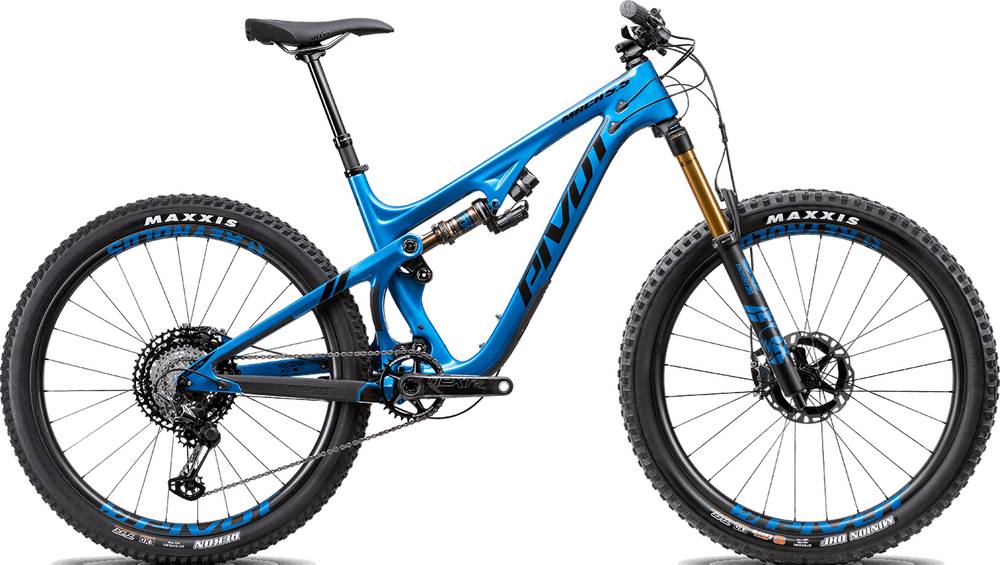

Pivot Mach 5.5 Carbon Team XX1 AXS 2020
2020 Mountain
Estimate price |
10,299$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Fork Fox Factory Float 36
-
Groupset XX1 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Mach 5.5
Suspension Fork
Fox Factory 36 27.5", 44mm offset, FIT4 - 160mm
Rear Shock
Fox Factory Float DPX2
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS 12-Speed
Shift Levers
SRAM XX1 Eagle AXS 12-Speed
Cassette
SRAM XG-1299 10-50t
Crank
SRAM XX1 Eagle DUB SL 32t
Chain
SRAM XX1 Eagle 12-Speed
Wheels
Rims
Reynolds Blacklabel Enduro Wide Trail w/ Industry Nine hub, 34mm - 27.5"
Tires
Maxxis Minion DHF 27.5" x 2.6" TR, EXOMaxxis Rekon 27.5" x 2.6" TR, EXO
Brakes
Brakes
SRAM G2 Ultimate 4-piston
Disk Rotors
SRAM Centerline CenterLock - 180mmSRAM Centerline CenterLock - 180mm
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Team Low Rise Carbon
Grips
Phoenix Team Padloc
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Team High Tail Trail (XS, SM), Phoenix WTB Team Vigo (MD-XL)
Seatpost
Rock Shox Reverb AXS 100mm (XS), 125mm (SM), 150mm (MD-XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.45 mm | 1.37 mm | 1.33 mm | 1.28 mm |
| Bottom Bracket Height | 340 mm | 340 mm | 340 mm | 340 mm | 340 mm |
| Stack | 589 mm | 603 mm | 613 mm | 622 mm | 631 mm |
| Reach | 397 mm | 417 mm | 447 mm | 467 mm | 492 mm |
| Top Tube Length | 565 mm | 591 mm | 624 mm | 646 mm | 674 mm |
| Seat Tube Angle | 74.25 ° | 74.25 ° | 74.25 ° | 74.25 ° | 74.25 ° |
| Seat Tube Length | 356 mm | 394 mm | 426 mm | 457 mm | 495 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 90 mm | 105 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1123 mm | 1150 mm | 1184 mm | 1207 mm | 1236 mm |
| Bottom Bracket Drop | 15 mm | 15 mm | 15 mm | 15 mm | 15 mm |
| Standover Height | 693 mm | 697 mm | 698 mm | 699 mm | 718 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
Mach 5.5 Carbon Team XX1 AXS is a Pivot Mach 55 model. Pivot released 77 bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Pivot Mach 5.5 Carbon Race XT 2020 is the most economical model, with a starting price of 5499$. Pivot Mach 5.5 Carbon Team XX1 AXS w/ Fox Live Valve 2020 on the other hand costs 12199$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro bikes average price
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Pivot released this model in 2020, its price was 10299$. Comparing the average cost of an Enduro bike to this one, you will see that Mach 5.5 Carbon Team XX1 AXS price is 186.16% more expensive.
Mach 5.5 Carbon Team XX1 AXS components
Fork
The Mach 5.5 Carbon Team XX1 AXS comes factory-installed with the Fox Factory Float 36 fork. This has a travel range of 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The wheels on Mach 5.5 Carbon Team XX1 AXS are the 27.5″ carbon type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Pivot Mach 5.5 Carbon Team XX1 AXS has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Mach 5.5 Carbon Team XX1 AXS comes in 5 sizes, that range from 147 cm – 200 cm (4.82 ft – 6.56 ft). In short, you can easily find one that suits you.
Dropper post
Pivot Mach 5.5 Carbon Team XX1 AXS comes with a dropper post. Therefore, climbing or descending will be a breeze.
