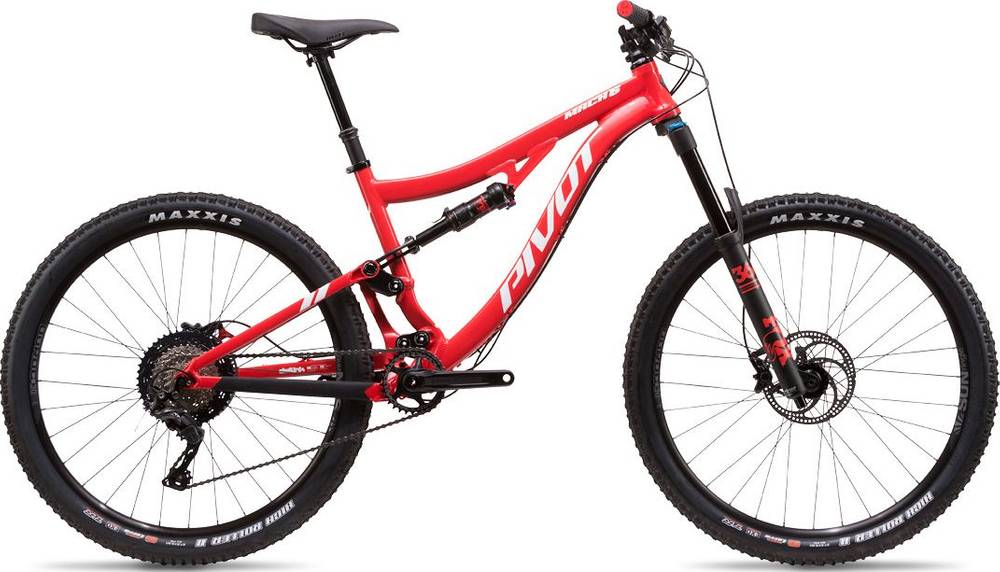

Pivot Mach 6 Aluminum PRO XT/XTR 2x 2018
2018 Mountain
Estimate price |
5,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 155mm -
Fork Fox Factory Float 36
-
Groupset XTR -
Suspension Full -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX 36 Factory, Kashima
Rear Shock
FOX Float Factory DPX2 EVOL
Drivetrain
Rear Derailleur
Shimano XTR, 11-speed
Front Derailleur
Shimano XT
Shift Levers
Shimano XT, 11-speed
Cassette
Shimano XT M8000, 11-42 tooth, 11-speed
Crank
Shimano XT M8000, 175mm (S-XL), Race Face Aeffect SL, 170mm (XS)
Bottom Bracket
PF92
Chain
Shimano
Chain Guide
none
Pedals
none
Wheels
Front Hub
DT Swiss M1700 with 36-tooth star ratchet upgrade
Rear Hub
DT Swiss M1700 with 36-tooth star ratchet upgrade
Rims
DT Swiss M1700, 30mm
Spokes
DT Swiss
Tires
Maxxis High Roller II, TR, 27.5" x 2.3" front and rear
Brakes
Brakes
Shimano XT M8000, 180mm rotors front and rear
Brake Levers
Shimano XT M8000
Cockpit
Stem
Phoenix Team Enduro, 45mm length, 35mm diameter clamp
Handlebar
Phoenix Team Carbon, 35mm diameter, 800mm width
Grips
Phoenix Team Padloc
Headset
Pivot precision sealed cartridge, zero stack 44mm top, 56mm bottom
Seat
Saddle
WTB Vigo Pro
Seatpost
FOX Transfer 125mm, FOX Transfer 150mm, or KS Lev Integra 100mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.5 mm | 1.35 mm | 1.33 mm | 1.27 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm | 346 mm |
| Stack | 578 mm | 588 mm | 597 mm | 615 mm | 618 mm |
| Reach | 372 mm | 392 mm | 442 mm | 462 mm | 487 mm |
| Top Tube Length | 547 mm | 570 mm | 613 mm | 636 mm | 664 mm |
| Seat Tube Angle | 73 ° | 73 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 368 mm | 394 mm | 426 mm | 457 mm | 495 mm |
| Head Tube Angle | 65.75 ° | 65.75 ° | 65.75 ° | 65.75 ° | 65.75 ° |
| Head Tube Length | 90 mm | 102 mm | 108 mm | 120 mm | 130 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1109 mm | 1138 mm | 1182 mm | 1207 mm | 1230 mm |
| Bottom Bracket Drop | 9 mm | 9 mm | 9 mm | 9 mm | 9 mm |
| Standover Height | 708 mm | 718 mm | 728 mm | 745 mm | 757 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
About this model
Mach 6 Aluminum PRO XT/XTR 2x belongs to the Pivot Mach 6 model. Pivot launched 115 bikes of this model so far. You can easily view all of the Pivot Mach 6 bikes models from 2018, here.
Model range prices
The most economical model, the Pivot Mach 6 Aluminum RACE XT 1x 2018 has a starting price of 3899$. Pivot Mach 6 Carbon TEAM XTR Di2 2x 2018 on the other hand is the most expensive at 9999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro bikes average price
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Pivot released this model in 2018, its price was 5499$. Doing a quick comparison, we notice that Mach 6 Aluminum PRO XT/XTR 2x price is 52.79% higher than the average cost of an Enduro bike.
Mach 6 Aluminum PRO XT/XTR 2x components
Fork
The Mach 6 Aluminum PRO XT/XTR 2x comes factory-installed with the Fox Factory Float 36 fork. This has a travel range of 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The Mach 6 Aluminum PRO XT/XTR 2x has a rear shock with a travel of 155mm. The model FOX Float Factory DPX2 EVOL is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
As for the wheels, Pivot Mach 6 Aluminum PRO XT/XTR 2x 2018, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Mach 6 Aluminum PRO XT/XTR 2x comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This bike is available in 5 sizes. They vary from 147 cm – 200 cm (4.82 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Pivot Mach 6 Aluminum PRO XT/XTR 2x comes with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
