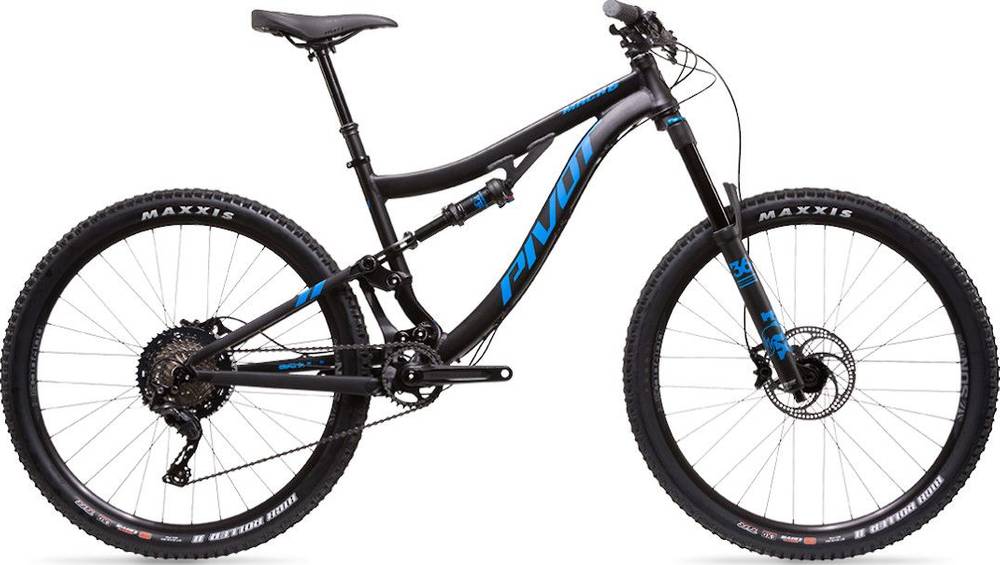

Pivot Mach 6 Aluminum RACE X01 2018
2018 Mountain
Estimate price |
4,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Rear 155mm -
Groupset X01 Eagle, GX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
160mm
Rear Shock
FOX Float Performance DPS EVOL
Drivetrain
Rear Derailleur
SRAM X01 Eagle
Front Derailleur
N/A
Shift Levers
SRAM GX1 Eagle, 12-speed
Cassette
SRAM GX1 Eagle, 10-50 tooth, 12-Speed
Crank
SRAM X1 Eagle
Bottom Bracket
PF92
Chain
12-speed
Chain Guide
N/A
Pedals
None included
Wheels
Front Hub
Sun Ringle Duroc 30mm
Rear Hub
Sun Ringle Duroc 30mm
Rims
Sun Ringle Duroc 30mm
Spokes
Sun Ringle Duroc 30mm
Tires
Maxxis High Roller II, 2.3” TR EXO 3C MAXXTERRA
Brakes
Brakes
Shimano SLX M7000
Brake Levers
Shimano SLX M7000
Cockpit
Stem
Phoenix Team Enduro, 45mm length, 35mm diameter clamp
Handlebar
Phoenix Race, aluminum, 35mm diameter, 800mm width
Grips
Phoenix Team Padloc
Headset
Pivot Semi-Sealed Cartridge
Seat
Saddle
Phoenix WTB Vigo Race
Seatpost
FOX Transfer 125mm or 150mm drop, LEV Integra 100mm drop for XS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.5 mm | 1.35 mm | 1.33 mm | 1.27 mm |
| Bottom Bracket Height | 345.9 mm | 345.9 mm | 345.9 mm | 345.9 mm | 345.9 mm |
| Stack | 578.6 mm | 587.8 mm | 596.9 mm | 615.2 mm | 618 mm |
| Reach | 372.4 mm | 392.2 mm | 442.2 mm | 462.3 mm | 487.2 mm |
| Top Tube Length | 547.4 mm | 570.2 mm | 612.9 mm | 635.8 mm | 664.2 mm |
| Seat Tube Angle | 73 ° | 73 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 368.3 mm | 393.7 mm | 425.5 mm | 457.2 mm | 495.3 mm |
| Head Tube Angle | 65.8 ° | 65.8 ° | 65.8 ° | 65.8 ° | 65.8 ° |
| Head Tube Length | 89.9 mm | 101.6 mm | 107.9 mm | 119.9 mm | 130 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1109 mm | 1138 mm | 1182 mm | 1206 mm | 1230 mm |
| Bottom Bracket Drop | 10 mm | 10 mm | 10 mm | 10 mm | 10 mm |
| Standover Height | 699 mm | 715 mm | 736 mm | 725 mm | 766 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
Mach 6 Aluminum RACE X01 is a Pivot Mach 6 model. Pivot released 115 bikes variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Pivot Mach 6 Aluminum RACE XT 1x 2018 is the most economical model, with a starting price of 3899$. Pivot Mach 6 Carbon TEAM XTR Di2 2x 2018 on the other hand costs 9999$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Enduro bikes average price
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Pivot released this model in 2018, its price was 4499$. In conclusion, this bike price is 25.01% more expensive than the price of the average Enduro bike.
Overview of components
Rear Shock
The shock that’s installed on this bike is FOX Float Performance DPS EVOL, with a travel distance of 155mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
When leaving the production line, the Mach 6 Aluminum RACE X01 model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Mach 6 Aluminum RACE X01 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Mach 6 Aluminum RACE X01 comes in 5 sizes, that range from 147 cm – 200 cm (4.82 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the Mach 6 Aluminum RACE X01. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
