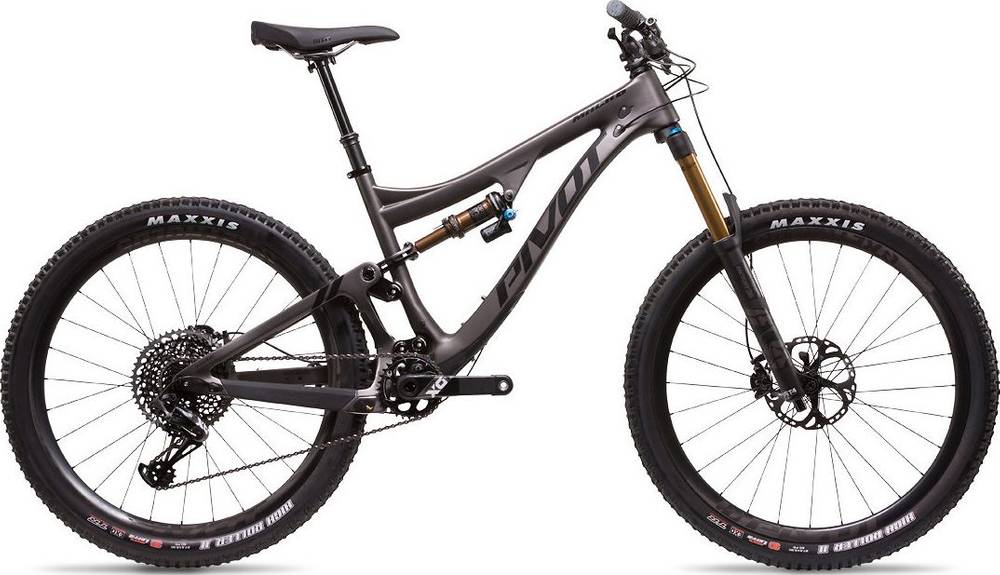

Pivot Mach 6 Carbon PRO X01 Eagle 2018
2018 Mountain
Estimate price |
7,099$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 155mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 36 Factory, FIT4
Rear Shock
FOX Float Factory DPX2 EVOL
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed
Front Derailleur
n/a
Shift Levers
SRAM X01 Eagle, 12-speed
Cassette
SRAM X01 Eagle, 10-50 tooth, 12-speed
Crank
SRAM X01 Eagle
Bottom Bracket
PF92
Chain
SRAM
Chain Guide
none
Pedals
none
Wheels
Front Hub
DT Swiss M1700 with 36 tooth star ratchet upgrade
Rear Hub
DT Swiss M1700 with 36 tooth star ratchet upgrade
Rims
DT Swiss M1700, 30mm
Spokes
DT Swiss
Tires
Maxxis High Roller II, TR, 27.5" x 2.3" front and rear
Brakes
Brakes
Shimano XT M8000 with 180mm rotors front and rear
Brake Levers
Shimano XT M8000
Cockpit
Stem
Phoenix Team Enduro, 45mm length, 35mm diameter clamp
Handlebar
Phoenix Team Carbon, 35mm diameter, 800mm width
Grips
Phoenix Team Padloc
Headset
Pivot precision sealed cartridge, zero stack 44mm top, 56mm bottom
Seat
Saddle
WTB Vigo Pro
Seatpost
FOX Transfer 125mm, FOX Transfer 150mm, or KS Lev Integra 100mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.5 mm | 1.35 mm | 1.33 mm | 1.27 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm | 346 mm |
| Stack | 578 mm | 588 mm | 597 mm | 615 mm | 618 mm |
| Reach | 372 mm | 392 mm | 442 mm | 462 mm | 487 mm |
| Top Tube Length | 547 mm | 570 mm | 613 mm | 636 mm | 664 mm |
| Seat Tube Angle | 73 ° | 73 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 368 mm | 394 mm | 426 mm | 457 mm | 495 mm |
| Head Tube Angle | 65.75 ° | 65.75 ° | 65.75 ° | 65.75 ° | 65.75 ° |
| Head Tube Length | 90 mm | 102 mm | 108 mm | 120 mm | 130 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1109 mm | 1138 mm | 1182 mm | 1207 mm | 1230 mm |
| Bottom Bracket Drop | 9 mm | 9 mm | 9 mm | 9 mm | 9 mm |
| Standover Height | 708 mm | 718 mm | 728 mm | 745 mm | 757 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
About this model
Mach 6 Carbon PRO X01 Eagle is a Pivot Mach 6 model. There are 115 bikes that carry this model name. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Pivot Mach 6 Aluminum RACE XT 1x 2018 is the most affordable bike of this model and has a price of 3899$. On the other hand, Pivot Mach 6 Carbon TEAM XTR Di2 2x 2018, is the most expensive and costs 9999$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro bikes
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2018 for 7099$. Comparing this to the average Enduro bike price, we see that the price is 97.25% more expensive.
Overview of components
Fork
Pivot Mach 6 Carbon PRO X01 Eagle 2018 bike is equipped with the Fox Factory Float 36 fork, and has 160mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is FOX Float Factory DPX2 EVOL, with a travel distance of 155mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
As for the wheels, Pivot Mach 6 Carbon PRO X01 Eagle 2018, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Mach 6 Carbon PRO X01 Eagle has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Pivot Mach 6 Carbon PRO X01 Eagle bike has 5 sizes, in the range of 147 cm – 200 cm (4.82 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Pivot model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
