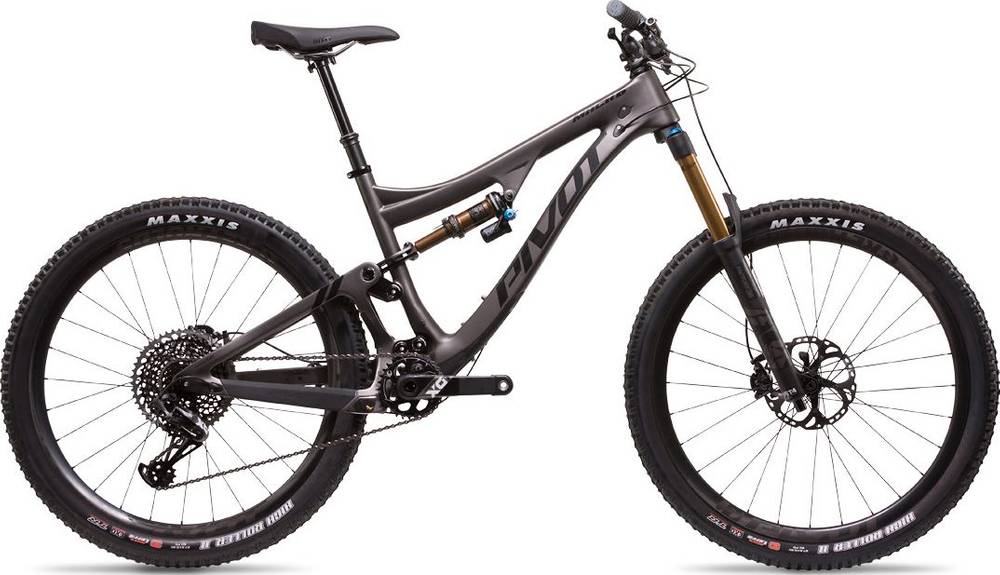

Pivot Mach 6 Carbon PRO XT/XTR 1x 2018
2018 Mountain
Estimate price |
6,199$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 155mm -
Fork Fox Factory Float 36
-
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 36 Factory, FIT4
Rear Shock
FOX Float Factory DPX2 EVOL
Drivetrain
Rear Derailleur
Shimano XTR, 11-speed
Front Derailleur
n/a
Shift Levers
Shimano XT, 11-speed
Cassette
Shimano XT M8000, 11-46 tooth, 11-speed
Crank
Race Face Aeffect SL
Bottom Bracket
PF92
Chain
Shimano
Chain Guide
none
Pedals
none
Wheels
Front Hub
DT Swiss M1700 with 36 tooth star ratched upgrade
Rear Hub
DT Swiss M1700 with 36 tooth star ratched upgrade
Rims
DT Swiss M1700, 30mm
Spokes
DT Swiss
Tires
Maxxis High Roller II, TR, 27.5" x 2.3" front and rear
Brakes
Brakes
Shimano XT M8000, 180mm RT99 Freeza ICE TECH rotors front and rear
Brake Levers
Shimano XT M8000
Cockpit
Stem
Phoenix Team Enduro, 45mm length, 35mm diameter clamp
Handlebar
Phoenix Team Carbon, 35mm diameter, 800mm width
Grips
Phoenix Team Padloc
Headset
Pivot precision sealed cartridge, zero stack 44mm top, 56mm bottom
Seat
Saddle
WTB Vigo Pro
Seatpost
FOX Transfer 125mm, FOX Transfer 150mm, or KS Lev Integra 100mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.5 mm | 1.35 mm | 1.33 mm | 1.27 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm | 346 mm |
| Stack | 578 mm | 588 mm | 597 mm | 615 mm | 618 mm |
| Reach | 372 mm | 392 mm | 442 mm | 462 mm | 487 mm |
| Top Tube Length | 547 mm | 570 mm | 613 mm | 636 mm | 664 mm |
| Seat Tube Angle | 73 ° | 73 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 368 mm | 394 mm | 426 mm | 457 mm | 495 mm |
| Head Tube Angle | 65.75 ° | 65.75 ° | 65.75 ° | 65.75 ° | 65.75 ° |
| Head Tube Length | 90 mm | 102 mm | 108 mm | 120 mm | 130 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1109 mm | 1138 mm | 1182 mm | 1207 mm | 1230 mm |
| Bottom Bracket Drop | 9 mm | 9 mm | 9 mm | 9 mm | 9 mm |
| Standover Height | 708 mm | 718 mm | 728 mm | 745 mm | 757 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
Mach 6 Carbon PRO XT/XTR 1x is part of the Pivot Mach 6 model. Pivot launched 115 bikes of this model so far. You can easily view all of the Pivot Mach 6 bikes models from 2018, here.
Model range prices
Pivot Mach 6 Aluminum RACE XT 1x 2018 is the cheapest bike model and costs 3899$. Pivot Mach 6 Carbon TEAM XTR Di2 2x 2018 is the most expensive one and costs 9999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro bikes
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2018 and its price was 6199$. Comparing the average cost of an Enduro bike to this one, you will see that Mach 6 Carbon PRO XT/XTR 1x price is 72.24% higher.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 36 model. The travel on this model is 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The Mach 6 Carbon PRO XT/XTR 1x has a rear shock with a travel of 155mm. The model FOX Float Factory DPX2 EVOL is the one installed in this bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When leaving the production line, the Mach 6 Carbon PRO XT/XTR 1x model has 27.5″ aluminum wheels. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Pivot Mach 6 Carbon PRO XT/XTR 1x is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Pivot Mach 6 Carbon PRO XT/XTR 1x bike has 5 sizes, in the range of 147 cm – 200 cm (4.82 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
