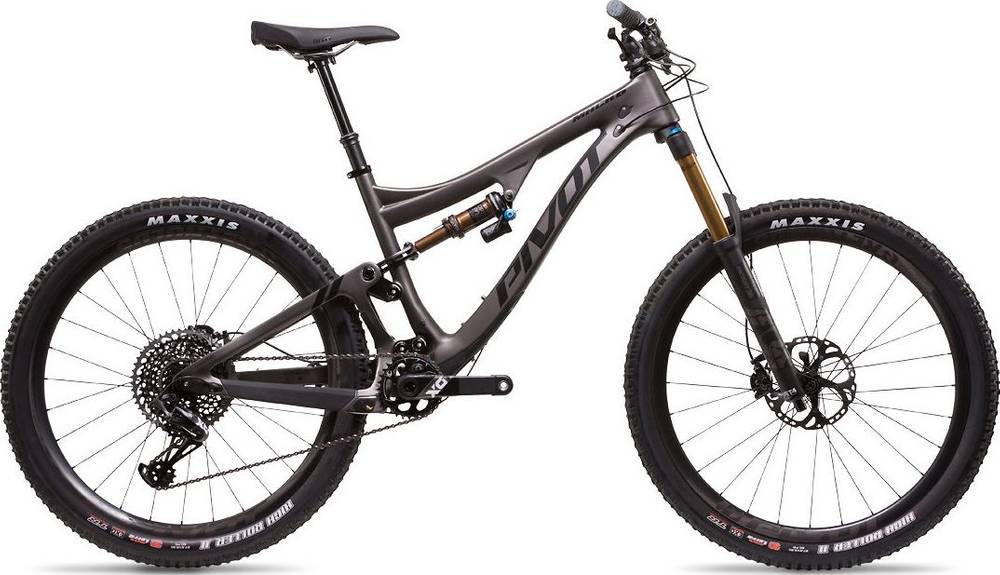

Pivot Mach 6 Carbon TEAM XX1 Eagle 2018
2018 Mountain
Estimate price |
8,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 155mm -
Fork Fox Factory Float 36
-
Groupset XX1 Eagle -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 36 Factory, FIT4, Kashima
Rear Shock
FOX Float Factory DPX2 EVOL
Drivetrain
Rear Derailleur
SRAM XX1 Eagle, 12-speed
Front Derailleur
n/a
Shift Levers
SRAM XX1 Eagle, 12-speed
Cassette
SRAM XX1 Eagle, 10-50 tooth, 12-speed
Crank
SRAM XX1 Eagle
Bottom Bracket
PF92
Chain
SRAM
Chain Guide
none
Pedals
none
Wheels
Front Hub
Industry Nine
Rear Hub
Industry Nine
Rims
Reynolds Carbon
Spokes
Industry Nine
Tires
Maxxis High Roller II, TR, 27.5" x 2.3" front and rear
Brakes
Brakes
SRAM Guide Ultimate with 180mm rotors front and rear
Brake Levers
SRAM Guide Ultimate
Cockpit
Stem
Phoenix Team Enduro, 45mm length, 35mm diameter clamp
Handlebar
Phoenix Team Carbon, 35mm diameter, 800mm width
Grips
Phoenix Team Padloc
Headset
Pivot precision sealed cartridge, zero stack 44mm top, 56mm bottom
Seat
Saddle
WTB Vigo Pro
Seatpost
FOX Transfer 125mm, FOX Transfer 150mm, or KS Lev Integra 100mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.5 mm | 1.35 mm | 1.33 mm | 1.27 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm | 346 mm |
| Stack | 578 mm | 588 mm | 597 mm | 615 mm | 618 mm |
| Reach | 372 mm | 392 mm | 442 mm | 462 mm | 487 mm |
| Top Tube Length | 547 mm | 570 mm | 613 mm | 636 mm | 664 mm |
| Seat Tube Angle | 73 ° | 73 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 368 mm | 394 mm | 426 mm | 457 mm | 495 mm |
| Head Tube Angle | 65.75 ° | 65.75 ° | 65.75 ° | 65.75 ° | 65.75 ° |
| Head Tube Length | 90 mm | 102 mm | 108 mm | 120 mm | 130 mm |
| Chainstay Length | 433 mm | 433 mm | 433 mm | 433 mm | 433 mm |
| Wheelbase | 1109 mm | 1138 mm | 1182 mm | 1207 mm | 1230 mm |
| Bottom Bracket Drop | 9 mm | 9 mm | 9 mm | 9 mm | 9 mm |
| Standover Height | 708 mm | 718 mm | 728 mm | 745 mm | 757 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
About this model
Mach 6 Carbon TEAM XX1 Eagle completes the Pivot Mach 6 model. Pivot launched 115 bikes of this model so far. You can easily view all of the Pivot Mach 6 bikes models from 2018, here.
Model range prices
Pivot Mach 6 Aluminum RACE XT 1x 2018 is the cheapest bike model and costs 3899$. Pivot Mach 6 Carbon TEAM XTR Di2 2x 2018 is the most expensive one and costs 9999$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Enduro bikes
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, you could also get a good Enduro bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Pivot released this model in 2018, its price was 8999$. Comparing the average cost of an Enduro bike to this one, you will see that Mach 6 Carbon TEAM XX1 Eagle price is 150.04% more expensive.
Mach 6 Carbon TEAM XX1 Eagle components
Fork
This bike has the Fox Factory Float 36 fork installed. The fork’s travel is 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The Mach 6 Carbon TEAM XX1 Eagle has a rear shock with a travel of 155mm. The model FOX Float Factory DPX2 EVOL is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When leaving the production line, the Mach 6 Carbon TEAM XX1 Eagle model has 27.5″ carbon wheels. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Mach 6 Carbon TEAM XX1 Eagle has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Pivot Mach 6 Carbon TEAM XX1 Eagle bike has 5 sizes, in the range of 147 cm – 200 cm (4.82 ft – 6.56 ft). In short, you can easily find one that suits you.
Dropper post
The Pivot model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
