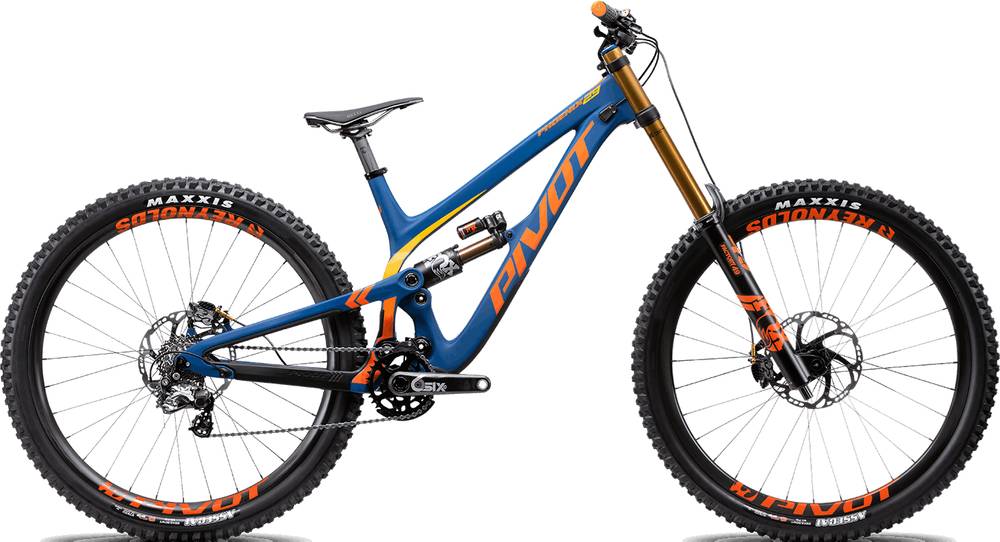

Pivot Phoenix 29 Pro Saint 2020
2020 Mountain
Estimate price |
7,599$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 203mm -
Fork Fox Factory Float 40
-
Groupset Saint, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Phoenix 29
Suspension Fork
Fox Factory 40 29”, 58mm offset, GRIP2 – 203mm
Rear Shock
Fox Factory Float X2
Drivetrain
Rear Derailleur
Shimano Saint 10-Speed
Shift Levers
Shimano Saint M820 10-Speed
Cassette
Shimano 105 CS-5700 11-28t
Crank
Race Face SIXC 36t
Chain
Shimano CN-6701 10-Speed
Wheels
Rims
DT Swiss FR 560 w/ DT Swiss 350 hub - 29"
Tires
Maxxis Assegai 29" x 2.5" 3C, MAXXGRIP, DH CASING Maxxis Assegai 29" x 2.5" 3C, MAXXGRIP, DH CASING
Brakes
Brakes
Shimano Saint M820 4-piston
Disk Rotors
Shimano XT 6-bolt - 203mm Shimano XT 6-bolt - 180mm
Cockpit
Stem
Phoenix Team DH - 45mm
Handlebar
Phoenix Team Low Rise Carbon
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge - DH
Seat
Saddle
Phoenix WTB Team High Tail
Seatpost
Phoenix Pro Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.49 mm | 1.39 mm | 1.32 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Stack | 638 mm | 638 mm | 638 mm | 638 mm |
| Reach | 408 mm | 428 mm | 458 mm | 483 mm |
| Top Tube Length | 568 mm | 588 mm | 618 mm | 643 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Head Tube Angle | 62.5 ° | 62.5 ° | 62.5 ° | 62.5 ° |
| Head Tube Length | 106 mm | 106 mm | 106 mm | 106 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1225 mm | 1245 mm | 1276 mm | 1300 mm |
| Bottom Bracket Drop | 37 mm | 37 mm | 37 mm | 37 mm |
| Standover Height | 672 mm | 672 mm | 672 mm | 672 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
Phoenix 29 Pro Saint completes the Pivot Phoenix model. 35 bikes variations carry this model name so far. Take a sneak peek at all Pivot Phoenix bikes models from 2020, by clicking here.
Model range prices
Pivot Phoenix Race Zee 2020 is the most economical model, with a starting price of 3899$. Pivot Phoenix 29 Pro Saint 2020 on the other hand costs 7599$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Downhill bikes average price
If you want to purchase a solid Downhill bike, it is important to know that the average cost is 3391$. However, this doesn’t mean that if you spend less money on a Downhill bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
When Pivot released this model in 2020, its price was 7599$. Comparing this to the average Downhill bike price, we see that the price is 124.09% higher.
Overview of components
Fork
The Fox Factory Float 40 is included from the factory. It has a travel distance of 203mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When leaving the production line, the Phoenix 29 Pro Saint model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 162 cm – 200 cm (5.31 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
