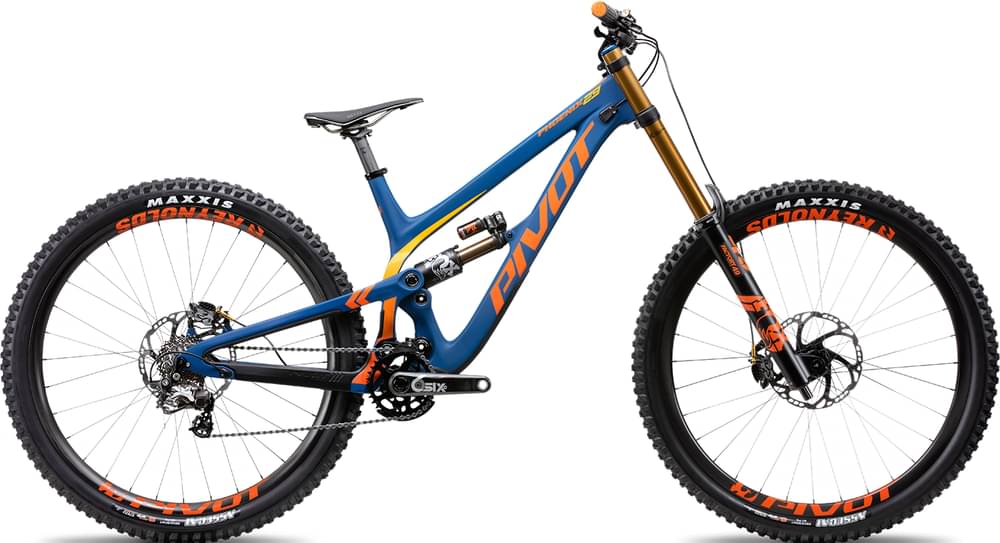

Pivot Phoenix 29 Pro Saint w/ Carbon Wheels 2021
2021 Mountain
Estimate price |
9,349$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 203mm -
Travel Rear 190mm -
Fork Fox Factory Float 40
-
Groupset Saint, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Phoenix 29
Suspension Fork
Fox Factory 40 29”, 58mm offset, GRIP2 - 203mm
Rear Shock
Fox Factory Float X2
Drivetrain
Rear Derailleur
Shimano Saint M820 10-Speed
Shift Levers
Shimano Saint M820 10-Speed
Cassette
Shimano 105 CS-5700 11-28t
Crank
Race Face SIXC 36t w/ chainguide
Chain
Shimano CN-6701 10-Speed
Wheels
Rims
Reynolds Blacklabel DH w/ Industry Nine hub, 28mm - 29"20x110 F/12x157 R
Tires
Maxxis Assegai 29" x 2.5" 3C, MAXXGRIP, DH CASING Maxxis Assegai 29" x 2.5" 3C, MAXXGRIP, DH CASING
Brakes
Brakes
Shimano Saint M820 4-piston
Disk Rotors
Shimano XT RT76 6-bolt - 203mm Shimano XT RT76 6-bolt - 203mm
Cockpit
Stem
Phoenix Team DH - 45mm
Handlebar
Phoenix Team Low Rise Carbon - 800mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge - DH
Seat
Saddle
Phoenix WTB Team High Tail
Seatpost
Phoenix Pro Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.49 mm | 1.39 mm | 1.32 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Stack | 638 mm | 638 mm | 638 mm | 638 mm |
| Reach | 408 mm | 428 mm | 458 mm | 483 mm |
| Top Tube Length | 568 mm | 588 mm | 618 mm | 643 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Head Tube Angle | 62.5 ° | 62.5 ° | 62.5 ° | 62.5 ° |
| Head Tube Length | 106 mm | 106 mm | 106 mm | 106 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1225 mm | 1245 mm | 1276 mm | 1300 mm |
| Bottom Bracket Drop | 37 mm | 37 mm | 37 mm | 37 mm |
| Standover Height | 672 mm | 672 mm | 672 mm | 672 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
Phoenix 29 Pro Saint w/ Carbon Wheels is a Pivot Phoenix model. 35 bikes variations carry this model name so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Pivot Phoenix 29 Race Zee 2021 is the most economical model, with a starting price of 6199$. Pivot Phoenix 29 Pro Saint w/ Carbon Wheels 2021 on the other hand costs 9349$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Downhill bikes
According to our calculations, the average cost of a Downhill bike that is reliable is 3391$. However, this doesn’t mean that if you spend less money on a Downhill bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2021 and its price was 9349$. Comparing the average cost of a Downhill bike to this one, you will see that Phoenix 29 Pro Saint w/ Carbon Wheels price is 175.7% more expensive.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 40 model. The travel on this model is 203mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The Phoenix 29 Pro Saint w/ Carbon Wheels has a rear shock with a travel of 190mm. The model Fox Factory Float X2 is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When leaving the production line, the Phoenix 29 Pro Saint w/ Carbon Wheels model has 29″ carbon wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 162 cm – 200 cm (5.31 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
