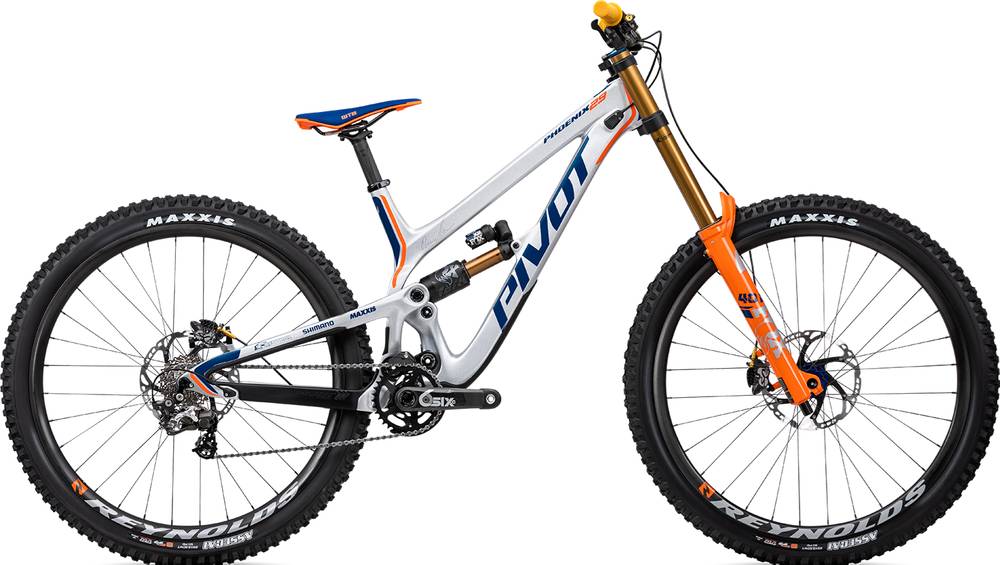

Pivot Phoenix 29 Race Zee 2021
2021 Mountain
Estimate price |
6,199$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 203mm -
Travel Rear 190mm -
Fork Fox Performance Elite Float 40
-
Groupset Zee, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Phoenix 29
Suspension Fork
Fox Performance Elite 40 29”, 58mm offset, GRIP – 203mm
Rear Shock
Fox Factory Float X2
Drivetrain
Rear Derailleur
Shimano Zee 10-Speed
Shift Levers
Shimano Zee M640 10-Speed
Cassette
Shimano 105 CS-5700 11-28t
Crank
Race Face Atlas 36t
Chain
Shimano CN-6701 10-Speed
Wheels
Rims
Sun Ringle SD37 - 29"
Tires
Maxxis Assegai 29" x 2.5" 3C, MAXXGRIP, DH CASING Maxxis Assegai 29" x 2.5" 3C, MAXXGRIP, DH CASING
Brakes
Brakes
Shimano Zee M640 4-piston
Disk Rotors
Shimano SLX 6-bolt - 203mm Shimano SLX 6-bolt - 203mm
Cockpit
Stem
Phoenix Team DH - 45mm
Handlebar
Phoenix Race Low Rise Aluminum - 800mm
Grips
Phoenix Team Padloc
Headset
Pivot Precision Sealed Cartridge - DH
Seat
Saddle
Phoenix WTB Race High Tail
Seatpost
Phoenix Race Aluminum
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.49 mm | 1.39 mm | 1.32 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Stack | 638 mm | 638 mm | 638 mm | 638 mm |
| Reach | 408 mm | 428 mm | 458 mm | 483 mm |
| Top Tube Length | 568 mm | 588 mm | 618 mm | 643 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Head Tube Angle | 62.5 ° | 62.5 ° | 62.5 ° | 62.5 ° |
| Head Tube Length | 106 mm | 106 mm | 106 mm | 106 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1225 mm | 1245 mm | 1276 mm | 1300 mm |
| Bottom Bracket Drop | 37 mm | 37 mm | 37 mm | 37 mm |
| Standover Height | 672 mm | 672 mm | 672 mm | 672 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 174 cm | 182 cm | 189 cm | 200 cm |
About this model
Phoenix 29 Race Zee belongs to the Pivot Phoenix model. Pivot released 35 bikes variations of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Pivot Phoenix 29 Race Zee 2021 is the most affordable bike of this model and has a price of 6199$. On the other hand, Pivot Phoenix 29 Pro Saint w/ Carbon Wheels 2021, is the most expensive and costs 9349$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Downhill bikes
According to our calculations, the average cost of a Downhill bike that is reliable is 3391$. However, even if your budget is less than the average, you might still be able to get a top-quality Downhill bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Pivot Phoenix 29 Race Zee price was 6199$. In conclusion, this bike price is 82.81% more expensive than the price of the average Downhill bike.
Phoenix 29 Race Zee components
Fork
The Fox Performance Elite Float 40 is included from the factory. It has a travel distance of 203mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The Phoenix 29 Race Zee has a rear shock with a travel of 190mm. The model Fox Factory Float X2 is the one installed in this bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The Phoenix 29 Race Zee 2021 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Pivot Phoenix 29 Race Zee is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 162 cm – 200 cm (5.31 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
