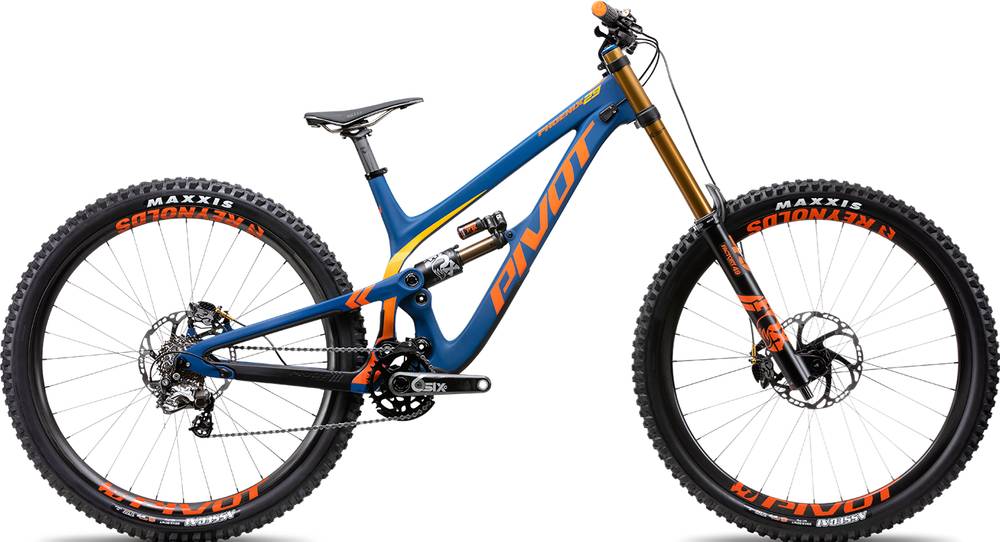

Pivot Phoenix 29 Race Zee 2019
2019 Mountain
Estimate price |
6,199$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 203mm -
Fork Fox Performance Elite Float 40
-
Groupset Zee, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Phoenix 29
Suspension Fork
Fox Performance Elite 40 29”, 58mm offset, GRIP – 203mm
Rear Shock
Fox Factory Float X2
Drivetrain
Rear Derailleur
Shimano Zee 10-Speed
Shift Levers
Shimano Zee M640 10-Speed
Cassette
Shimano 105 CS-5700 11-28t
Crank
Race Face Atlas 36t - 165mm
Chain
Shimano CN-6701 10-Speed
Wheels
Rims
Sun Ringle SD37 - 29"
Tires
Maxxis Assegai 29" x 2.5" 3C, MAXXGRIP, DH CASING Maxxis Assegai 29" x 2.5" 3C, MAXXGRIP, DH CASING
Brakes
Brakes
Shimano Zee M640
Disk Rotors
Shimano SLX RT66 6-Bolt - 203mm Shimano SLX RT66 6-Bolt - 180mm
Cockpit
Stem
Phoenix Team DH - 45mm
Handlebar
Phoenix Race Low Rise Aluminum - 800mm
Grips
Phoenix Team Padloc
Headset
Pivot Precision Sealed Cartridge - DH
Seat
Saddle
Phoenix WTB Race High Tail
Seatpost
Phoenix Race Aluminum
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.49 mm | 1.39 mm | 1.32 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm | 337 mm |
| Stack | 638 mm | 638 mm | 638 mm | 638 mm |
| Reach | 408 mm | 428 mm | 458 mm | 483 mm |
| Top Tube Length | 568 mm | 588 mm | 618 mm | 643 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Head Tube Angle | 62.5 ° | 62.5 ° | 62.5 ° | 62.5 ° |
| Head Tube Length | 106 mm | 106 mm | 106 mm | 106 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1225 mm | 1245 mm | 1276 mm | 1300 mm |
| Bottom Bracket Drop | 37 mm | 37 mm | 37 mm | 37 mm |
| Standover Height | 672 mm | 672 mm | 672 mm | 672 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 174 cm | 182 cm | 189 cm | 200 cm |
About this model
Phoenix 29 Race Zee completes the Pivot Phoenix model. Pivot launched 35 bikes of this model so far. Take a sneak peek at all Pivot Phoenix bikes models from 2019, by clicking here.
Model range prices
The most economical model, the Pivot Phoenix Zee 2019 has a starting price of 3899$. Pivot Phoenix 29 Pro Saint 2019 on the other hand is the most expensive at 7599$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Downhill bikes
If you want an acceptable Downhill bike you should know that the average price is 3391$. However, even if your budget is less than the average, you might still be able to get a top-quality Downhill bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 6199$. Doing a quick comparison, we notice that Phoenix 29 Race Zee price is 82.81% more expensive than the average cost of a Downhill bike.
Overview of components
Fork
The Fox Performance Elite Float 40 is included from the factory. It has a travel distance of 203mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
As for the wheels, Pivot Phoenix 29 Race Zee 2019, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 162 cm – 200 cm (5.31 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
