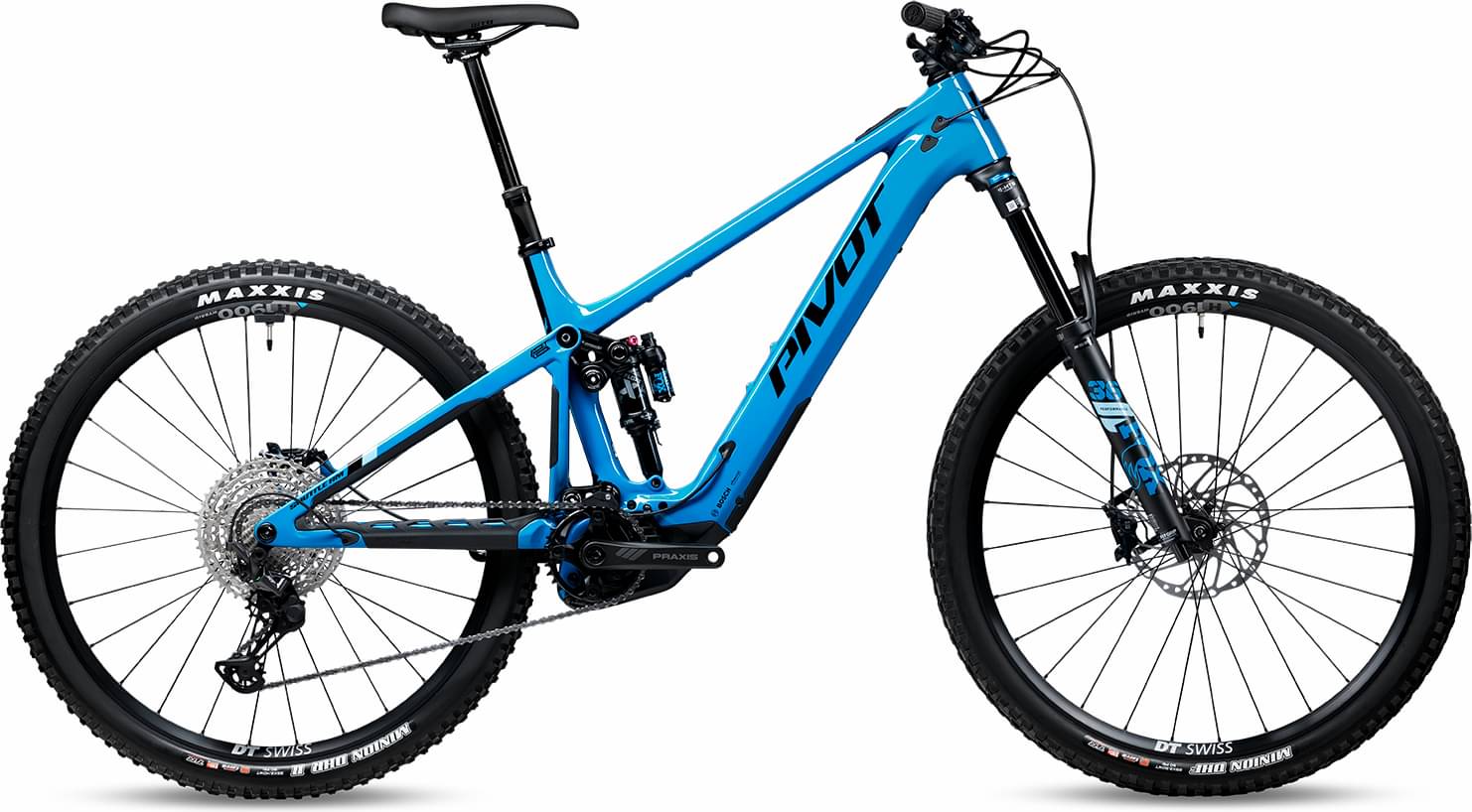

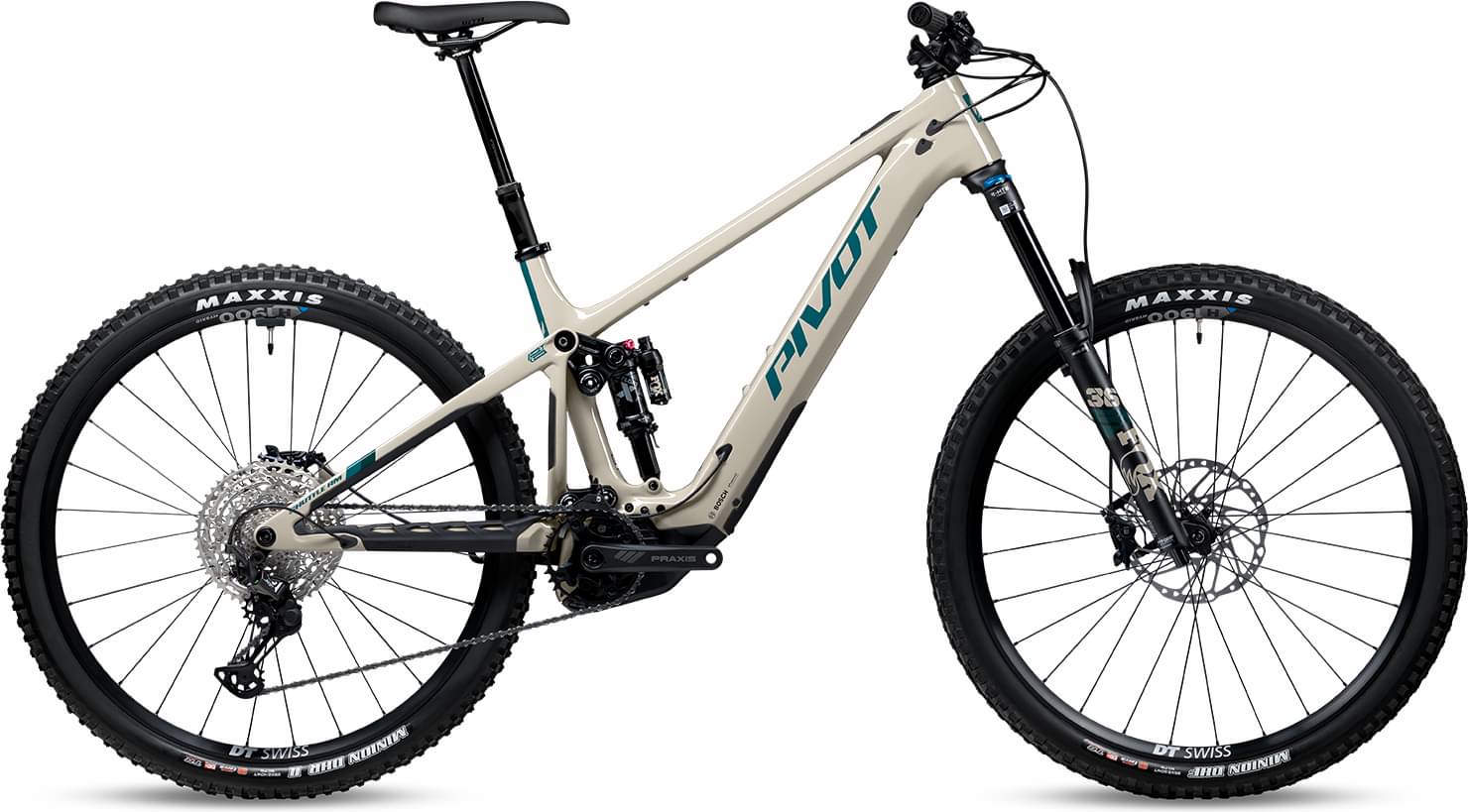

Pivot Shuttle AM Ride SLX/XT 2023
2023 E-bike
Estimate price |
8,999$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 148mm -
Fork Fox Performance Float 36
-
Groupset XT, SLX -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch Performance CX / Powertube 625wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Shuttle AM
Suspension Fork
Fox Performance 36 29", 44mm offset, GRIP - 160mm
Rear Shock
Fox Performance Float X
Drivetrain
Rear Derailleur
Shimano XT M8100 SGS 12-Speed
Shift Levers
Shimano SLX M7100 ISPEC EV 12-Speed
Cassette
Shimano Deore M6100 10-51t
Crank
Praxis Alloy eCranks E-MTB 34t
Chain
Shimano CN-M6100 12 Speed
Wheels
Rims
DT Swiss Hybrid H1900, 30mm - 29"
15x110 F/12x157 R
Tires
Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA
Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA
Brakes
Brakes
Shimano SLX M7120 4-piston
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Race Low Rise Aluminum - 780mm (SM-MD), 800mm (LG-XL)
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Volt Race (Medium Width)
Seatpost
E13 Vario 150mm - 180mm (SM-LG), 180mm - 210mm (XL)
Motor & Battery
Motor
Bosch Performance CX / Powertube 625wh
Battery
Bosch Performance CX / Powertube 625wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.4 mm | 1.37 mm | 1.33 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 774 mm | 808 mm | 827 mm | 852 mm |
| Rake | 45 mm | 44 mm | 44 mm | 45 mm |
| Trail | 132 mm | 133 mm | 133 mm | 132 mm |
| Stack | 627 mm | 637 mm | 646 mm | 655 mm |
| Reach | 426 mm | 456 mm | 471 mm | 491 mm |
| Top Tube Length | 594 mm | 626 mm | 644 mm | 666 mm |
| Seat Tube Angle | 76.4 ° | 76.4 ° | 76.4 ° | 76.4 ° |
| Seat Tube Length | 378 mm | 399 mm | 432 mm | 470 mm |
| Head Tube Angle | 64.1 ° | 64.1 ° | 64.1 ° | 64.1 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1212 mm | 1246 mm | 1265 mm | 1290 mm |
| Bottom Bracket Drop | 29 mm | 29 mm | 29 mm | 29 mm |
| Standover Height | 710 mm | 710 mm | 710 mm | 710 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 174 cm | 182 cm | 189 cm | 200 cm |
About this model
Shuttle AM Ride SLX/XT is part of the Pivot E Shuttle Am model. There are 3 e-bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Pivot Shuttle AM Ride SLX/XT 2023 is the most economical model, with a starting price of 8999$. Pivot Shuttle AM Team XX Eagle Transmission 2023 on the other hand costs 13999$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail e-bikes
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2023 and its price was 8999$. Doing a quick comparison, we notice that Shuttle AM Ride SLX/XT price is 167.43% higher than the average cost of a Trail e-bike.
Overview of components
Fork
The Shuttle AM Ride SLX/XT comes factory-installed with the Fox Performance Float 36 fork. This has a travel range of 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Pivot Shuttle AM Ride SLX/XT e-bike has the Fox Performance Float X model installed, and has a travel of 148mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The wheels on Shuttle AM Ride SLX/XT are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Shuttle AM Ride SLX/XT comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Pivot Shuttle AM Ride SLX/XT e-bike has 4 sizes, in the range of 162 cm – 200 cm (5.31 ft – 6.56 ft). In short, you can easily find one that suits you.
Dropper post
Pivot Shuttle AM Ride SLX/XT includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
