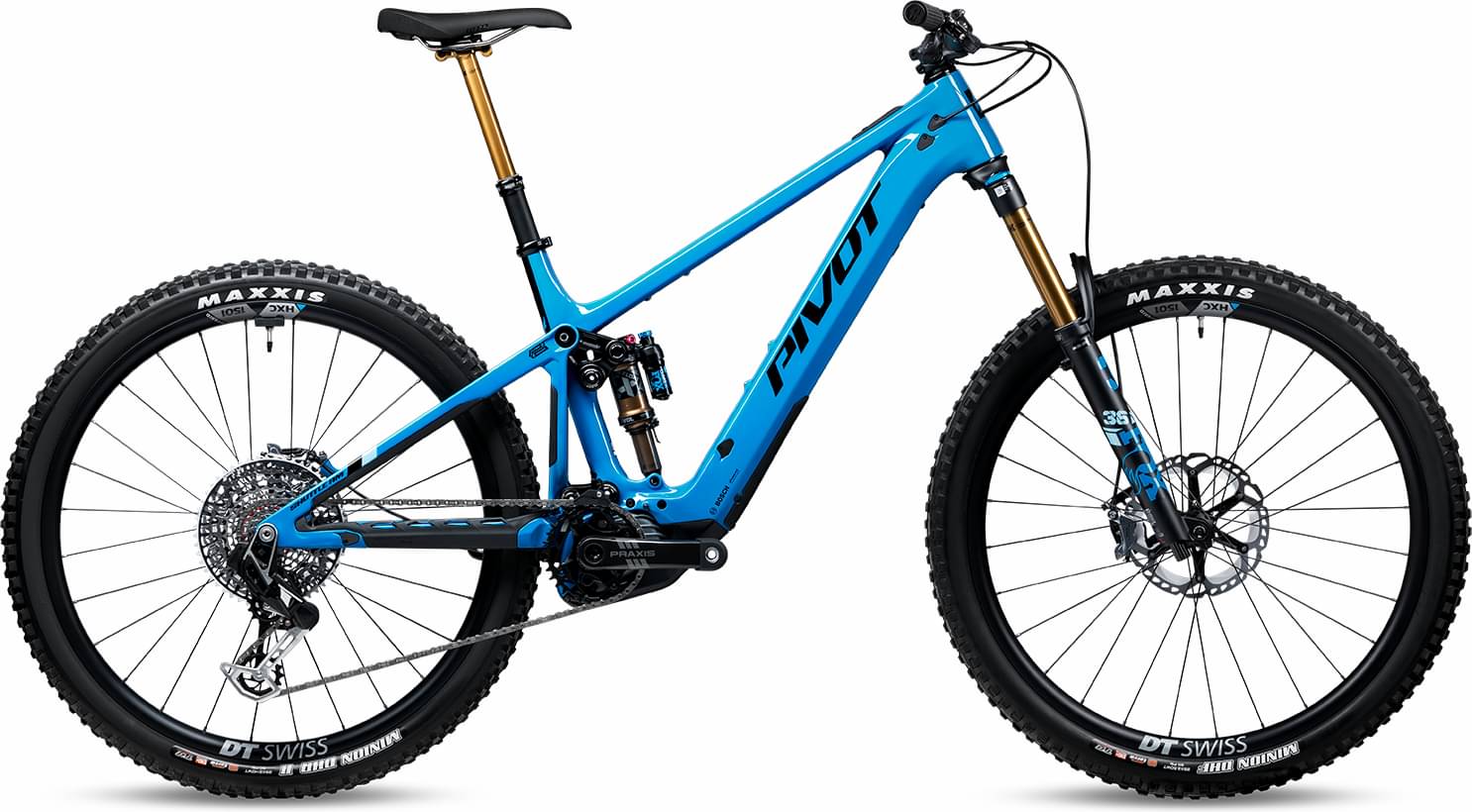

Pivot Shuttle AM Team XX Eagle Transmission 2023
2023 E-bike
Estimate price |
13,999$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 148mm -
Fork Fox Factory Float 36
-
Groupset XX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch Performance CX Race Edition 750wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
162cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Shuttle AM
Suspension Fork
Fox Factory 36 29", 44mm offset, GRIP2 - 160mm
Rear Shock
Fox Factory Float X
Drivetrain
Rear Derailleur
SRAM XX Eagle Transmission 12-Speed
Shift Levers
SRAM AXS Pod Controller
Cassette
SRAM XX 1297 Eagle Transmission 10-52t
Crank
Praxis Carbon eCranks E-MTB 34t
Chain
SRAM XX Eagle Transmission Flattop 12-Speed
Wheels
Rims
DT Swiss Hybrid HXC1501 Carbon, 30mm - 29"
15x110 F/12x157 R
Tires
Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRA
Maxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA
Brakes
Brakes
Shimano XTR M9120 4-piston
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Race Low Rise Carbon - 780mm (SM-MD), 800mm (LG-XL)
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Volt Team (Medium Width)
Seatpost
Fox Transfer Factory Series 150mm (SM), 175mm (MD-LG), 200mm (XL)
Motor & Battery
Motor
Bosch Performance CX Race Edition 750wh
Battery
Bosch Performance CX Race Edition 750wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.4 mm | 1.37 mm | 1.33 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 774 mm | 808 mm | 827 mm | 852 mm |
| Rake | 45 mm | 44 mm | 44 mm | 45 mm |
| Trail | 132 mm | 133 mm | 133 mm | 132 mm |
| Stack | 627 mm | 637 mm | 646 mm | 655 mm |
| Reach | 426 mm | 456 mm | 471 mm | 491 mm |
| Top Tube Length | 594 mm | 626 mm | 644 mm | 666 mm |
| Seat Tube Angle | 76.4 ° | 76.4 ° | 76.4 ° | 76.4 ° |
| Seat Tube Length | 378 mm | 399 mm | 432 mm | 470 mm |
| Head Tube Angle | 64.1 ° | 64.1 ° | 64.1 ° | 64.1 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1212 mm | 1246 mm | 1265 mm | 1290 mm |
| Bottom Bracket Drop | 29 mm | 29 mm | 29 mm | 29 mm |
| Standover Height | 710 mm | 710 mm | 710 mm | 710 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 162 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
Shuttle AM Team XX Eagle Transmission belongs to the Pivot E Shuttle Am model. 3 e-bikes variations carry this model name so far. You can easily view all of the Pivot E Shuttle Am e-bikes models from 2023, here.
Model range prices
The most economical model, the Pivot Shuttle AM Ride SLX/XT 2023 has a starting price of 8999$. Pivot Shuttle AM Team XX Eagle Transmission 2023 on the other hand is the most expensive at 13999$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail e-bikes average price
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Pivot Shuttle AM Team XX Eagle Transmission price was 13999$. Comparing the average cost of a Trail e-bike to this one, you will see that Shuttle AM Team XX Eagle Transmission price is 316.02% more expensive.
Shuttle AM Team XX Eagle Transmission components
Fork
This e-bike has the Fox Factory Float 36 fork installed. The fork’s travel is 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
From the factory, it comes with the Fox Factory Float X rear shock model, which has a travel of 148mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The Shuttle AM Team XX Eagle Transmission 2023 e-bike is equipped with 29″ carbon wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Shuttle AM Team XX Eagle Transmission comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Shuttle AM Team XX Eagle Transmission comes in 4 sizes, that range from 162 cm – 200 cm (5.31 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Pivot Shuttle AM Team XX Eagle Transmission includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
