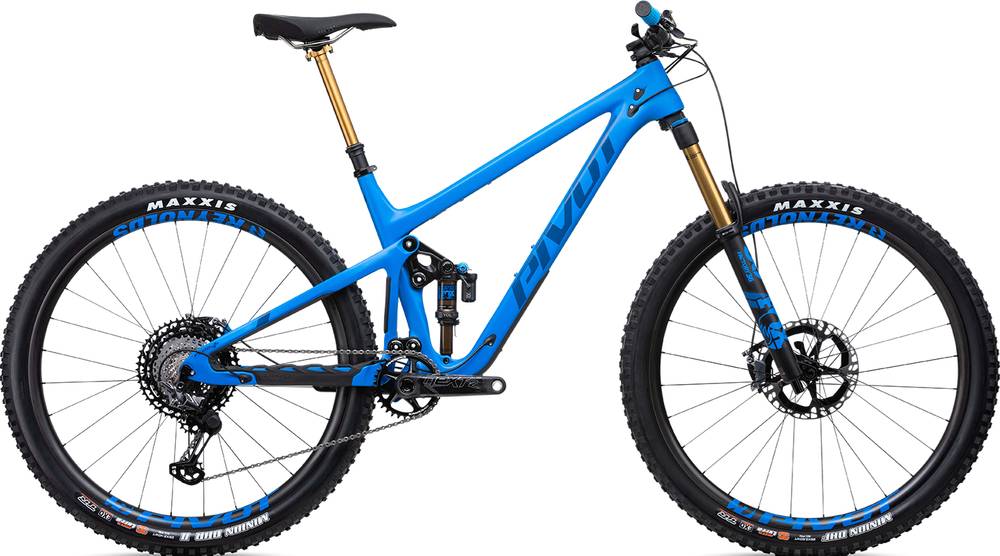

Pivot Switchblade Race XT – 29″ 2020
2020 Mountain
Estimate price |
5,499$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Fork Fox Performance Float 36
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Switchblade
Suspension Fork
Fox Performance 36 29", 44mm offset, GRIP - 160mm
Rear Shock
Fox Performance DPX2
Drivetrain
Rear Derailleur
Shimano XT SGS 12-Speed
Shift Levers
Shimano SLX M7100 12-Speed
Cassette
Shimano SLX M7100 10-51t
Crank
Race Face Ride 32t
Chain
Shimano CN-M7100 12-Speed
Wheels
Rims
DT Swiss M1900 w/ DT Swiss 370 hub, 30mm - 29"
Tires
Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRAMaxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA
Brakes
Brakes
Shimano SLX M7120 4-piston
Disk Rotors
Shimano SLX 6-bolt - 203mm Shimano SLX 6-bolt - 180mm
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Race Low Rise Aluminum
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Race High Tail Trail (XS-SM), Phoenix WTB Race Vigo (MD-XL)
Seatpost
Fox Transfer Performance Series 100mm (XS), 125mm (SM), 150mm (MD), 175mm (LG, XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.43 mm | 1.38 mm | 1.34 mm | 1.31 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm | 346 mm |
| Stack | 604 mm | 608 mm | 619 mm | 624 mm | 635 mm |
| Reach | 404 mm | 424 mm | 449 mm | 464 mm | 484 mm |
| Top Tube Length | 563 mm | 586 mm | 614 mm | 632 mm | 655 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 343 mm | 368 mm | 394 mm | 432 mm | 470 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 85 mm | 90 mm | 102 mm | 108 mm | 120 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1141 mm | 1163 mm | 1187 mm | 1210 mm | 1235 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 642 mm | 662 mm | 688 mm | 690 mm | 694 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
About this model
Switchblade Race XT – 29″ belongs to the Pivot Switchblade model. There are 108 bikes that carry this model name. Take a sneak peek at all Pivot Switchblade bikes models from 2020, by clicking here.
Model range prices
The most economical model, the Pivot Switchblade Race XT – 29″ 2020 has a starting price of 5499$. Pivot Switchblade Team XX1 AXS w/ Fox Live Valve – 29″ 2020 on the other hand is the most expensive at 12399$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro bikes
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2020 for 5499$. In conclusion, this bike price is 52.79% higher than the price of the average Enduro bike.
Switchblade Race XT – 29″ components
Fork
The fork installed on this bike is the Fox Performance Float 36 model. The travel on this model is 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When leaving the production line, the Switchblade Race XT – 29″ model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The Switchblade Race XT – 29″ has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 5 sizes. They vary from 147 cm – 200 cm (4.82 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Pivot Switchblade Race XT – 29″ includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
