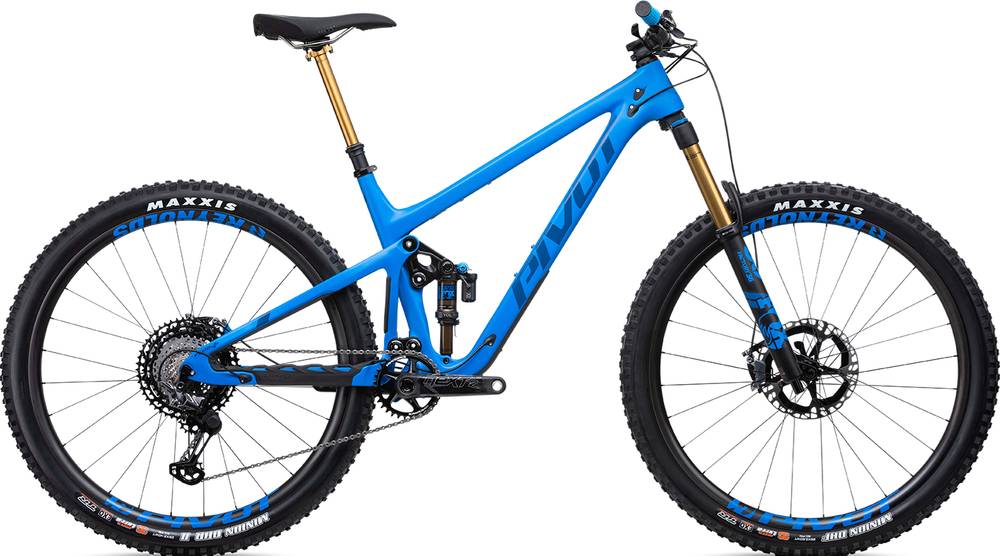

Pivot Switchblade Team XX1 AXS w/ Fox Live Valve – 29″ 2020
2020 Mountain
Estimate price |
12,399$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Fork Fox Factory Float 36
-
Groupset XX1 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
147cm - 164cm
SM
161cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Switchblade
Suspension Fork
Fox Factory Live 36 29", 44mm offset, FIT LIVE - 160mm
Rear Shock
Fox Factory Live Valve
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS 12-Speed
Shift Levers
SRAM XX1 Eagle AXS 12-Speed
Cassette
SRAM XG-1299 10-50t
Crank
SRAM XX1 Eagle DUB SL 32t
Chain
SRAM XX1 Eagle 12-Speed
Wheels
Rims
Reynolds Blacklabel Enduro Wide Trail w/ Industry Nine hub, 34mm - 29"
Tires
Maxxis Minion DHF 29" x 2.5" WT, TR, 3C, EXO+, MAXXTERRAMaxxis Minion DHRII 29" x 2.4" WT, TR, 3C, EXO+, MAXXTERRA
Brakes
Brakes
SRAM G2 Ultimate 4-piston
Disk Rotors
SRAM Centerline CenterLock - 200mmSRAM Centerline CenterLock - 180mm
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Team Low Rise Carbon
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Team High Tail Trail (XS-SM), Phoenix WTB Team Vigo (MD-XL)
Seatpost
Rock Shox Reverb AXS 100mm (XS), 125mm (SM), 150mm (MD), 170mm (LG, XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.5 mm | 1.43 mm | 1.38 mm | 1.34 mm | 1.31 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm | 346 mm | 346 mm |
| Stack | 604 mm | 608 mm | 619 mm | 624 mm | 635 mm |
| Reach | 404 mm | 424 mm | 449 mm | 464 mm | 484 mm |
| Top Tube Length | 563 mm | 586 mm | 614 mm | 632 mm | 655 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 343 mm | 368 mm | 394 mm | 432 mm | 470 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 85 mm | 90 mm | 102 mm | 108 mm | 120 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1141 mm | 1163 mm | 1187 mm | 1210 mm | 1235 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm | 28 mm | 28 mm |
| Standover Height | 642 mm | 662 mm | 688 mm | 690 mm | 694 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 161 cm | 171 cm | 179 cm | 187 cm |
| Rider Max Height | 164 cm | 174 cm | 182 cm | 189 cm | 200 cm |
Model Overview
Switchblade Team XX1 AXS w/ Fox Live Valve – 29″ belongs to the Pivot Switchblade model. There are 108 bikes that carry this model name. You can easily view all of the Pivot Switchblade bikes models from 2020, here.
Model range prices
Pivot Switchblade Race XT – 29″ 2020 is the cheapest bike model and costs 5499$. Pivot Switchblade Team XX1 AXS w/ Fox Live Valve – 29″ 2020 is the most expensive one and costs 12399$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro bikes
If you want an acceptable Enduro bike you should know that the average price is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2020 and its price was 12399$. If we compare this with the average Enduro bike cost we notice that the price is 244.51% more expensive.
Switchblade Team XX1 AXS w/ Fox Live Valve – 29″ components
Fork
The fork installed on this bike is the Fox Factory Float 36 model. The travel on this model is 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the Switchblade Team XX1 AXS w/ Fox Live Valve – 29″ bike is equipped with the 29″ carbon model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 147 cm – 200 cm (4.82 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
