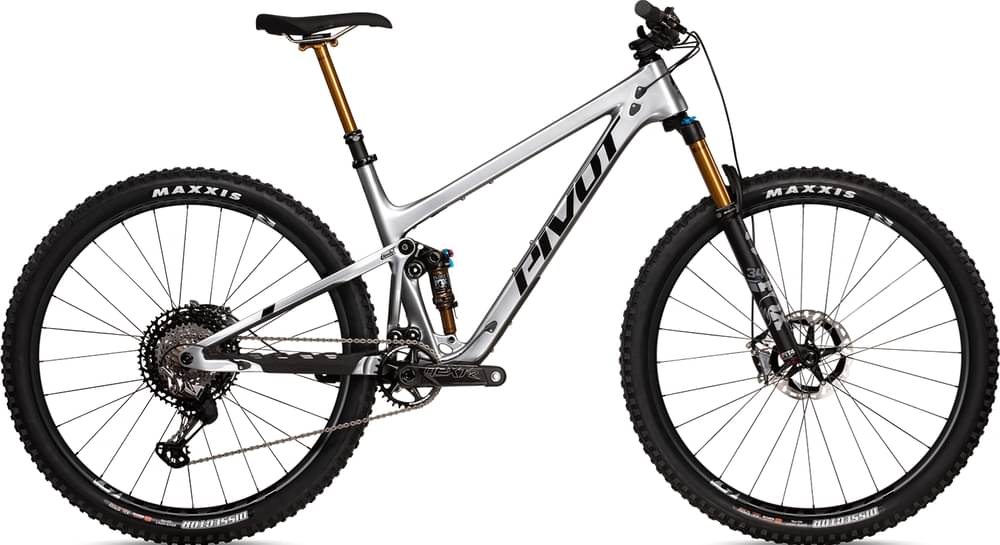

Pivot Trail 429 Pro XT/XTR 2021
2021 Mountain
Estimate price |
7,199$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS Low
147cm - 164cm
XS Low
147cm - 164cm
SM Low
161cm - 174cm
SM Low
161cm - 174cm
MD Low
171cm - 182cm
MD Low
171cm - 182cm
LG Low
179cm - 189cm
LG Low
179cm - 189cm
XL Low
187cm - 200cm
XL Low
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Trail 429
Suspension Fork
Fox Factory 34 29", FIT4 - 130mm
Rear Shock
Fox Factory DPS
Drivetrain
Rear Derailleur
Shimano XTR M9100 SGS 12-Speed
Shift Levers
Shimano XT M8100 ISPEC EV 12-Speed
Cassette
Shimano XT M8100 10-51t
Crank
Race Face Æffect R 32t
Chain
Shimano CN-M8100 12-Speed
Wheels
Rims
DT Swiss XM1700 w/ DT Swiss 350 hub & 36t Star Ratchet 30mm - 29" 15x110 F/12x157 R
Tires
Maxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA Maxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA
Brakes
Brakes
Shimano XT M8120 4-piston
Disk Rotors
Shimano XT CenterLock - 180mmShimano XT CenterLock - 180mm
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Team Low Rise Carbon - 780mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Volt Pro (Medium Width)
Seatpost
Fox Transfer Factory Series 100mm (XS), 125mm (SM), 150mm (MD) 175mm (LG) 200mm (XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS Low | XS Low | SM Low | SM Low | MD Low | MD Low | LG Low | LG Low | XL Low | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.46 mm | 1.38 mm | 1.41 mm | 1.32 mm | 1.34 mm | 1.29 mm | 1.31 mm | 1.26 mm | 1.28 mm |
| Bottom Bracket Height | 347 mm | 340 mm | 347 mm | 340 mm | 347 mm | 340 mm | 347 mm | 340 mm | 347 mm | 340 mm |
| Front Center | 699 mm | 699 mm | 723 mm | 723 mm | 758 mm | 758 mm | 775 mm | 775 mm | 800 mm | 800 mm |
| Rake | 43 mm | 42 mm | 43 mm | 42 mm | 43 mm | 42 mm | 43 mm | 42 mm | 43 mm | 42 mm |
| Trail | 116 mm | 121 mm | 116 mm | 121 mm | 116 mm | 121 mm | 116 mm | 121 mm | 116 mm | 121 mm |
| Stack | 578 mm | 582 mm | 587 mm | 591 mm | 598 mm | 602 mm | 603 mm | 607 mm | 615 mm | 619 mm |
| Reach | 404 mm | 399 mm | 424 mm | 419 mm | 454 mm | 449 mm | 469 mm | 464 mm | 489 mm | 484 mm |
| Top Tube Length | 566 mm | 567 mm | 589 mm | 590 mm | 622 mm | 623 mm | 638 mm | 639 mm | 661 mm | 663 mm |
| Seat Tube Angle | 75.5 ° | 75 ° | 75.5 ° | 75 ° | 75.5 ° | 75 ° | 75.5 ° | 75 ° | 75.5 ° | 75 ° |
| Seat Tube Length | 343 mm | 343 mm | 368 mm | 368 mm | 394 mm | 394 mm | 432 mm | 432 mm | 470 mm | 470 mm |
| Head Tube Angle | 66.5 ° | 66 ° | 66.5 ° | 66 ° | 66.5 ° | 66 ° | 66.5 ° | 66 ° | 66.5 ° | 66 ° |
| Head Tube Length | 85 mm | 85 mm | 95 mm | 95 mm | 107 mm | 107 mm | 112 mm | 112 mm | 125 mm | 125 mm |
| Chainstay Length | 424 mm | 426 mm | 424 mm | 426 mm | 424 mm | 426 mm | 424 mm | 426 mm | 424 mm | 426 mm |
| Wheelbase | 1122 mm | 1123 mm | 1146 mm | 1147 mm | 1181 mm | 1182 mm | 1198 mm | 1199 mm | 1223 mm | 1224 mm |
| Bottom Bracket Drop | 27 mm | 33 mm | 27 mm | 33 mm | 27 mm | 33 mm | 27 mm | 33 mm | 27 mm | 33 mm |
| Standover Height | 630 mm | 625 mm | 662 mm | 656 mm | 664 mm | 658 mm | 676 mm | 671 mm | 690 mm | 684 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 147 cm | 161 cm | 161 cm | 171 cm | 171 cm | 179 cm | 179 cm | 187 cm | 187 cm |
| Rider Max Height | 164 cm | 164 cm | 174 cm | 174 cm | 182 cm | 182 cm | 189 cm | 189 cm | 200 cm | 200 cm |
Model Overview
Trail 429 Pro XT/XTR belongs to the Pivot Trail model. 85 bikes variations carry this model name so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
The most economical model, the Pivot Trail 429 Race XT 2021 has a starting price of 5899$. Pivot Trail 429 Team XX1 AXS Live 2021 on the other hand is the most expensive at 13099$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2021 for 7199$. If we compare this with the average Trail bike cost we notice that the price is 160.64% higher.
Trail 429 Pro XT/XTR components
Fork
Pivot Trail 429 Pro XT/XTR 2021 bike is equipped with the Fox Factory Float 34 fork, and has 130mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Pivot Trail 429 Pro XT/XTR bike has the Fox Factory DPS model installed, and has a travel of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The Trail 429 Pro XT/XTR 2021 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Trail 429 Pro XT/XTR comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Trail 429 Pro XT/XTR comes in 10 sizes, that range from 147 cm – 200 cm (4.82 ft – 6.56 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The Pivot model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
