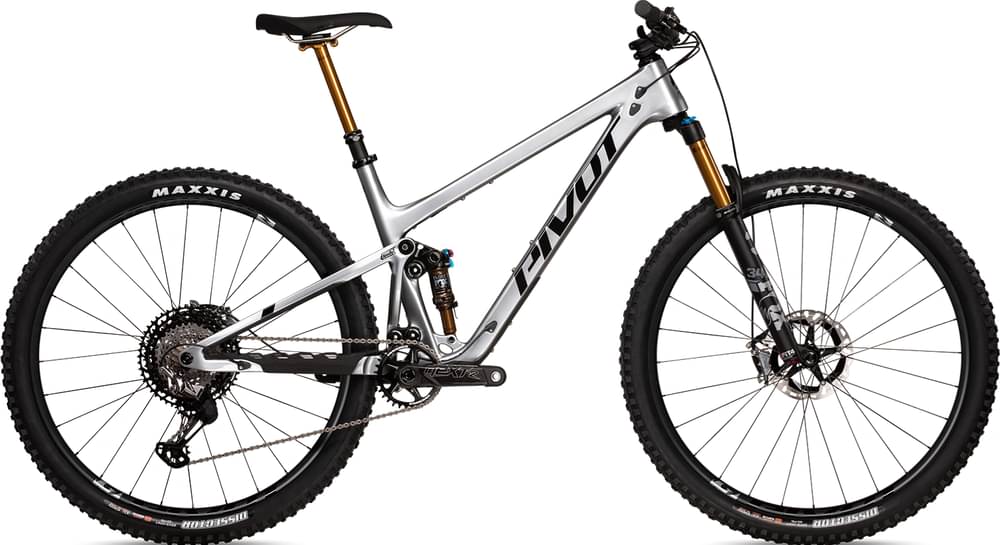

Pivot Trail 429 Team XTR Live 2021
2021 Mountain
Estimate price |
11,599$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset XTR, Race Face -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS Low
147cm - 164cm
XS Low
147cm - 164cm
SM Low
161cm - 174cm
SM Low
161cm - 174cm
MD Low
171cm - 182cm
MD Low
171cm - 182cm
LG Low
179cm - 189cm
LG Low
179cm - 189cm
XL Low
187cm - 200cm
XL Low
187cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Trail 429
Suspension Fork
Fox Factory Live 34 29", FIT LIVE - 130mm
Rear Shock
Fox Factory Live Valve
Drivetrain
Rear Derailleur
Shimano XTR M9100 SGS 12-Speed
Shift Levers
Shimano XTR M9100 ISPEC EV 12-Speed
Cassette
Shimano XTR M9100 10-51t
Crank
Race Face Next R 32t
Chain
Shimano CN-M9100 12-Speed
Wheels
Rims
Reynolds Blacklabel 309/289 w/ Industry Nine Hydra hub 30mm F 28mm R - 29" 15x110 F/12x157 R
Tires
Maxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA Maxxis Dissector 29" x 2.4" WT, TR, 3C, EXO, MAXXTERRA
Brakes
Brakes
Shimano XTR M9120 4-piston
Disk Rotors
Shimano XTR CenterLock - 180mmShimano XTR CenterLock - 180mm
Cockpit
Stem
Phoenix Team Enduro/Trail
Handlebar
Phoenix Team Low Rise Carbon - 780mm
Grips
Phoenix Factory Lock-On
Headset
Pivot Precision Sealed Cartridge
Seat
Saddle
Phoenix WTB Volt Team (Medium Width)
Seatpost
Fox Transfer Factory Series 100mm (XS), 125mm (SM), 150mm (MD) 175mm (LG) 200mm (XL)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS Low | XS Low | SM Low | SM Low | MD Low | MD Low | LG Low | LG Low | XL Low | XL Low |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.46 mm | 1.38 mm | 1.41 mm | 1.32 mm | 1.34 mm | 1.29 mm | 1.31 mm | 1.26 mm | 1.28 mm |
| Bottom Bracket Height | 347 mm | 340 mm | 347 mm | 340 mm | 347 mm | 340 mm | 347 mm | 340 mm | 347 mm | 340 mm |
| Front Center | 699 mm | 699 mm | 723 mm | 723 mm | 758 mm | 758 mm | 775 mm | 775 mm | 800 mm | 800 mm |
| Rake | 43 mm | 42 mm | 43 mm | 42 mm | 43 mm | 42 mm | 43 mm | 42 mm | 43 mm | 42 mm |
| Trail | 116 mm | 121 mm | 116 mm | 121 mm | 116 mm | 121 mm | 116 mm | 121 mm | 116 mm | 121 mm |
| Stack | 578 mm | 582 mm | 587 mm | 591 mm | 598 mm | 602 mm | 603 mm | 607 mm | 615 mm | 619 mm |
| Reach | 404 mm | 399 mm | 424 mm | 419 mm | 454 mm | 449 mm | 469 mm | 464 mm | 489 mm | 484 mm |
| Top Tube Length | 566 mm | 567 mm | 589 mm | 590 mm | 622 mm | 623 mm | 638 mm | 639 mm | 661 mm | 663 mm |
| Seat Tube Angle | 75.5 ° | 75 ° | 75.5 ° | 75 ° | 75.5 ° | 75 ° | 75.5 ° | 75 ° | 75.5 ° | 75 ° |
| Seat Tube Length | 343 mm | 343 mm | 368 mm | 368 mm | 394 mm | 394 mm | 432 mm | 432 mm | 470 mm | 470 mm |
| Head Tube Angle | 66.5 ° | 66 ° | 66.5 ° | 66 ° | 66.5 ° | 66 ° | 66.5 ° | 66 ° | 66.5 ° | 66 ° |
| Head Tube Length | 85 mm | 85 mm | 95 mm | 95 mm | 107 mm | 107 mm | 112 mm | 112 mm | 125 mm | 125 mm |
| Chainstay Length | 424 mm | 426 mm | 424 mm | 426 mm | 424 mm | 426 mm | 424 mm | 426 mm | 424 mm | 426 mm |
| Wheelbase | 1122 mm | 1123 mm | 1146 mm | 1147 mm | 1181 mm | 1182 mm | 1198 mm | 1199 mm | 1223 mm | 1224 mm |
| Bottom Bracket Drop | 27 mm | 33 mm | 27 mm | 33 mm | 27 mm | 33 mm | 27 mm | 33 mm | 27 mm | 33 mm |
| Standover Height | 630 mm | 625 mm | 662 mm | 656 mm | 664 mm | 658 mm | 676 mm | 671 mm | 690 mm | 684 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 147 cm | 147 cm | 161 cm | 161 cm | 171 cm | 171 cm | 179 cm | 179 cm | 187 cm | 187 cm |
| Rider Max Height | 164 cm | 164 cm | 174 cm | 174 cm | 182 cm | 182 cm | 189 cm | 189 cm | 200 cm | 200 cm |
Model Overview
Trail 429 Team XTR Live is part of the Pivot Trail model. Pivot launched 85 bikes of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Pivot Trail 429 Race XT 2021 is the most affordable bike of this model and has a price of 5899$. On the other hand, Pivot Trail 429 Team XX1 AXS Live 2021, is the most expensive and costs 13099$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 11599$. In conclusion, this bike price is 319.95% higher than the price of the average Trail bike.
Overview of components
Fork
The fork installed on this bike is the Fox Factory Float 34 model. The travel on this model is 130mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Pivot Trail 429 Team XTR Live bike has the Fox Factory Live Valve model installed, and has a travel of 120mm. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When leaving the production line, the Trail 429 Team XTR Live model has 29″ carbon wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The Trail 429 Team XTR Live has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Trail 429 Team XTR Live comes in 10 sizes, that range from 147 cm – 200 cm (4.82 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the Trail 429 Team XTR Live. Therefore, climbing or descending will be a breeze.
