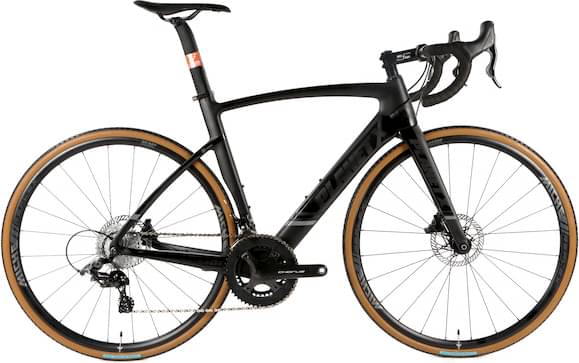

planetx Planet X EC-130E Rivet Rider Disc Campagnolo Chorus Carbon 2023
2023 Road
Estimate price |
3,657$
Weight | 8.6 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Chorus -
Suspension Rigid -
Drivetrain 2 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Toray T800
Drivetrain
Rear Derailleur
Campagnolo Chorus 12 Rear Derailleur
Front Derailleur
Campagnolo Chorus 12 Braze-On Front Derailleur
Cassette
Campagnolo Chorus 12 Sprocket / 11-32
Crank
Campagnolo Chorus 12 Crankset / 172.5mm / 52/36
Bottom Bracket
Campagnolo Ultra Torque Record Bottom Bracket Cups / OC12-REG 68mm BSA
Chain
Campagnolo Chorus 12x Chain 114L
Wheels
Rims
Miche Reflex DX Wheel Set CA Clincher 700c disc brake only
Tires
Panaracer Catalyst Sport 700c Wire Bead Tyre / 25mm / Black
Brakes
Brakes
Campagnolo Chorus Hydraulic Brakes
Cockpit
Stem
Selcof Zeta 6061 Alloy Stem / 100mm / 31.8mm / 7 Degree
Handlebar
Selcof Zeta V3 Alloy Road Bar / 42cm
Seat
Saddle
San Marco Monza Start Saddle / Black / Carbon Steel
Seatpost
Aero - 182g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.39 mm | 1.42 mm | 1.44 mm | 1.47 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 570 mm | 575 mm | 580 mm | 600 mm | 614 mm |
| Rake | 57 mm | 46 mm | 46 mm | 45 mm | 48 mm |
| Trail | 49 mm | 61 mm | 55 mm | 56 mm | 53 mm |
| Stack | 507 mm | 523 mm | 541 mm | 567 mm | 587 mm |
| Reach | 365 mm | 376 mm | 380 mm | 393 mm | 398 mm |
| Top Tube Length | 507 mm | 527 mm | 542 mm | 567 mm | 587 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 465 mm | 490 mm | 530 mm | 540 mm | 550 mm |
| Head Tube Angle | 72 ° | 72 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 110 mm | 125 mm | 140 mm | 165 mm | 195 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 972 mm | 976 mm | 977 mm | 997 mm | 1011 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
EC-130E Rivet Rider Disc Campagnolo Chorus Carbon completes the Planetx Ec 130e model. Planet X released 32 bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
The most economical model, the Planet X EC-130E Rivet Rider Disc SRAM Rival 22 Carbon 2023 has a starting price of 2310$. Planet X EC-130E Rivet Rider Disc Campagnolo Chorus Carbon 2023 on the other hand is the most expensive at 3283$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Aero bikes
Our math shows that the average cost of a dependable Aero bike is 4211$. However, this doesn’t mean that if you spend less money on an Aero bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Planet X EC-130E Rivet Rider Disc Campagnolo Chorus Carbon price was 3283$. Doing a quick comparison, we notice that EC-130E Rivet Rider Disc Campagnolo Chorus Carbon price is 28.27% smaller than the average cost of an Aero bike.
Aero bikes average weight
Aero bikes weigh an average of 7.34 kg (16.18 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
EC-130E Rivet Rider Disc Campagnolo Chorus Carbon weighs 8.6 kg (18.96 lbs) and is much heavier than the average. In conclusion, the average Aero bike weighs 17.17% less than EC-130E Rivet Rider Disc Campagnolo Chorus Carbon.
Overview of components
Fork material
EC-130E Rivet Rider Disc Campagnolo Chorus Carbon has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The EC-130E Rivet Rider Disc Campagnolo Chorus Carbon 2023 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Planet X EC-130E Rivet Rider Disc Campagnolo Chorus Carbon is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
