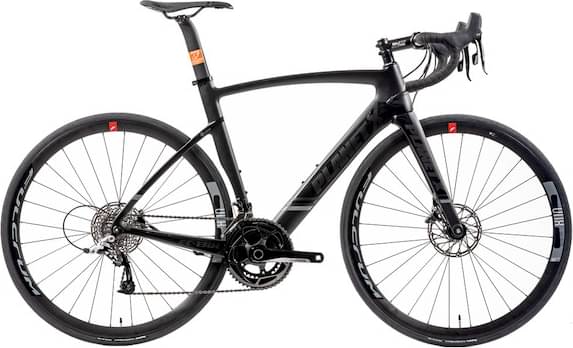

planetx Planet X EC-130E Rivet Rider Disc SRAM Rival 22 Carbon 2023
2023 Road
Estimate price |
2,573$
Weight | 8.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Toray T800
Drivetrain
Rear Derailleur
SRAM Rival 11 Rear Mech / Medium Cage
Front Derailleur
SRAM Rival 11 Front Mech / Braze On
Bottom Bracket
SRAM GXP XR Bottom Bracket (With Spacers) / 68/73mm 68mm BSA
Wheels
Rims
700c disc brake only
Brakes
Brakes
SRAM Rival Hydraulic Brakes
Seat
Seatpost
Aero - 182g
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.39 mm | 1.42 mm | 1.44 mm | 1.47 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 570 mm | 575 mm | 580 mm | 600 mm | 614 mm |
| Rake | 57 mm | 46 mm | 46 mm | 45 mm | 48 mm |
| Trail | 49 mm | 61 mm | 55 mm | 56 mm | 53 mm |
| Stack | 507 mm | 523 mm | 541 mm | 567 mm | 587 mm |
| Reach | 365 mm | 376 mm | 380 mm | 393 mm | 398 mm |
| Top Tube Length | 507 mm | 527 mm | 542 mm | 567 mm | 587 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 465 mm | 490 mm | 530 mm | 540 mm | 550 mm |
| Head Tube Angle | 72 ° | 72 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 110 mm | 125 mm | 140 mm | 165 mm | 195 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 972 mm | 976 mm | 977 mm | 997 mm | 1011 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
EC-130E Rivet Rider Disc SRAM Rival 22 Carbon is part of the Planetx Ec 130e model. Planet X launched 32 bikes of this model so far. Take a sneak peek at all Planetx Ec 130e bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Planet X EC-130E Rivet Rider Disc SRAM Rival 22 Carbon 2023 has a starting price of 2310$. Planet X EC-130E Rivet Rider Disc Campagnolo Chorus Carbon 2023 on the other hand is the most expensive at 3283$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Aero bikes
Our math shows that the average cost of a dependable Aero bike is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 2310$. If we compare this with the average Aero bike cost we notice that the price is 82.29% lower.
Aero bikes average weight
Aero bikes weigh an average of 7.34 kg (16.18 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
EC-130E Rivet Rider Disc SRAM Rival 22 Carbon weighs 8.9 kg (19.62 lbs) and is much heavier than the average. To sum up, it’s 21.25% heavier than the average weight of Aero bikes.
EC-130E Rivet Rider Disc SRAM Rival 22 Carbon components
Fork material
EC-130E Rivet Rider Disc SRAM Rival 22 Carbon has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When leaving the production line, the EC-130E Rivet Rider Disc SRAM Rival 22 Carbon model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The EC-130E Rivet Rider Disc SRAM Rival 22 Carbon comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
