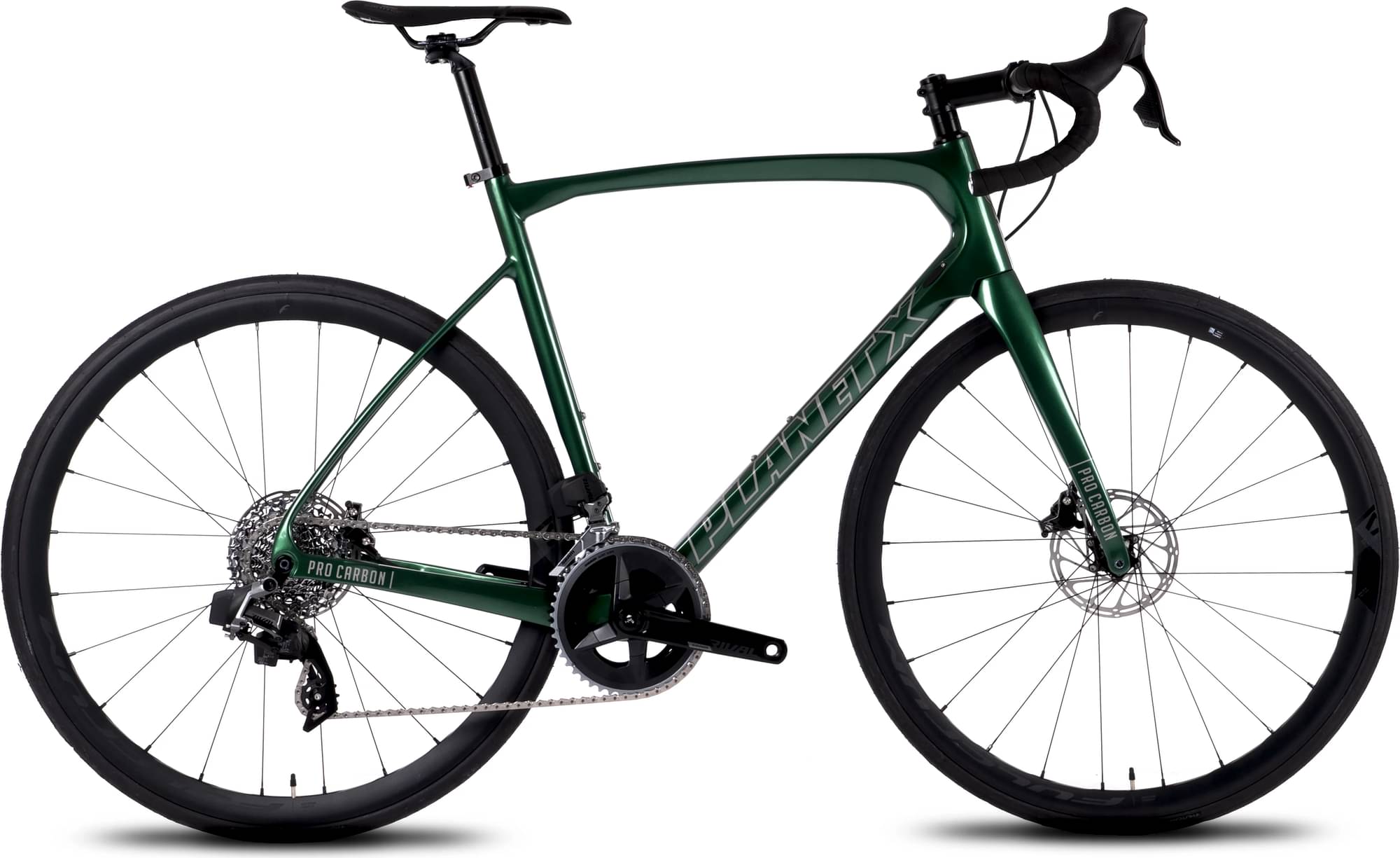

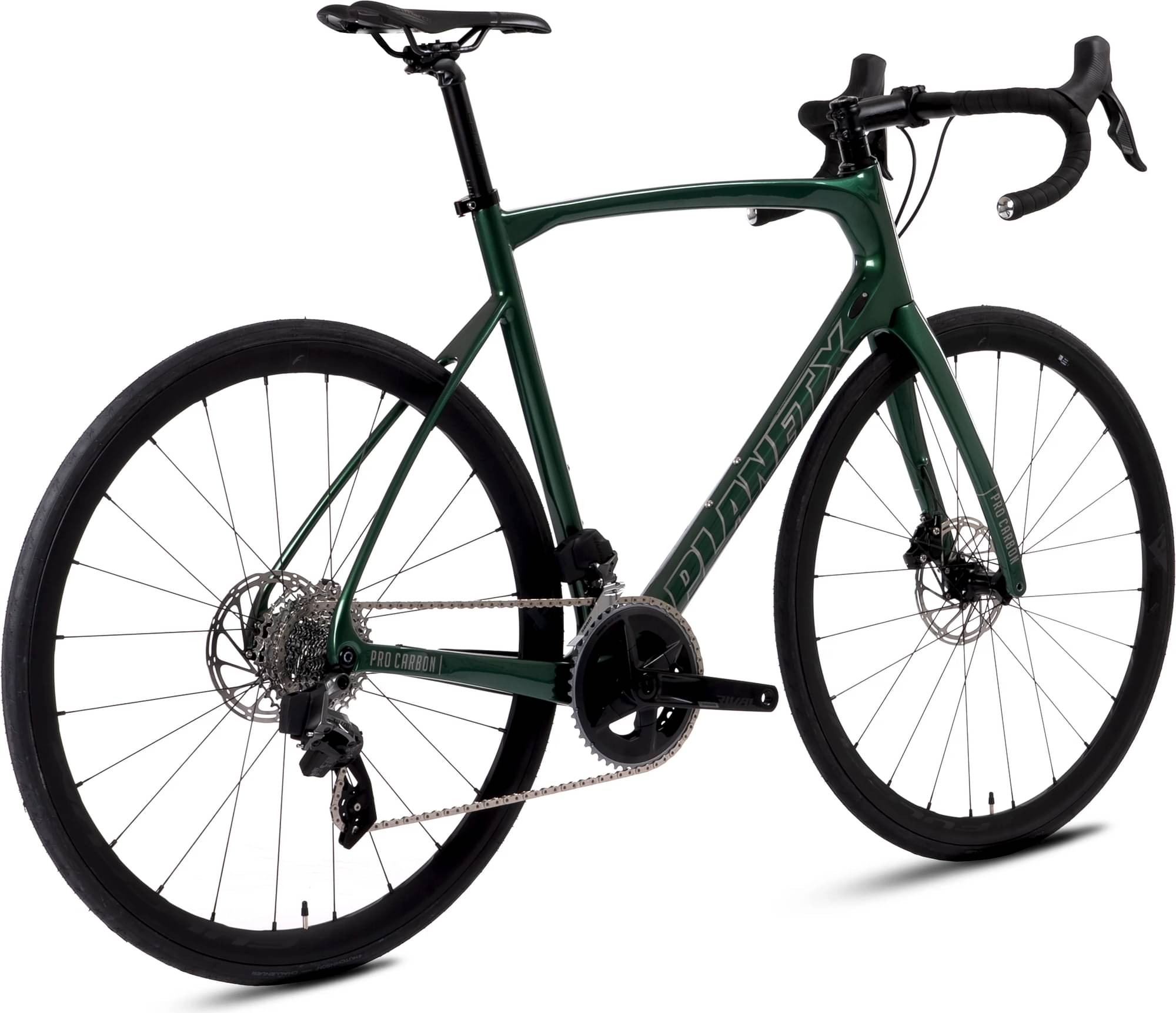

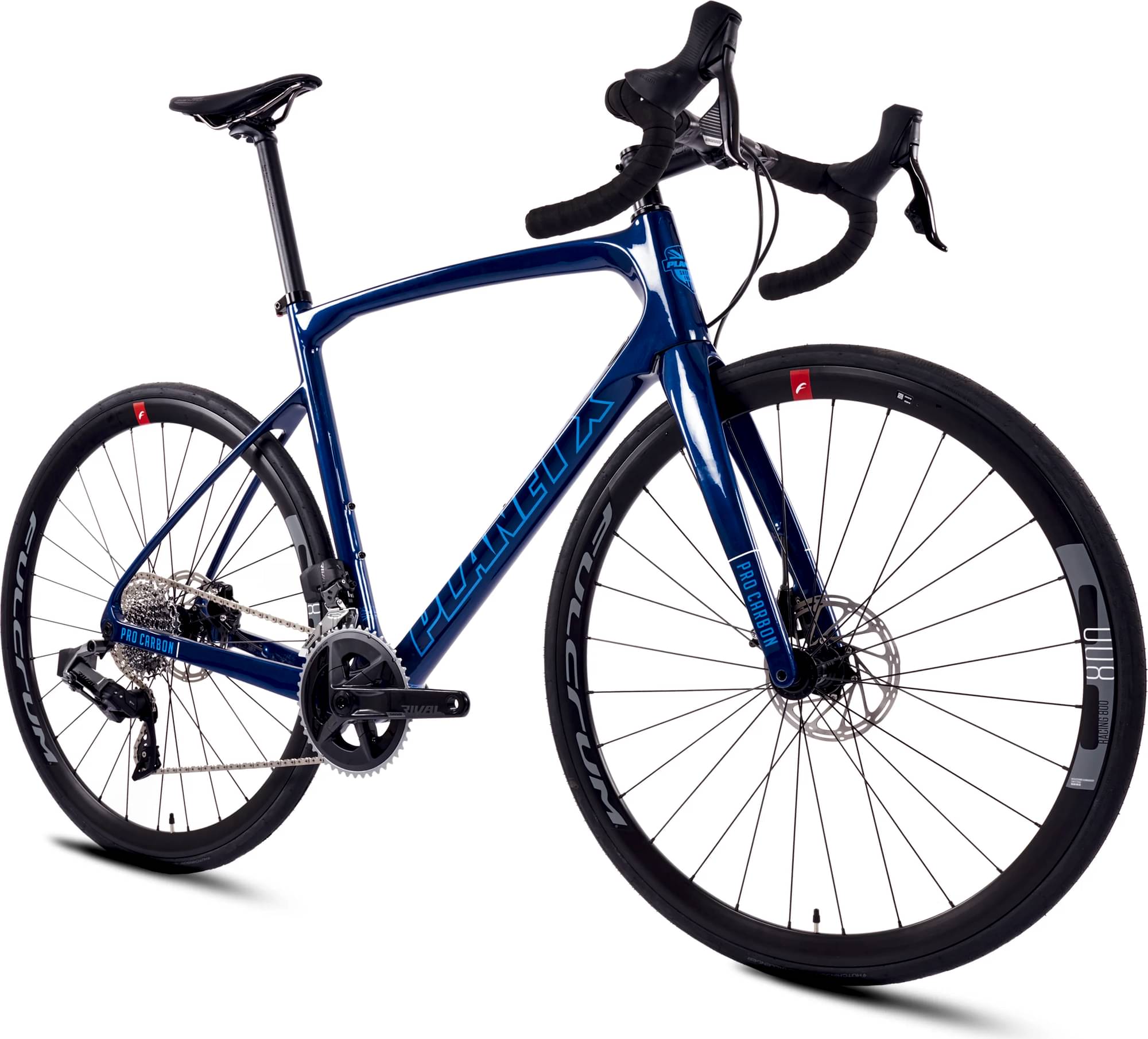

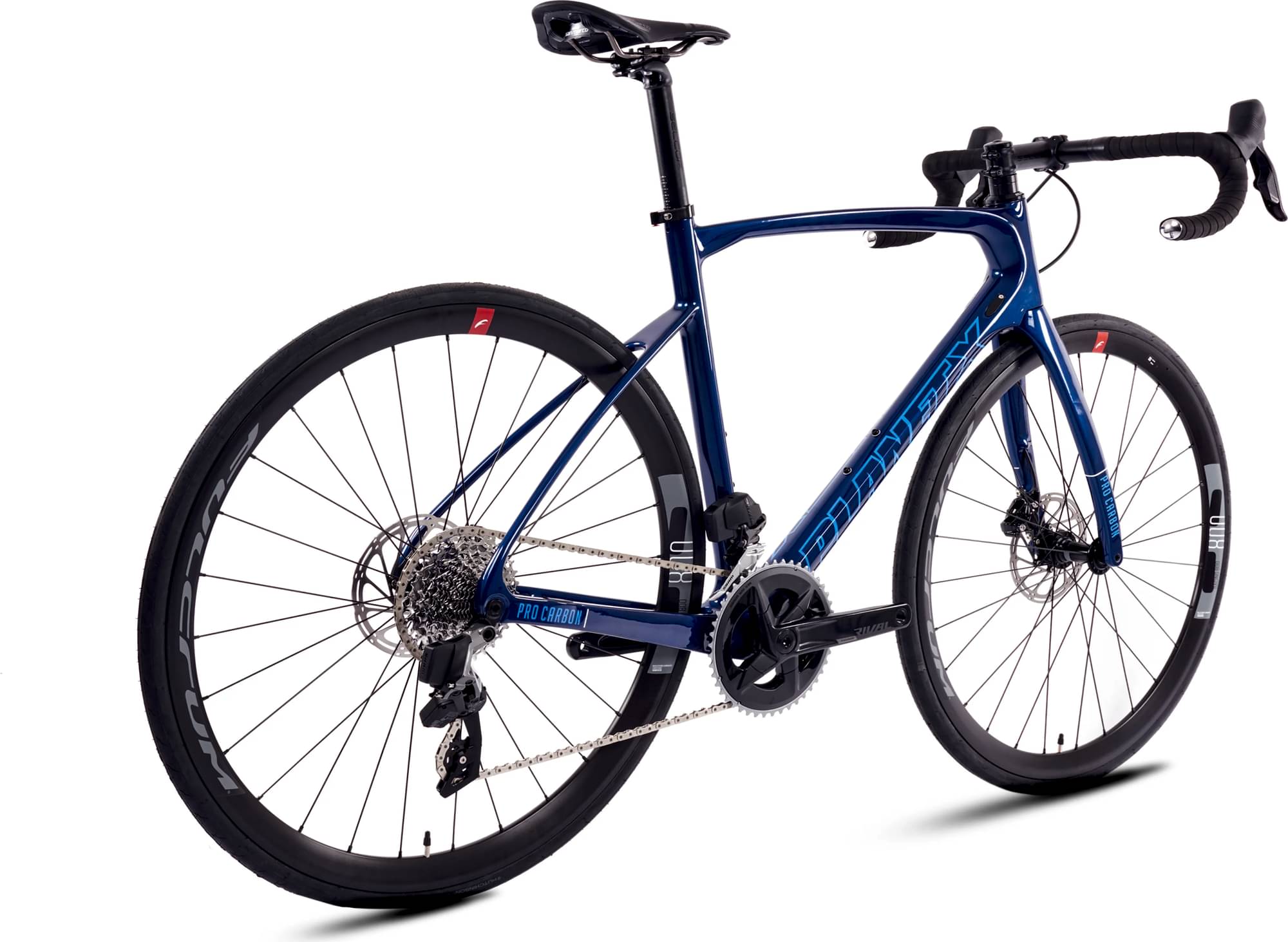

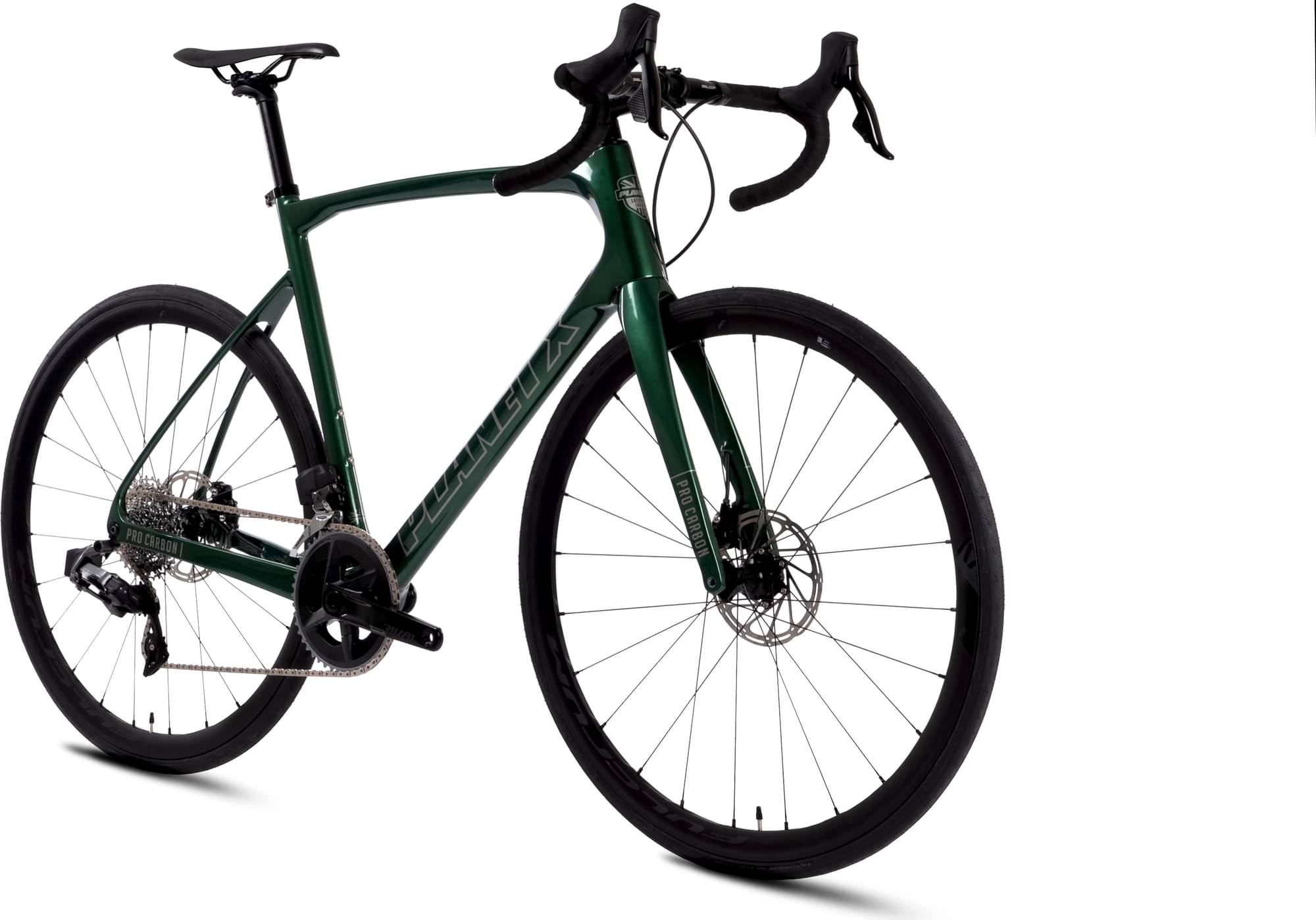

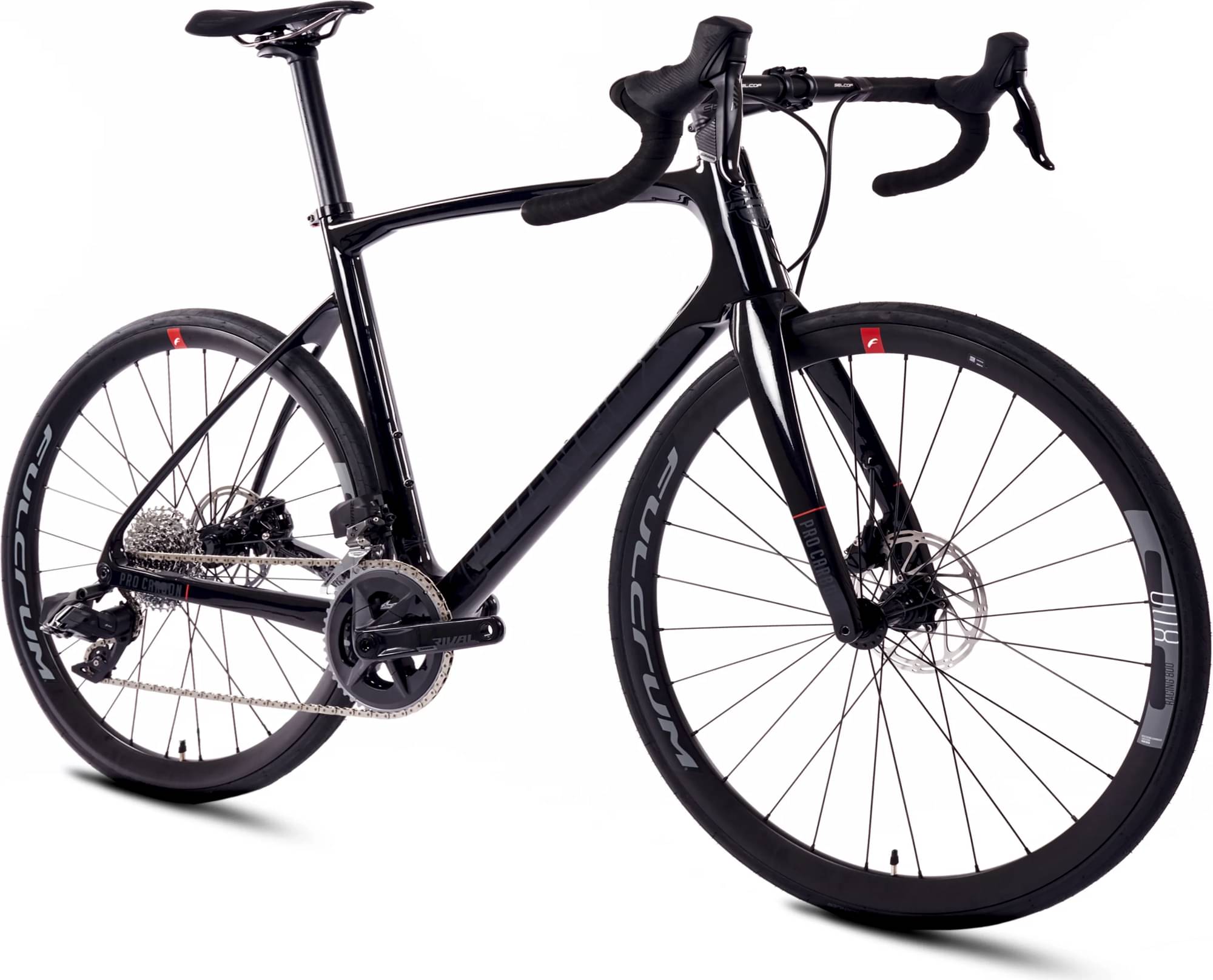

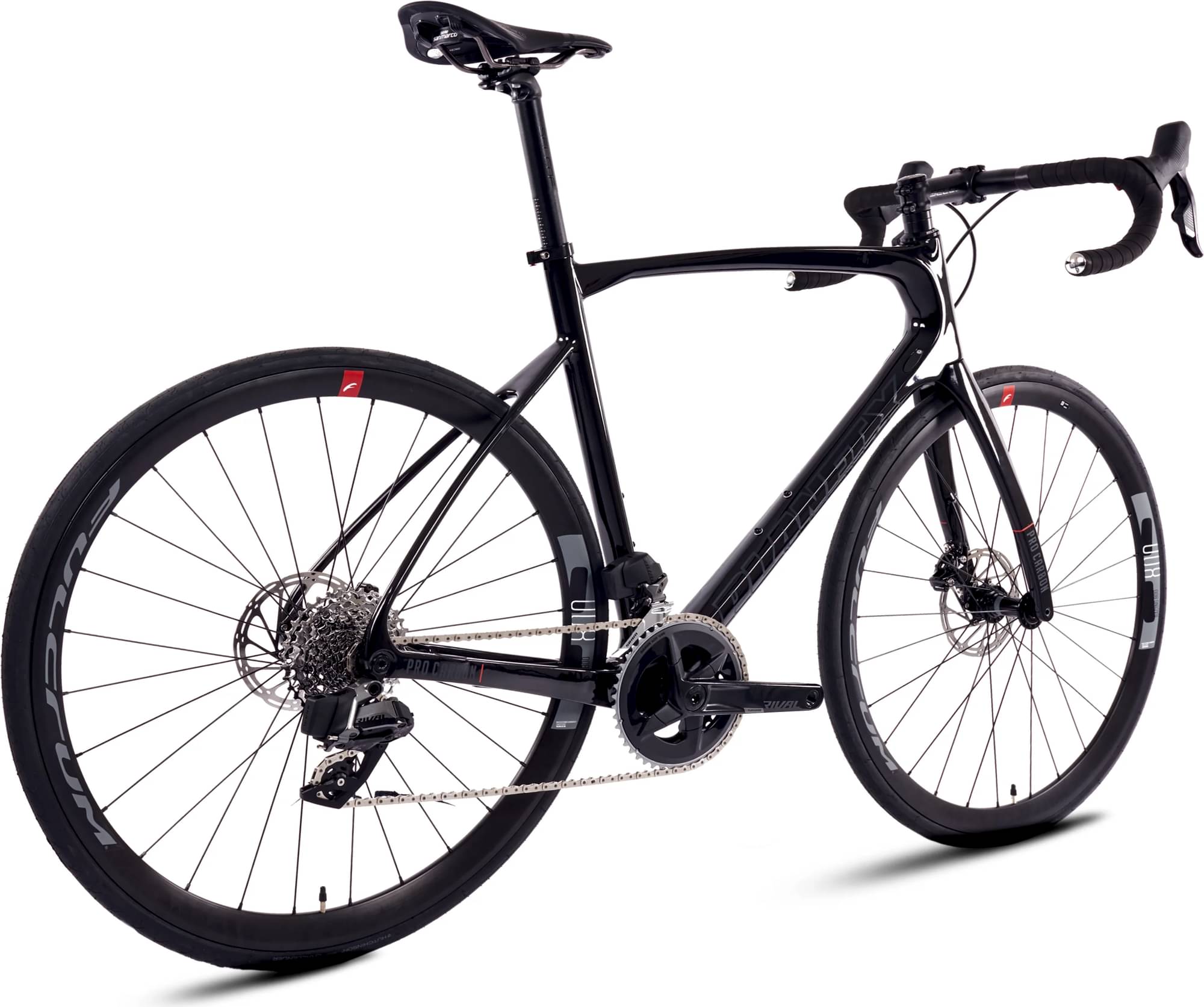

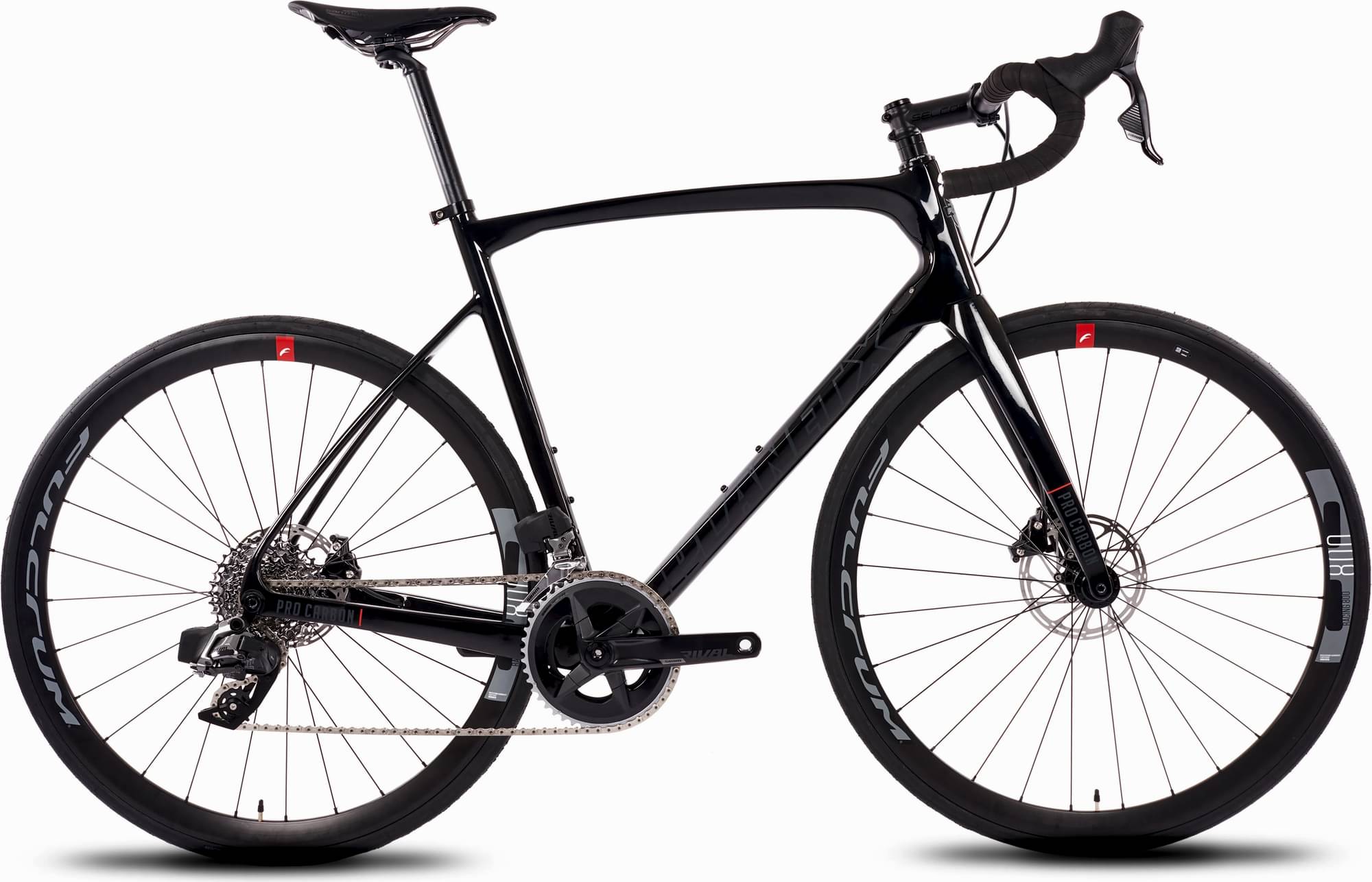

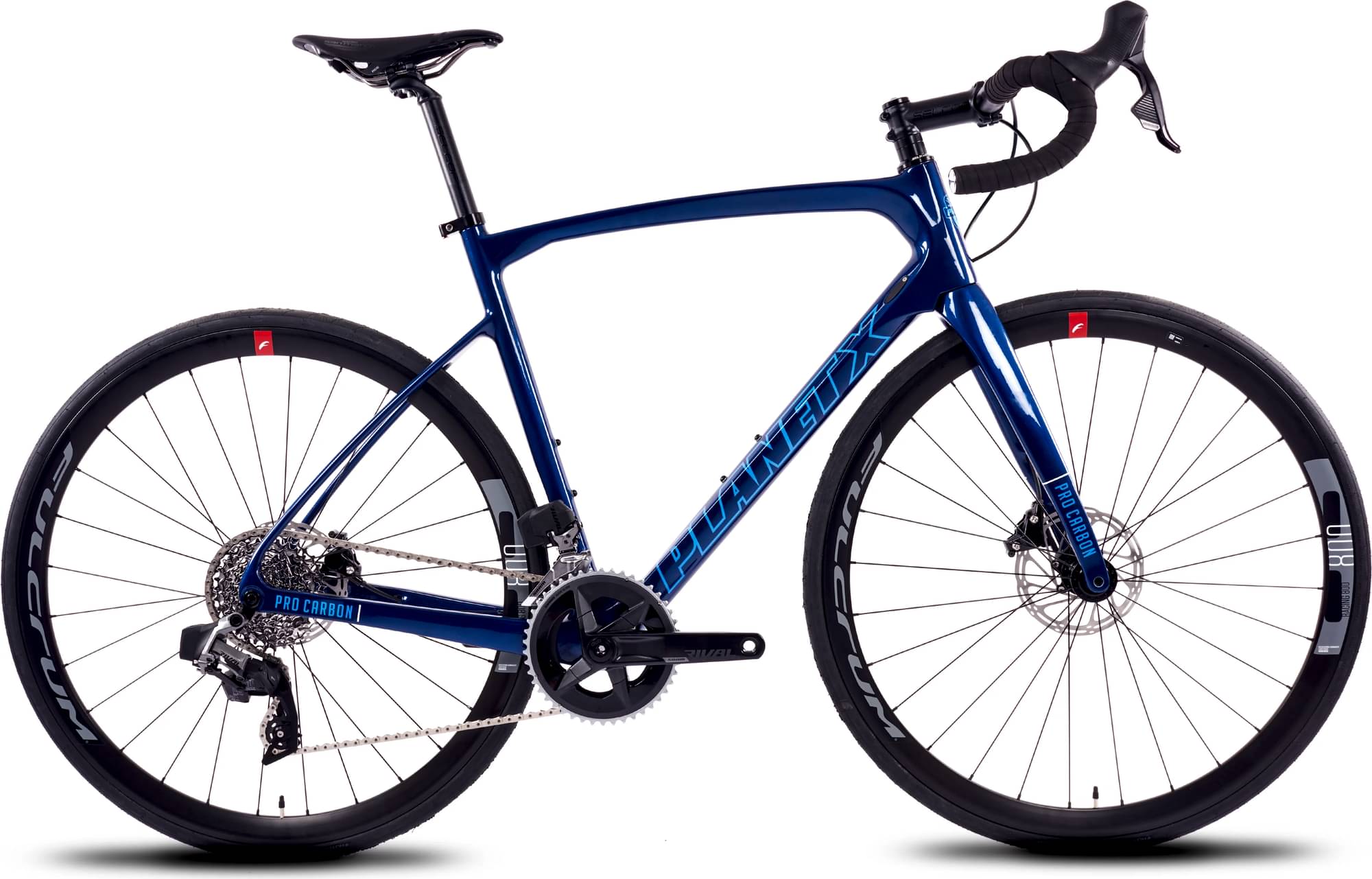

planetx Planet X Pro Carbon SRAM Rival AXS 2023
2023 Road
Estimate price |
3,521$
Weight | 8.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
165cm - 172cm
MD
170cm - 177cm
LG
175cm - 188cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Rear Derailleur
SRAM Rival AXS 12 Speed Rear Mech / Max 36T
Front Derailleur
SRAM Rival AXS Front Mech / Braze On
Cassette
SRAM Rival XG-1250 12 Speed Cassette / 10-36 Tooth
Crank
SRAM Rival AXS 12 Speed Chainset / 172.5mm / 46-33 Tooth
Bottom Bracket
SRAM DUB BSA Bottom Bracket / 68mm Road / 73mm Road Wide
Chain
SRAM Rival AXS 12 Speed Chain / 120 Link
Wheels
Rims
Fulcrum Racing 800 Disc 700c Centrelock Wheelset / Front 12mm / Rear 12 x 142mm / SRAM AXS 12 Speed
Tires
Hutchinson Challenger 700c Folding Tyre / 25mm / Black
Brakes
Brakes
Hydraulic Disc
Cockpit
Stem
Selcof Zeta 6061 Alloy Stem / 100mm / 31.8mm / 7 Degree
Handlebar
Selcof Zeta V3 Alloy Road Bar / 42cm
Seat
Saddle
San Marco Shortfit Open-Fit Start-Up Superwide Saddle / Xsilite Rail
Seatpost
Selcof Zeta 6061 Alloy Seatpost / 27.2mm / 350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 470mm XSM | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.34 mm | 1.37 mm | 1.45 mm | 1.46 mm | 1.47 mm |
| Bottom Bracket Height | 268 mm | 268 mm | 268 mm | 268 mm | 268 mm |
| Front Center | 576 mm | 580 mm | 582 mm | 595 mm | 606 mm |
| Rake | 53 mm | 53 mm | 45 mm | 45 mm | 45 mm |
| Trail | 51 mm | 48 mm | 55 mm | 64 mm | 66 mm |
| Stack | 513 mm | 529 mm | 556 mm | 573 mm | 594 mm |
| Reach | 384 mm | 386 mm | 383 mm | 392 mm | 403 mm |
| Top Tube Length | 517 mm | 532 mm | 547 mm | 567 mm | 587 mm |
| Seat Tube Angle | 75.5 ° | 74.5 ° | 73.5 ° | 73 ° | 72.75 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 560 mm | 590 mm |
| Head Tube Angle | 72.2 ° | 72.5 ° | 73 ° | 73 ° | 73.5 ° |
| Head Tube Length | 110 mm | 125 mm | 151 mm | 170 mm | 190 mm |
| Chainstay Length | 407 mm | 407 mm | 410 mm | 412 mm | 412 mm |
| Wheelbase | 982 mm | 988 mm | 982 mm | 989 mm | 996 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview
Pro Carbon SRAM Rival AXS is a Planetx Pro Carbon model. 24 bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Planet X Pro Carbon Disc SRAM Rival 22 2023 is the most affordable bike of this model and has a price of 2432$. On the other hand, Planet X Pro Carbon Shimano Ultegra Di2 2023, is the most expensive and costs 4378$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Race bikes
If you want an acceptable Race bike you should know that the average price is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3161$. Comparing the average cost of a Race bike to this one, you will see that Pro Carbon SRAM Rival AXS price is 5.98% smaller.
Race bikes average weight
The average weight for Race bikes is 6.82 kg (15.04 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 8.8 kg (19.4 lbs), Planet X bike is much heavier than average. In short, the average Race bike weight is 29.03% lower than this one.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The Pro Carbon SRAM Rival AXS 2023 bike is equipped with 700c carbon wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Pro Carbon SRAM Rival AXS has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
