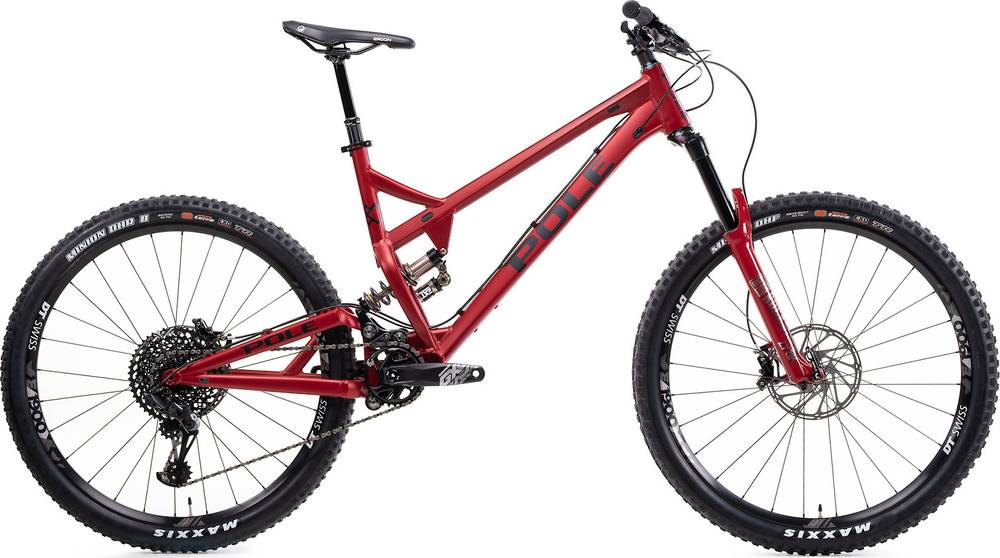

Pole Evolink 140 EN Coil 2020
2020 Mountain
Estimate price |
5,260$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 140mm -
Fork RockShox Lyrik Ultimate
-
Groupset X01 Eagle, XX1 Eagle -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Lyrik Ultimate RC2 29", Boost, 15mm x 110mm
Rear Shock
EXT STORIA LOK V3 Coil, 200mm x 57mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed
Front Derailleur
None
Shift Levers
SRAM XX1 Eagle, 12-speed
Cassette
SRAM Eagle, XG-1299, 10-50 tooth
Crank
Truvativ Descendant Carbon Eagle, Boost
Bottom Bracket
SRAM DUB, 73mm threaded
Chain
SRAM XX1 Eagle, 12-speed
Chain Guide
OneUp Components
Pedals
None
Wheels
Front Hub
DT Swiss EX1501 29" wheelset, 15mm x 110mm, 148mm x 12mm
Rear Hub
DT Swiss EX1501 29" wheelset, 15mm x 110mm, 148mm x 12mm
Rims
DT Swiss EX1501 29" wheelset
Spokes
DT Swiss EX1501 29" wheelset
Tires
Front: Maxxis Minion DHF 29" x 2.5", EXO, TR, 3C, Rear: Maxxis Aggressor 29" x 2.3", EXO, TR
Brakes
Brakes
SRAM Guide RSC, 180mm rotors
Brake Levers
SRAM Guide RSC
Cockpit
Stem
Truvativ Descendant
Handlebar
Truvativ Descendant Carbon Riser, 35mm diameter
Grips
Ergon
Headset
Cane Creek Forty, ZS44/ZS56
Seat
Saddle
Ergon SME3 Pro, black and blue
Seatpost
Bikeyoke Revive, 125mm on S, 160mm on M/L/XL
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.33 mm | 1.25 mm | 1.19 mm |
| Bottom Bracket Height | 394 mm | 394 mm | 394 mm | 394 mm |
| Front Center | 803 mm | 833 mm | 863 mm | 888 mm |
| Rake | 34 mm | 34 mm | 34 mm | 34 mm |
| Trail | 141 mm | 141 mm | 141 mm | 141 mm |
| Stack | 642 mm | 642 mm | 642 mm | 642 mm |
| Reach | 453 mm | 483 mm | 513 mm | 538 mm |
| Top Tube Length | 587 mm | 617 mm | 647 mm | 672 mm |
| Seat Tube Angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Seat Tube Length | 420 mm | 440 mm | 480 mm | 510 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 135 mm | 135 mm | 135 mm | 135 mm |
| Chainstay Length | 458 mm | 458 mm | 458 mm | 458 mm |
| Wheelbase | 1260 mm | 1290 mm | 1320 mm | 1345 mm |
| Bottom Bracket Drop | -20 mm | -20 mm | -20 mm | -20 mm |
| Standover Height | 725 mm | 725 mm | 725 mm | 725 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Evolink 140 EN Coil completes the Pole Evolink model. There are 25 bikes that carry this model name. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
The most economical model, the Pole Evolink 110 TR 2020 has a starting price of 3150$. Pole Evolink 158 LE Coil 2020 on the other hand is the most expensive at 8110$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2020 for 5260$. Comparing the average cost of a Trail bike to this one, you will see that Evolink 140 EN Coil price is 90.44% higher.
Overview of components
Fork
The RockShox Lyrik Ultimate is included from the factory. It has a travel distance of 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
As for the rear shock, this bike has the EXT STORIA LOK V3 Coil model, with a travel of 140mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The Evolink 140 EN Coil 2020 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the Evolink 140 EN Coil. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
