Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour X1
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
MD
165cm - 175cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Quick Release 9x100mm, Cartridge bearing BB
Suspension Fork
SR Suntour XCE28, 100mm Travel, 9x100mm QR
Drivetrain
Shift Levers
Shimano Tourney ST-EF41, 3x7-Speed
Crank
Steel Crankset, 42x34x24T
Chain
KMC HV-500, 7-Speed
Pedals
Nylon Platform
Wheels
Front Hub
Alloy, 9mm Thru-Axle, 100mm spacing
Rear Hub
Alloy, 9mm Thru-Axle, 135mm spacing
Rims
Polygon, Alloy double wall, 20mm inner, 32H
Tires
DELI 27.5"x2.1"
Brakes
Brakes
Front: Shimano ST-EF41 Lever, Tektro MD-M280 Caliper, 160mm Rotor, Rear: Shimano ST-EF41 Lever, Tektro MD-M280 Caliper, 160mm Rotor
Cockpit
Stem
Entity Alloy, 45mm length, 31.8mm clamp
Handlebar
Polygon Steel, 31.8mm Clamp, 680mm wide
Seat
Saddle
Polygon MTB Saddle, Steel
Seatpost
Entity 27.2x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD |
|---|---|
| Stack Reach Ratio | 1.48 mm |
| Bottom Bracket Height | 298 mm |
| Front Center | 660 mm |
| Rake | 42 mm |
| Trail | 91 mm |
| Stack | 603 mm |
| Reach | 407 mm |
| Top Tube Length | 590 mm |
| Seat Tube Angle | 73 ° |
| Seat Tube Length | 456 mm |
| Head Tube Angle | 69 ° |
| Head Tube Length | 105 mm |
| Chainstay Length | 435 mm |
| Wheelbase | 1091 mm |
| Bottom Bracket Drop | 47 mm |
| Standover Height | 746 mm |
| Wheels | 27" |
| Rider Min Height | 165 cm |
| Rider Max Height | 175 cm |
Model Overview
Cascade 2 belongs to the Polygon Cascade model. 15 bikes variations carry this model name so far. Take a sneak peek at all Polygon Cascade bikes models from 2024, by clicking here.
Model range prices
Polygon Cascade 2 2024 is the most economical model, with a starting price of 343$. Polygon Cascade 4 2024 on the other hand costs 413$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 343$. Comparing this to the average Crosscountry bike price, we see that the price is 455.39% smaller.
Cascade 2 components
Fork

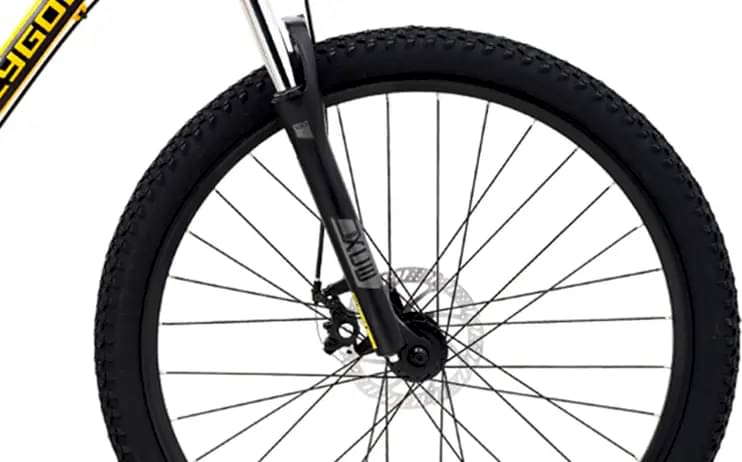

The Suntour X1 is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When leaving the production line, the Cascade 2 model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Cascade 2 has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
Polygon Cascade 2 2024 is available in one size only. In conclusion, make sure it fits you, or look for another model.
