Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour X1
-
Groupset Tourney, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components

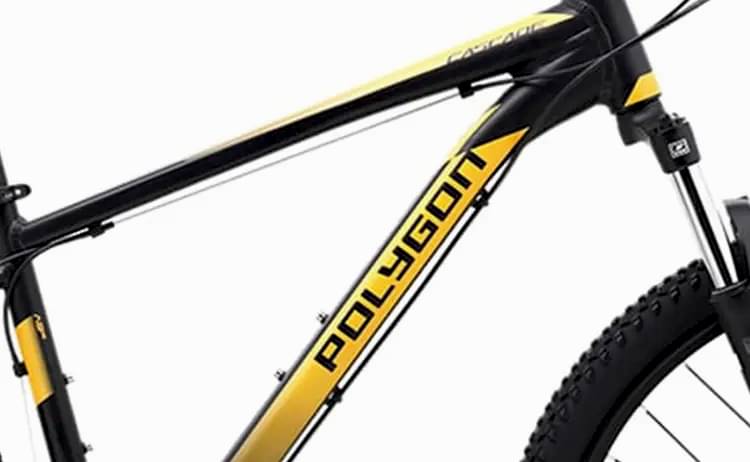

Frame
Frame
2023 Polygon Cascade 4, Quick Release 9x100mm, Cartridge bearing BB
Suspension Fork
SR Suntour XCE, 100mm Travel, 9x100mm QR

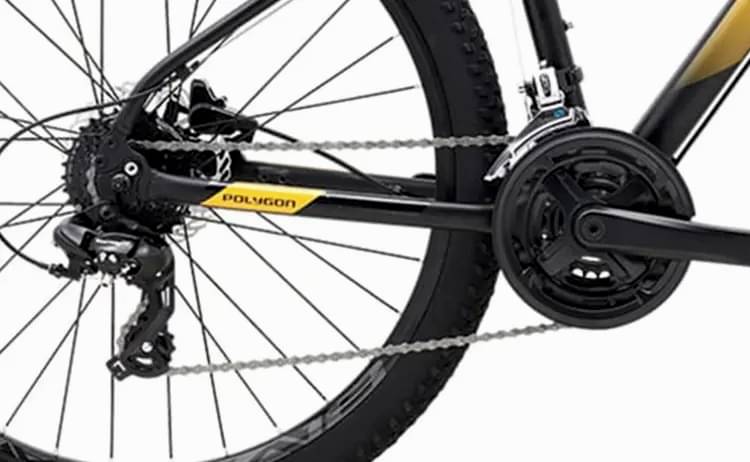

Drivetrain
Rear Derailleur
Shimano RD-TX800, 8-Speed
Shift Levers
Shimano Altus SL-M315 3x8-Speed
Cassette
Shimano Altus CS-HG200, 8-Speed, 11-32T
Crank
ProWheel TA-CQ68, 42x34x24T, 170mm
Chain
KMC Z-7, 8-Speed
Pedals
Nylon Platform
Wheels
Front Hub
Alloy, 9mm Thru-Axle, 100mm spacing
Rear Hub
Alloy, 9mm Thru-Axle, 135mm spacing
Rims
Polygon, alloy double wall, 20mm inner, 32H
Tires
DELI 27.5x2.1"
Brakes
Brakes
Front: Clarks Clout, Hydraulic Disc, 160mm Rotor, Rear: Clarks Clout, Hydraulic Disc, 160mm Rotor

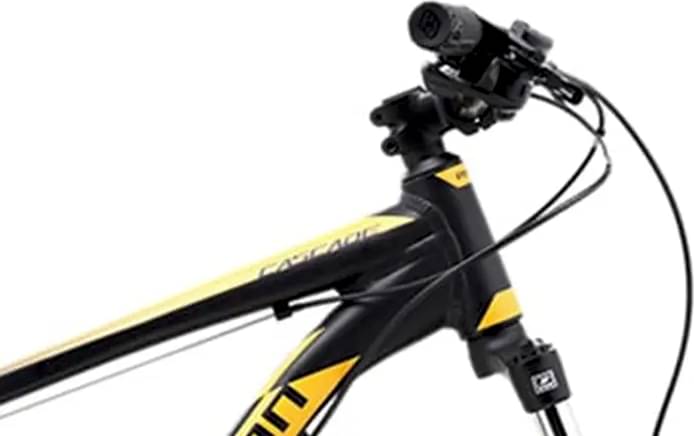

Cockpit
Stem
Entity Alloy, 45mm length, 31.8mm clamp
Handlebar
Polygon Steel, 31.8mm Clamp, 680mm wide

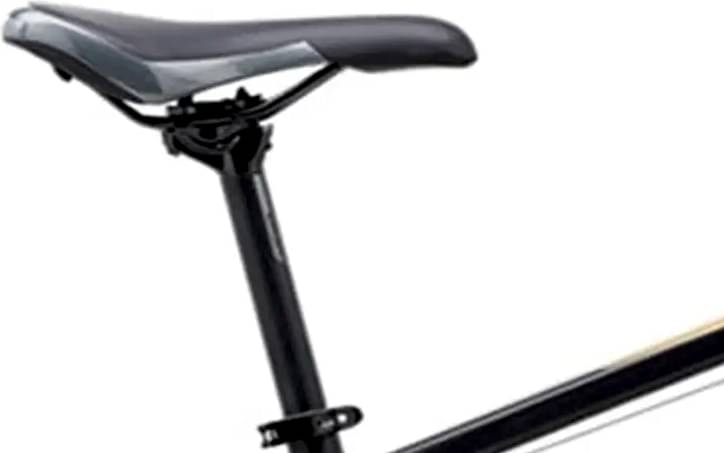

Seat
Saddle
Polygon MTB Saddle, Steel
Seatpost
Entity 27.2x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.48 mm | 1.43 mm |
| Bottom Bracket Height | 298 mm | 298 mm | 298 mm |
| Front Center | 640 mm | 660 mm | 680 mm |
| Rake | 42 mm | 42 mm | 42 mm |
| Trail | 91 mm | 91 mm | 91 mm |
| Stack | 600 mm | 604 mm | 609 mm |
| Reach | 390 mm | 408 mm | 426 mm |
| Top Tube Length | 571 mm | 591 mm | 610 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 406 mm | 456 mm | 500 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1072 mm | 1092 mm | 1112 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 47 mm |
| Standover Height | 705 mm | 747 mm | 783 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 155 cm | 164 cm | 174 cm |
| Rider Max Height | 166 cm | 176 cm | 185 cm |
Model Overview
Cascade 4 completes the Polygon Cascade model. 15 bikes variations carry this model name so far. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
Polygon Cascade 2 2024 is the most affordable bike of this model and has a price of 343$. On the other hand, Polygon Cascade 4 2024, is the most expensive and costs 413$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 413$. If we compare this with the average Crosscountry bike cost we notice that the price is 361.26% lower.
Cascade 4 components

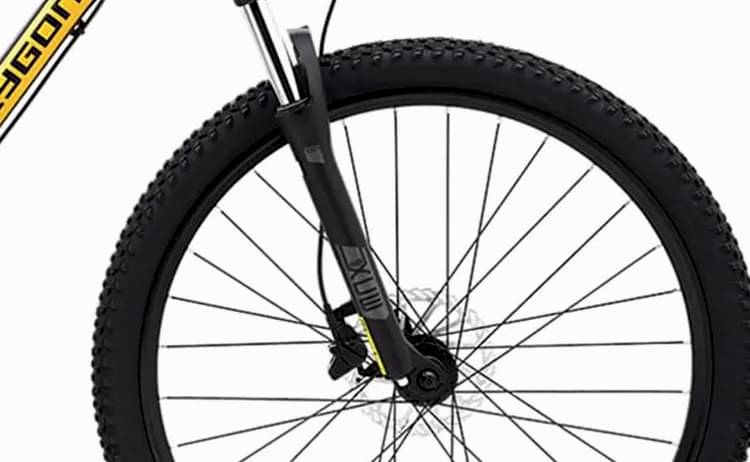

Fork
The fork installed on this bike is the Suntour X1 model. The travel on this model is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the Cascade 4 model has 27.5″ aluminum wheels. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Cascade 4 comes in 3 sizes, that range from 155 cm – 185 cm (5.09 ft – 6.07 ft). In conclusion, finding one for you shouldn’t be a problem.
