Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour
-
Groupset Tourney, Shimano -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
152cm - 165cm
MD
162cm - 175cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALUTECH XC SPORT 27.5"
Suspension Fork
SUNTOUR XCE, 100MM 27.5" TRAVEL
Rear Shock
-
Drivetrain
Rear Derailleur
SHIMANO RD-TY300 6/7-SPEED DA
Shift Levers
SHIMANO ST-EF41 3X7 SPEED
Cassette
SHIMANO TZ500 7-SPEED 14-28T
Crank
WHEELTOP TCSH2-CFPG 42/34/24T 170 MM
Bottom Bracket
CARTRIDGE BB
Chain
KMC HV-500 7-SPEED
Wheels
Rims
DOUBLE WALL ALLOY RIMS W/ ALLOY HUBS
Tires
PERFORMANCE TIRE 27.5" X2.1
Brakes
Brakes
TEKTRO MD-M280 DISC BRAKE
Cockpit
Stem
ENTITY OE E: 45MM, BB: 31.8MM
Handlebar
STEEL W:680MM R:40MM BB:31.8MM
Seat
Saddle
FOMING STEEL RAIL
Seatpost
ENTITY SPORT, 15MM OFFSET, 27.2MMX350MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD |
|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.48 mm |
| Bottom Bracket Height | 303 mm | 303 mm |
| Front Center | 640 mm | 660 mm |
| Rake | 42 mm | 42 mm |
| Trail | 91 mm | 91 mm |
| Stack | 599.1 mm | 603.8 mm |
| Reach | 389.7 mm | 408.2 mm |
| Top Tube Length | 571 mm | 591 mm |
| Seat Tube Angle | 73 ° | 73 ° |
| Seat Tube Length | 406 mm | 456 mm |
| Head Tube Angle | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 105 mm |
| Chainstay Length | 436 mm | 436 mm |
| Wheelbase | 1071 mm | 1092 mm |
| Bottom Bracket Drop | 47 mm | 47 mm |
| Standover Height | 713 mm | 753 mm |
| Wheels | 27" | 27" |
| Rider Min Height | 152 cm | 162 cm |
| Rider Max Height | 165 cm | 175 cm |
About this model

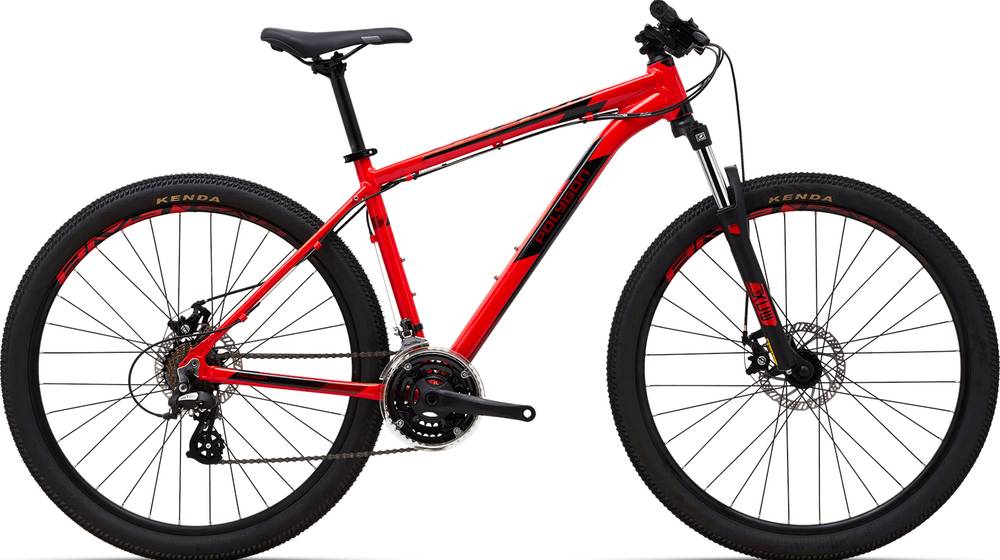

CASCADE 3 is a Polygon Cascade model. 15 bikes variations carry this model name so far. Take a sneak peek at all Polygon Cascade bikes models from 2020, by clicking here.
Model range prices
Polygon CASCADE 2 2020 is the most economical model, with a starting price of 429$. Polygon CASCADE 4 2020 on the other hand costs 549$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2020 for 489$. Comparing the average cost of a Crosscountry bike to this one, you will see that CASCADE 3 price is 289.57% lower.
Overview of components
Fork
This bike has the SunTour fork installed. The fork’s travel is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The wheels on CASCADE 3 are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
This bike is available in 2 sizes. They vary from 152 cm – 175 cm (4.99 ft – 5.74 ft). In conclusion, finding one for you shouldn’t be a problem.
