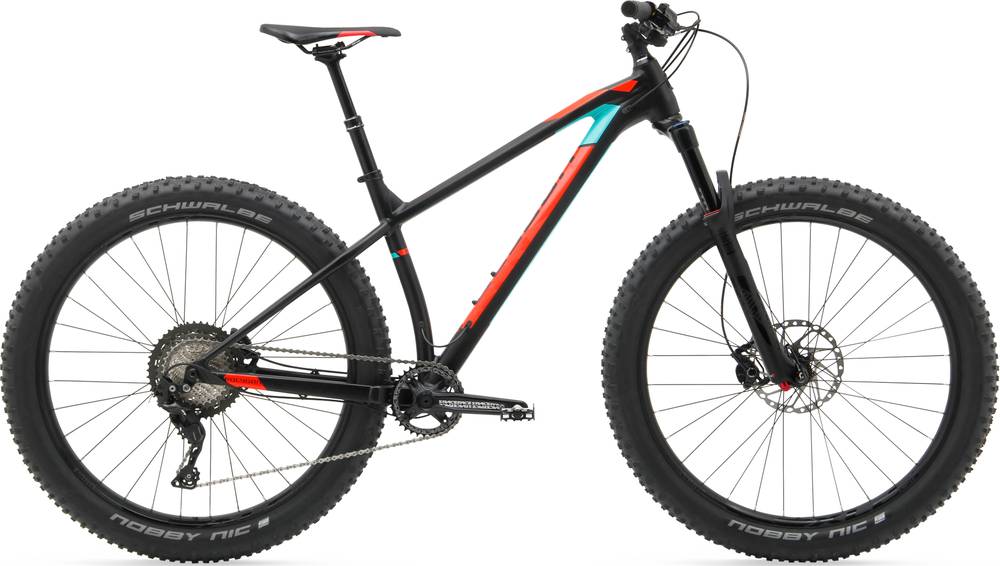

Polygon ENTIAT TR8 2019
2019 Mountain
Estimate price |
1,699$
Weight | 14.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork RockShox Revelation RC
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALX TRAIL, BOOST 12X148MM O.L.D. POST MOUNT, INTERNAL SHIFTING ROUTE
Suspension Fork
ROCKSHOX REVELATION, TRAVEL 120MM, TAPERED STEERER, BOOST 15X110MM O.LD.
Rear Shock
-
Drivetrain
Rear Derailleur
SHIMANO DEORE XT RD-M8000-GS
Shift Levers
SHIMANO DEORE SLX SL-M7000
Cassette
SUNRACE CSMX8.EAZ, 11-SPEED 11-46T
Crank
RACE FACE RIDE SINGLE 34T, 170MM (S-M), 175MM (L)
Bottom Bracket
RACE FACE BB BSA
Chain
KMC X-11
Wheels
Rims
ENTITY BOOST FRONT & REAR WITH SEALED BEARING HUBS
Tires
SCHWALBE NOBBY NIC, 27.5”X3.00”, CLINCHER
Brakes
Brakes
SHIMANO BR-M615
Cockpit
Stem
ENTITY XPERT, ALLOY, 60MM
Handlebar
ENTITY XPERT, ALLOY, 740MM
Seat
Saddle
ENTITY ASSAULT, CR-MO RAIL
Seatpost
ADJUSTABLE HEIGHT W/ ALLOY, 30.9X400MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.63 mm | 1.54 mm | 1.47 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm |
| Front Center | 670 mm | 699 mm | 721 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 89 mm | 89 mm | 89 mm |
| Stack | 617.8 mm | 622.4 mm | 627.1 mm |
| Reach | 378.5 mm | 405.1 mm | 425.8 mm |
| Top Tube Length | 560 mm | 591 mm | 616 mm |
| Seat Tube Angle | 73.75 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 395 mm | 435 mm | 485 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1094 mm | 1122 mm | 1145 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm |
| Standover Height | 688 mm | 697 mm | 730 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
ENTIAT TR8 is part of the Polygon Entiat model. 6 bikes variations carry this model name so far. You can easily view all of the Polygon Entiat bikes models from 2019, here.
Model range prices
Polygon ENTIAT TR6 2019 is the most economical model, with a starting price of 1099$. Polygon Entiat TR 8 2019 on the other hand costs 1699$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1699$. Doing a quick comparison, we notice that ENTIAT TR8 price is 62.57% smaller than the average cost of a Trail bike.
Trail bikes average weight
The average weight for Trail bikes is 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
considerably heavier than average, ENTIAT TR8 has a weight of 14.8 kg (32.63 lbs). In conclusion, the average Trail bike weighs 14.02% less than ENTIAT TR8.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
ENTIAT TR8 components
Fork
This bike has the RockShox Revelation RC fork installed. The fork’s travel is 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
As for the wheels, Polygon ENTIAT TR8 2019, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the ENTIAT TR8. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
