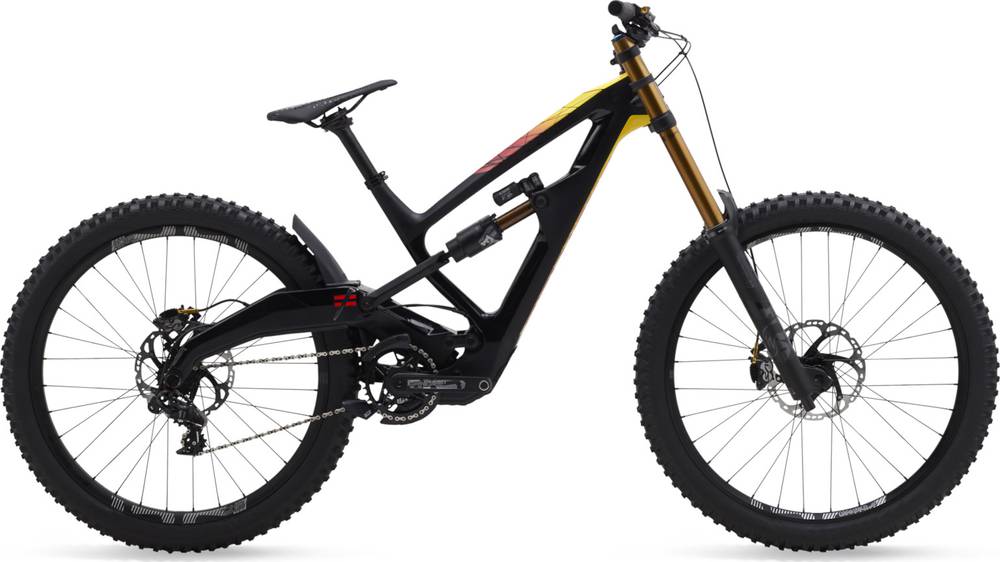

Polygon Xquarone DH 9 2019
2019 Mountain
Estimate price |
6,399$
Weight | 16.12 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 200mm -
Travel Rear 218mm -
Fork Fox Factory Float 40
-
Groupset X01, e*thirteen LG1 Plus -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX Factory 40 Float with Kashima coat
Rear Shock
FOX Factory Float X2
Drivetrain
Rear Derailleur
SRAM X01 DH, 7-speed
Front Derailleur
N/A
Shift Levers
SRAM X01 DH, 7-speed
Cassette
e*thirteen 7-speed, 9-21 tooth, direct mount
Crank
e*thirteen LG1+, Boost, 165mm
Bottom Bracket
e*thirteen BB92, pressfit
Chain
KMC X-11
Chain Guide
e*thirteen LG1
Pedals
none
Wheels
Front Hub
e*thirteen LG1+ wheelset
Rear Hub
e*thirteen LG1+ wheelset
Rims
e*thirteen LG1+ wheelset
Spokes
e*thirteen LG1+ wheelset
Tires
Schwalbe Magic Mary, 27.5”x2.50”
Brakes
Brakes
Shimano Saint BR-M820, metal pad with fins
Brake Levers
Shimano Saint BR-M820
Cockpit
Stem
Race Face Atlas, 35mm, direct mount
Handlebar
Race Face Atlas, 35mm
Headset
FSA NO.57E-1
Seat
Saddle
Entity Assault
Seatpost
Entity
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.488 mm | 1.4 mm | 1.344 mm | 1.274 mm |
| Bottom Bracket Height | 350.75 mm | 350.75 mm | 350.75 mm | 350.75 mm |
| Stack | 595 mm | 595 mm | 605 mm | 605 mm |
| Reach | 400 mm | 425 mm | 450 mm | 475 mm |
| Top Tube Length | 577.38 mm | 602.38 mm | 633.51 mm | 658.31 mm |
| Seat Tube Angle | 73.4 ° | 73.4 ° | 73.1 ° | 73.1 ° |
| Seat Tube Length | 400 mm | 400 mm | 400 mm | 400 mm |
| Head Tube Angle | 63 ° | 63 ° | 63 ° | 63 ° |
| Head Tube Length | 97.52 mm | 97.52 mm | 108.75 mm | 108.75 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1198 mm | 1223 mm | 1253 mm | 1278 mm |
| Bottom Bracket Drop | 5 mm | 5 mm | 5 mm | 5 mm |
| Standover Height | 703 mm | 703 mm | 703 mm | 703 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Xquarone DH 9 belongs to the Polygon Xquarone model. 36 bikes variations carry this model name so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
Polygon XQUARONE EX7 SHIMANO SLX 2019 is the cheapest bike model and costs 4299$. Polygon Xquarone EX 9 2019 is the most expensive one and costs 7999$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Downhill bikes
According to our calculations, the average cost of a Downhill bike that is reliable is 3391$. However, even if your budget is less than the average, you might still be able to get a top-quality Downhill bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2019 and its price was 6399$. Doing a quick comparison, we notice that Xquarone DH 9 price is 88.71% more expensive than the average cost of a Downhill bike.
Downhill bikes average weight
The average weight for Downhill bikes is 15.89 kg (35.03 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
slightly heavier than average, Xquarone DH 9 has a weight of 16.12 kg (35.54 lbs). In other words, this model is 1.45% heavier than the average Downhill bike.
Xquarone DH 9 components
Fork
Polygon Xquarone DH 9 2019 bike is equipped with the Fox Factory Float 40 fork, and has 200mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this bike is FOX Factory Float X2, with a travel distance of 218mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The wheels on Xquarone DH 9 are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Xquarone DH 9 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
