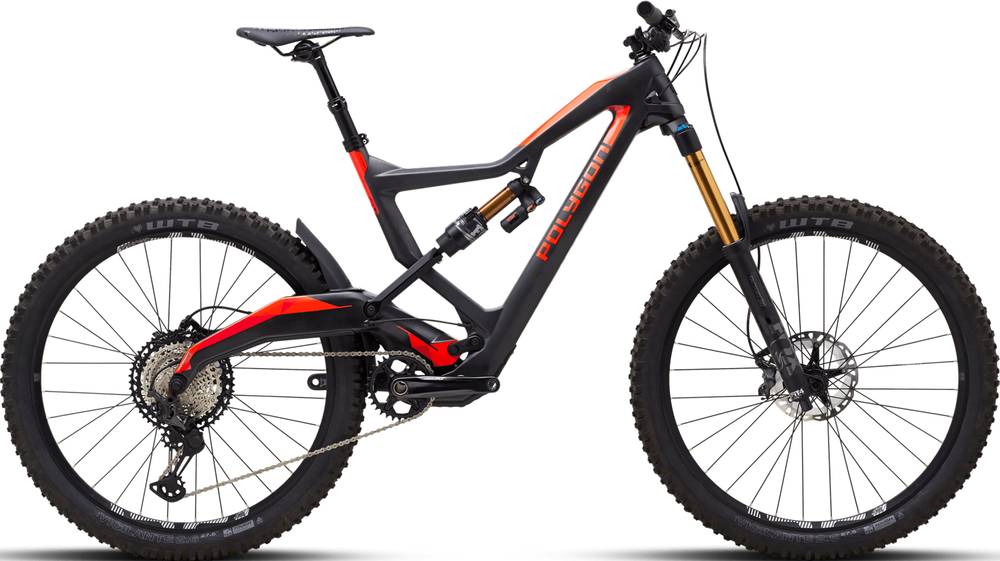

Polygon XQUARONE EX8 SHIMANO XT 2019
2019 Mountain
Estimate price |
5,399$
Weight | 13.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 180mm -
Travel Rear 180mm -
Fork Fox Factory Float 36
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
162cm - 175cm
LG
172cm - 185cm
XL
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NAILD R3ACT 2PLAY SUSPENSION ACX, 180MM TRAVEL, BOOST
Suspension Fork
FOX FACTORY 36 FLOAT, BOOST 15X110MM, 180MM (27.5”) TRAVEL
Rear Shock
FOX FACTORY FLOAT X2 E2E:230X65MM
Drivetrain
Rear Derailleur
SHIMANO XT RD-M8100 12-SPEED DA
Shift Levers
SHIMANO XT SL-M8100 12-SPEED
Cassette
SHIMANO XT CS-M8100 12-SPEED 10-51T
Crank
SHIMANO XT FC-M8100 12-SPEED, 32T, 175MM
Bottom Bracket
SHIMANO BB PRESSFIT
Chain
SHIMANO 12SP
Wheels
Rims
E13 TRS+ W/ SHIMANO XT HUB
Tires
WTB VIGILANTE 27.5”X2.6
Brakes
Brakes
SHIMANO XT BR-M8120
Cockpit
Stem
RACE FACE TURBINE R 35; ALLOY, E:50MM, R:0DEG, B B:35MM
Handlebar
RACE FACE NEXT R 35; CARBON, W:780MM, R:20MM, BB:35MM
Seat
Saddle
ENTITY XTENT
Seatpost
KS LEV ISO, T:125MM (M), 150MM (L-XL), 30.9MM, OFFSET:18MM,
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.32 mm | 1.3 mm | 1.31 mm |
| Bottom Bracket Height | 354 mm | 354 mm | 354 mm |
| Front Center | 754 mm | 777 mm | 794 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 110 mm | 110 mm | 110 mm |
| Stack | 591 mm | 604.7 mm | 622.9 mm |
| Reach | 448.8 mm | 464.8 mm | 474.4 mm |
| Top Tube Length | 623 mm | 643 mm | 668 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 420 mm | 465 mm | 485 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 90 mm | 105 mm | 125 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1182 mm | 1204 mm | 1222 mm |
| Bottom Bracket Drop | 3 mm | 3 mm | 3 mm |
| Standover Height | 730 mm | 762 mm | 779 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 162 cm | 172 cm | 182 cm |
| Rider Max Height | 175 cm | 185 cm | 195 cm |
About this model
XQUARONE EX8 SHIMANO XT completes the Polygon Xquarone model. Polygon launched 36 bikes of this model so far. Take a sneak peek at all Polygon Xquarone bikes models from 2019, by clicking here.
Model range prices
Polygon XQUARONE EX7 SHIMANO SLX 2019 is the cheapest bike model and costs 4299$. Polygon Xquarone EX 9 2019 is the most expensive one and costs 7999$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro bikes
According to our calculations, the average cost of an Enduro bike that is reliable is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
At the moment of the release date, Polygon XQUARONE EX8 SHIMANO XT price was 5399$. If we compare this with the average Enduro bike cost we notice that the price is 50.01% more expensive.
Average weight for Enduro bikes
The average weight for Enduro bikes is 14.27 kg (31.46 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Polygon XQUARONE EX8 SHIMANO XT it’s weighing 13.5 kg (29.76 lbs). At this weight, is a bit lighter than average. In other words, this model is 5.7% lighter than the average Enduro bike.
XQUARONE EX8 SHIMANO XT components
Fork
This bike has the Fox Factory Float 36 fork installed. The fork’s travel is 180mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The XQUARONE EX8 SHIMANO XT has a rear shock with a travel of 180mm. The model FOX FACTORY FLOAT X2 E2E:230X65MM is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When leaving the production line, the XQUARONE EX8 SHIMANO XT model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The XQUARONE EX8 SHIMANO XT comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 3 sizes. They vary from 162 cm – 195 cm (5.31 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
The Polygon model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
