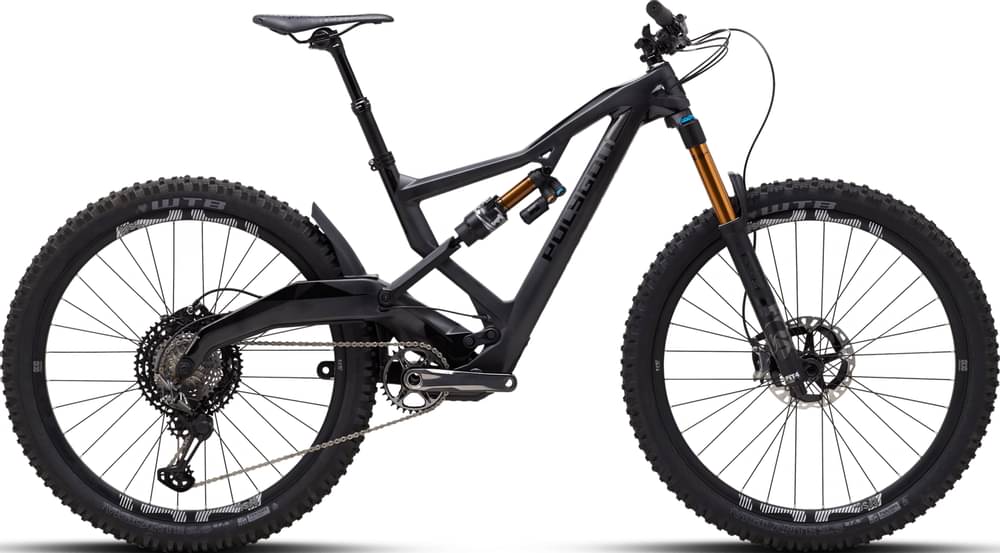

Polygon XQUARONE EX9 SHIMANO XTR 2019
2019 Mountain
Estimate price |
6,699$
Weight | 13.5 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 180mm -
Travel Rear 180mm -
Fork Fox Factory Float 36
-
Groupset XTR -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
162cm - 175cm
LG
172cm - 185cm
XL
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NAILD R3ACT 2PLAY SUSPENSION ACX, 180MM TRAVEL, BOOST
Suspension Fork
FOX FACTORY 36 FLOAT, BOOST 15X110MM, 180MM (27.5”) TRAVEL
Rear Shock
FOX FACTORY FLOAT X2 E2E:230X65MM
Drivetrain
Rear Derailleur
SHIMANO XTR RD-M9100 12-SPEED DA
Shift Levers
SHIMANO XTR SL-M9100 12-SPEED
Cassette
SHIMANO XTR CS-M9100 12-SPEED 10-51T
Crank
SHIMANO XT FC-M9001 12-SPEED, 32T, 175MM
Bottom Bracket
SHIMANO BB PRESSFIT
Chain
SHIMANO 12SP
Wheels
Rims
E13 TRS RACE W/ SHIMANO XTR HUB
Tires
WTB VIGILANTE 27.5”X2.6
Brakes
Brakes
SHIMANO XTR BR-M9120
Cockpit
Stem
RACE FACE TURBINE R 35; ALLOY, E:50MM, R:0DEG, B B:35MM
Handlebar
RACE FACE NEXT R 35; CARBON, W:780MM, R:20MM, BB:35MM
Seat
Saddle
ENTITY XTENT
Seatpost
KS LEV ISO, T:125MM (M), 150MM (L-XL), 30.9MM, OFFSET:18MM,
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.32 mm | 1.3 mm | 1.31 mm |
| Bottom Bracket Height | 354 mm | 354 mm | 354 mm |
| Front Center | 754 mm | 777 mm | 794 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 110 mm | 110 mm | 110 mm |
| Stack | 591 mm | 604.7 mm | 622.9 mm |
| Reach | 448.8 mm | 464.8 mm | 474.4 mm |
| Top Tube Length | 623 mm | 643 mm | 668 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 420 mm | 465 mm | 485 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 90 mm | 105 mm | 125 mm |
| Chainstay Length | 428 mm | 428 mm | 428 mm |
| Wheelbase | 1182 mm | 1204 mm | 1222 mm |
| Bottom Bracket Drop | 3 mm | 3 mm | 3 mm |
| Standover Height | 730 mm | 762 mm | 779 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 162 cm | 172 cm | 182 cm |
| Rider Max Height | 175 cm | 185 cm | 195 cm |
Model Overview
XQUARONE EX9 SHIMANO XTR is part of the Polygon Xquarone model. There are 36 bikes that carry this model name. You can get a glimpse at all models from 2019, by clicking on this link.
Model range prices
Polygon XQUARONE EX7 SHIMANO SLX 2019 is the most economical model, with a starting price of 4299$. Polygon Xquarone EX 9 2019 on the other hand costs 7999$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro bikes
If you want to purchase a solid Enduro bike, it is important to know that the average cost is 3599$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Polygon released this model in 2019, its price was 6699$. Doing a quick comparison, we notice that XQUARONE EX9 SHIMANO XTR price is 86.14% more expensive than the average cost of an Enduro bike.
Average weight for Enduro bikes
On a deeper look, we notice that the average weight of an Enduro bike is 14.27 kg (31.46 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
XQUARONE EX9 SHIMANO XTR weighs 13.5 kg (29.76 lbs) and is a bit lighter than the average. In conclusion, the average Enduro bike weighs 5.7% more than XQUARONE EX9 SHIMANO XTR.
XQUARONE EX9 SHIMANO XTR components
Fork
The XQUARONE EX9 SHIMANO XTR comes factory-installed with the Fox Factory Float 36 fork. This has a travel range of 180mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Polygon XQUARONE EX9 SHIMANO XTR bike has the FOX FACTORY FLOAT X2 E2E:230X65MM model installed, and has a travel of 180mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When leaving the production line, the XQUARONE EX9 SHIMANO XTR model has 27.5″ carbon wheels. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Polygon XQUARONE EX9 SHIMANO XTR is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 162 cm – 195 cm (5.31 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
