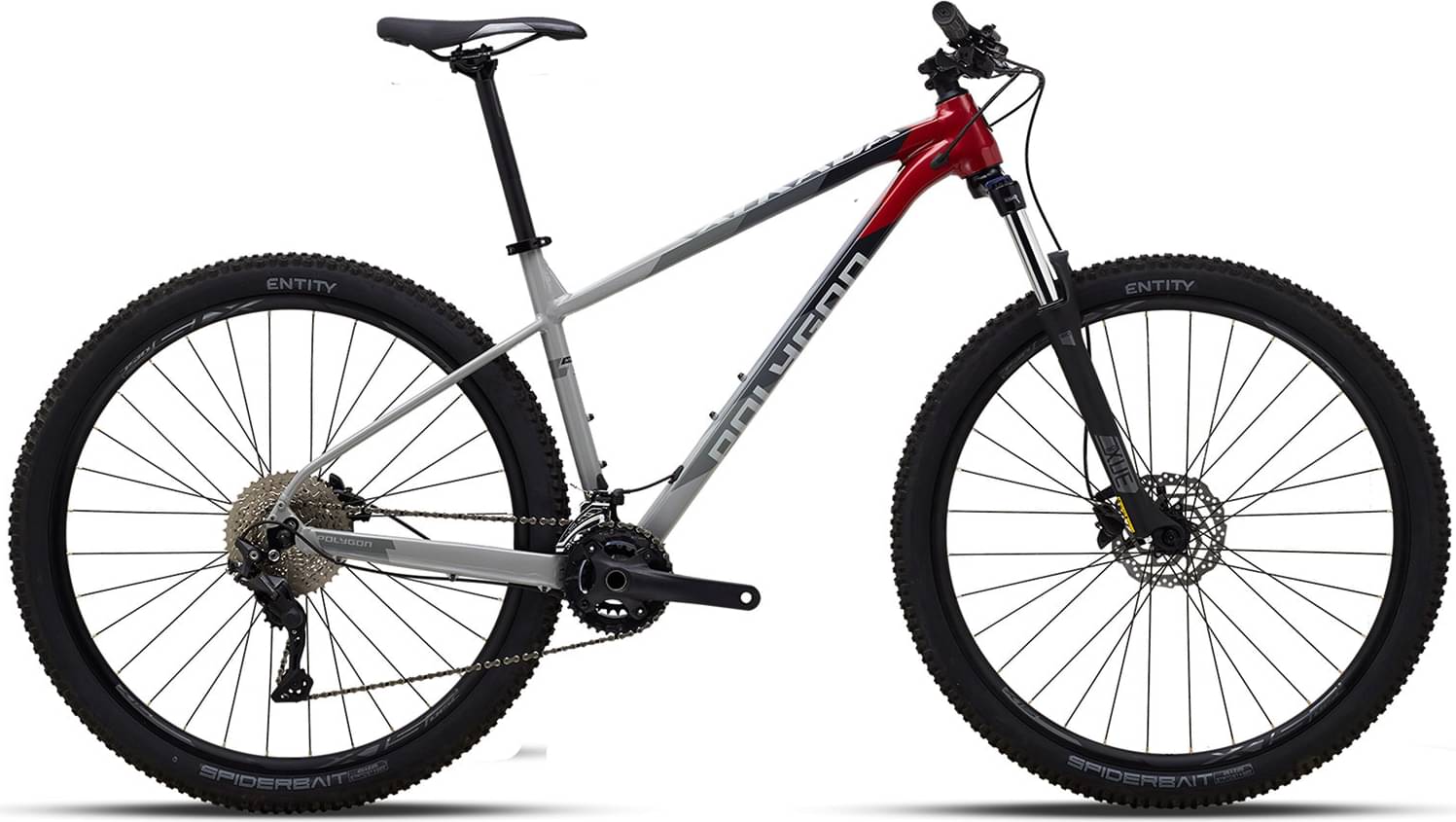

Polygon Xtrada 5 2×10 2022
2022 Mountain
Estimate price |
708$
Weight | 14.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 27.5" -
Travel Front 120mm -
Fork Suntour XCM HLO
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 169cm
MD
167cm - 178cm
MD
167cm - 178cm
LG
176cm - 186cm
XL
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALX XC Sport 6061 Aluminum Frame, Smooth Welding Technology, Internal Cable Routing, Tapered Headtube, 73mm Threaded Bottom Bracket, Boost QR Rear Axle 141mm
Suspension Fork
Suntour XCM-HLO, 120mm Travel, Preload Adjuster, Hydraulic Lock Out, QR Axle 100mm, Straight 1-1/8" Threadless Steerer
Drivetrain
Rear Derailleur
Shimano Deore RD-M4120 10-Speed
Front Derailleur
Shimano Deore FD-M4100-E Type 2x10-Speed
Shift Levers
Shimano Deore SL-M5100/SL-M4100 2x10-Speed
Cassette
Shimano Deore CS-M4100 11-42T 10-Speed
Crank
Prowheel, Vortex 551-TT-B 36-22T 10-Speed
Bottom Bracket
BSA Threaded 73mm
Chain
KMC X-10 10-Speed
Pedals
Standard flat pedal
Wheels
Front Hub
QRx100mm 32H Center Lock, Alloy
Rear Hub
QRx141mm 32H 32H Center Lock, Alloy
Rims
Entity XL15 Disc, Double Wall Alloy Rims, 24mm Internal Width, Tubeless Ready **
Tires
Entity Mizt 2.25" *
Brakes
Brakes
Tektro HD-M275 Hydraulic Disc
Disk Rotors
Shimano SM-RT10 160mm
Cockpit
Stem
Entity Sport, 31.8mm Clamp
Handlebar
Entity Sport
Headset
Threadless, ZS 44/28.6 | ZS 56/40
Seat
Saddle
Entity Void
Seatpost
Entity Sport, 27.2x350mm, 15mm Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.39 mm | 1.46 mm | 1.4 mm | 1.35 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 685 mm | 707 mm | 720 mm | 742 mm | 764 mm |
| Rake | 38 mm | 37 mm | 44 mm | 44 mm | 44 mm |
| Trail | 110 mm | 111 mm | 111 mm | 111 mm | 111 mm |
| Stack | 595 mm | 601 mm | 631 mm | 635 mm | 639 mm |
| Reach | 412 mm | 432 mm | 432 mm | 452 mm | 472 mm |
| Top Tube Length | 571 mm | 592 mm | 600 mm | 621 mm | 642 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 385 mm | 425 mm | 425 mm | 460 mm | 500 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 95 mm | 100 mm | 95 mm | 100 mm | 105 mm |
| Chainstay Length | 427 mm | 427 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1108 mm | 1130 mm | 1149 mm | 1171 mm | 1193 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 665 mm | 699 mm | 695 mm | 717 mm | 753 mm |
| Front Travel | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 167 cm | 167 cm | 176 cm | 184 cm |
| Rider Max Height | 169 cm | 178 cm | 178 cm | 186 cm | 195 cm |
Model Overview
Xtrada 5 2×10 is part of the Polygon Xtrada model. 32 bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Model range prices
Polygon Xtrada 5 2×10 2022 is the most affordable bike of this model and has a price of 636$. On the other hand, Polygon Xtrada 7 Hardtail 2022, is the most expensive and costs 1099$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even though the average price of a Trail bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 636$. Comparing the average cost of a Trail bike to this one, you will see that Xtrada 5 2×10 price is 334.28% smaller.
Average weight for Trail bikes
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 14.3 kg (31.53 lbs), the Xtrada 5 2×10 model is considerably heavier than average. In conclusion, the average Trail bike weighs 10.17% less than Xtrada 5 2×10.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Xtrada 5 2×10 components
Fork
The Suntour XCM HLO is included from the factory. It has a travel distance of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The Xtrada 5 2×10 2022 bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Xtrada 5 2×10 comes in 5 sizes, that range from 155 cm – 195 cm (5.09 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
