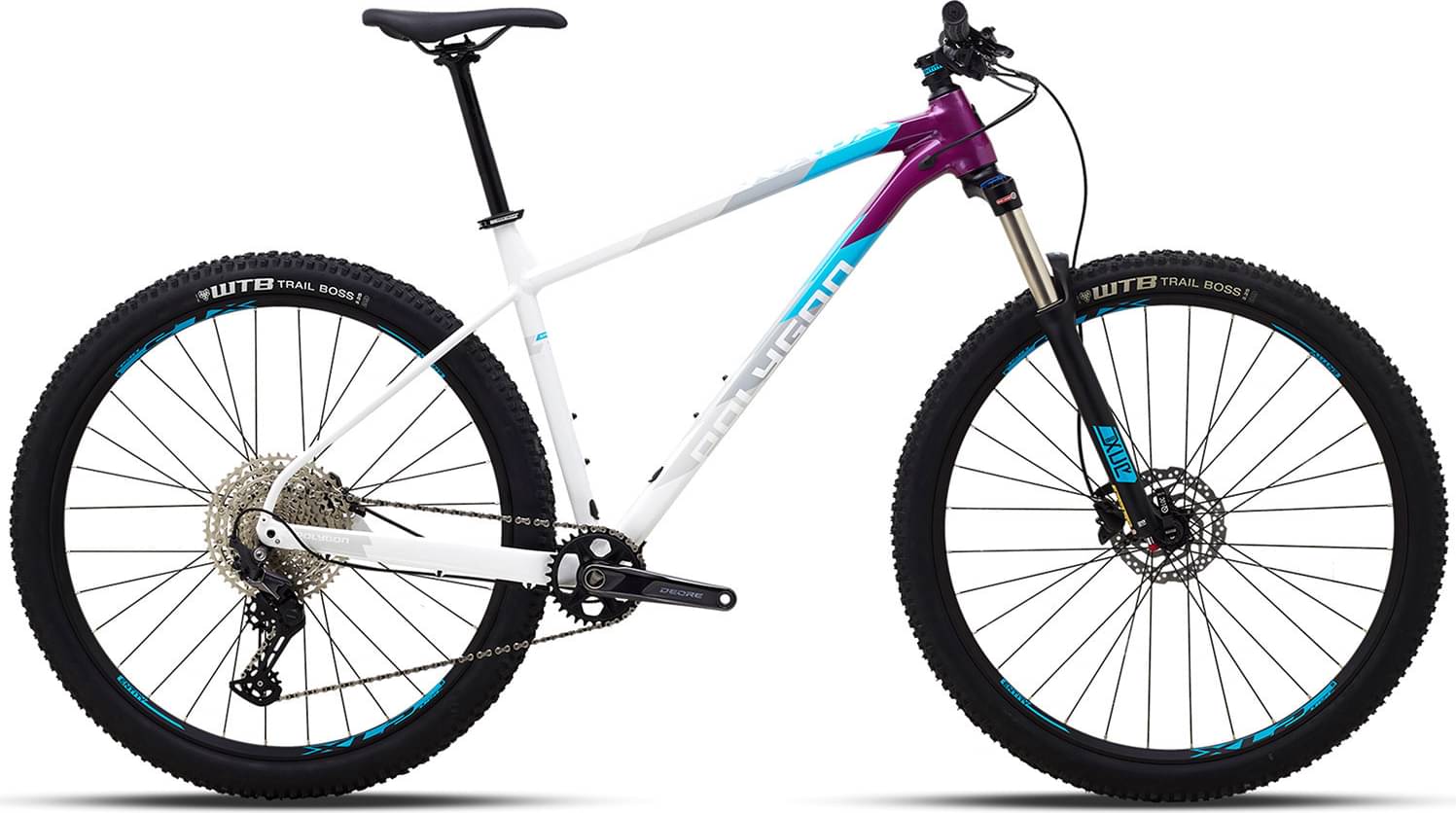

Polygon Xtrada 7 Hardtail 2022
2022 Mountain
Estimate price |
1,099$
Weight | 13.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 27.5" -
Travel Front 120mm -
Fork Suntour XCR 32 Air
-
Groupset Deore -
Suspension Hardtail -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
154cm - 167cm
MD
164cm - 174cm
MD
164cm - 174cm
LG
171cm - 187cm
XL
184cm - 193cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALX XC Sport 6061 Aluminum Frame, Smooth Welding Technology, Internal Cable Routing, Tapered Headtube, 73mm Threaded Bottom Bracket, Boost Rear Thru-Axle 12x148mm
Suspension Fork
Suntour XCR 32 Air LOR, 120mm Travel, Air Spring, Preload & Rebound Adjuster, Hydraulic Lock Out, Tapered 1-1/8" To 1-1/2" Threadless Steerer, 15x100mm Thru-Axle
Drivetrain
Rear Derailleur
Shimano Deore RD-M6120, Shadow+, Direct Mount, 12-Speed
Shift Levers
MODEL
Cassette
MODEL
Crank
Shimano Deore FC-M510, 32T Narrow-Wide Chainring
Bottom Bracket
BSA Threaded, 73mm
Chain
KMC X-12 12-Speed
Pedals
Alloy Flat
Wheels
Front Hub
15x100mm 32H Center Lock, Sealed Bearings, Alloy
Rear Hub
12x148mm 32H 32H Center Lock, Sealed Bearings, Microspline Hub, Alloy
Rims
MODEL
Tires
WTB Trail Boss Comp, 2.25" *
Brakes
Brakes
MODEL
Disk Rotors
Shimano SM-RT30, 160mm
Cockpit
Stem
Entity Expert, 31.8mm Clamp
Handlebar
Entity Expert
Headset
Threadless, ZS 44/28.6 | ZS 56/40
Seat
Saddle
Entity Void
Seatpost
Entity Expert, Zero Offset, 27.2x350mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.39 mm | 1.46 mm | 1.4 mm | 1.35 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 309 mm | 309 mm | 309 mm |
| Front Center | 685 mm | 707 mm | 720 mm | 742 mm | 764 mm |
| Rake | 38 mm | 37 mm | 44 mm | 44 mm | 44 mm |
| Trail | 110 mm | 111 mm | 111 mm | 111 mm | 111 mm |
| Stack | 595 mm | 601 mm | 631 mm | 635 mm | 639 mm |
| Reach | 412 mm | 432 mm | 432 mm | 452 mm | 472 mm |
| Top Tube Length | 571 mm | 592 mm | 600 mm | 621 mm | 642 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 385 mm | 425 mm | 425 mm | 460 mm | 500 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 95 mm | 100 mm | 95 mm | 100 mm | 105 mm |
| Chainstay Length | 427 mm | 427 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1108 mm | 1130 mm | 1149 mm | 1171 mm | 1193 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 665 mm | 699 mm | 695 mm | 717 mm | 753 mm |
| Front Travel | 120 mm | 120 mm | 120 mm | 120 mm | 120 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Min Height | 154 cm | 164 cm | 164 cm | 171 cm | 184 cm |
| Rider Max Height | 167 cm | 174 cm | 174 cm | 187 cm | 193 cm |
Model Overview
Xtrada 7 Hardtail belongs to the Polygon Xtrada model. Polygon released 32 bikes variations of this model so far. Take a sneak peek at all Polygon Xtrada bikes models from 2022, by clicking here.
Model range prices
Polygon Xtrada 5 2×10 2022 is the cheapest bike model and costs 636$. Polygon Xtrada 7 Hardtail 2022 is the most expensive one and costs 1099$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1099$. In conclusion, this bike price is 151.32% lower than the price of the average Trail bike.
Trail bikes average weight
Trail bikes weigh an average of 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Xtrada 7 Hardtail weighs 13.4 kg (29.54 lbs) and is slightly heavier than the average. In conclusion, the average Trail bike weighs 3.24% less than Xtrada 7 Hardtail.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
Polygon Xtrada 7 Hardtail 2022 bike is equipped with the Suntour XCR 32 Air fork, and has 120mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the Xtrada 7 Hardtail bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Xtrada 7 Hardtail has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
Polygon Xtrada 7 Hardtail bike has 5 sizes, in the range of 154 cm – 193 cm (5.05 ft – 6.33 ft). In conclusion, you won’t have a problem finding one that suits you.
