Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 100mm -
Fork SunTour XCR 32
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
MD
168cm - 180cm
LG
178cm - 189cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALX XC SPORT/ TRAIL 27.5” & 29”
Suspension Fork
SUNTOUR XCR 32, 100MM TRAVEL
Rear Shock
-
Drivetrain
Rear Derailleur
SHIMANO DEORE M6000
Shift Levers
SHIMANO DEORE M6000 1X10 SPEED
Cassette
SHIMANO HG500 10SP 11-42T
Crank
ALLOY CRANKSET 32T
Bottom Bracket
INCLUDE CRANKSET
Chain
KMC X10-1
Wheels
Rims
ALLOY WHEELSET W/ QR BOOST W/32H FRONT:QRx100mm REAR:BOOST QRx141mm
Tires
ENTITY SPIDERBAIT TIRE 27.5”X2.25” / 29”X2.25”
Brakes
Brakes
SHIMANO MT201 HYDRAULIC DISC BRAKE
Cockpit
Stem
ENTITY XPERT, ALLOY, E:35MM BB:31.8MM
Handlebar
ENTITY XPERT, ALLOY, W:760MM R:12MM BB:31.8MM
Seat
Saddle
ENTITY VOID SADDLE
Seatpost
ENTITY XPERT, ALLOY, 27.2MMX350MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD | LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.45 mm | 1.48 mm | 1.41 mm | 1.43 mm | 1.39 mm |
| Bottom Bracket Height | 299 mm | 299 mm | 316 mm | 299 mm | 316 mm | 316 mm |
| Front Center | 663 mm | 683 mm | 683 mm | 699 mm | 698 mm | 715 mm |
| Rake | 42 mm | 42 mm | 46 mm | 42 mm | 46 mm | 46 mm |
| Trail | 91 mm | 91 mm | 91 mm | 91 mm | 91 mm | 91 mm |
| Stack | 616 mm | 616 mm | 630 mm | 621 mm | 630 mm | 635 mm |
| Reach | 406 mm | 426 mm | 426 mm | 441 mm | 441 mm | 456 mm |
| Top Tube Length | 593 mm | 613 mm | 617 mm | 629 mm | 632 mm | 648 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 406 mm | 456 mm | 431 mm | 506 mm | 470 mm | 516 mm |
| Head Tube Angle | 69 ° | 69 ° | 69.5 ° | 69 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 100 mm | 100 mm | 100 mm | 105 mm | 105 mm | 105 mm |
| Chainstay Length | 436 mm | 436 mm | 446 mm | 436 mm | 446 mm | 446 mm |
| Wheelbase | 1095 mm | 1115 mm | 1122 mm | 1131 mm | 1137 mm | 1154 mm |
| Bottom Bracket Drop | 47 mm | 47 mm | 60 mm | 47 mm | 60 mm | 60 mm |
| Standover Height | 717 mm | 750 mm | 749 mm | 797 mm | 781 mm | 811 mm |
| Wheels | 27" | 27" | 29" | 27" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 168 cm | 178 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 180 cm | 189 cm | 189 cm | 199 cm |
About this model

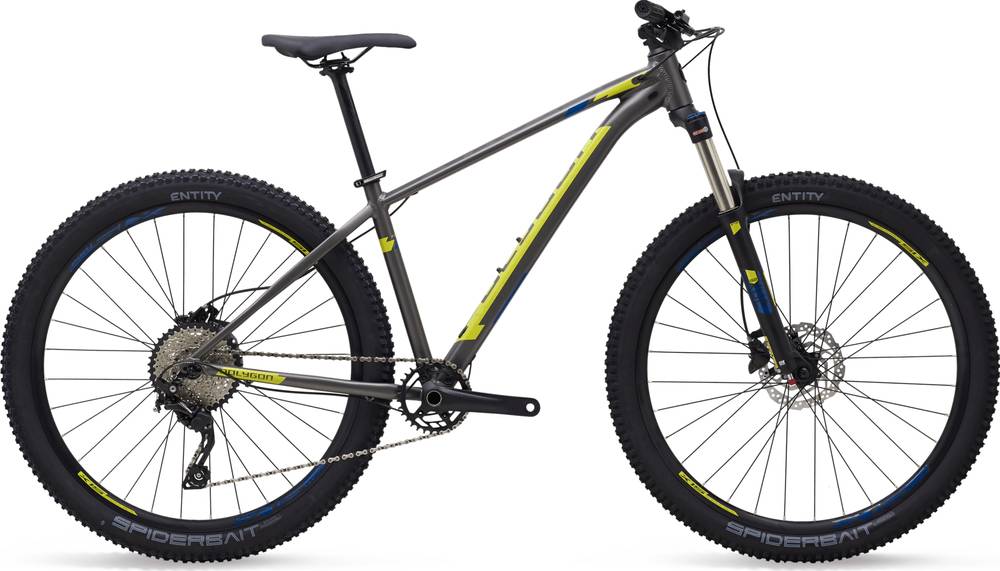

XTRADA 6 1X10 is a Polygon Xtrada model. Polygon launched 32 bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
The most economical model, the Polygon XTRADA 5 2020 has a starting price of 799$. Polygon XTRADA 8 2020 on the other hand is the most expensive at 1199$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 799$. If we compare this with the average Crosscountry bike cost we notice that the price is 138.42% smaller.
Overview of components
Fork
This bike has the SunTour XCR 32 fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When leaving the production line, the XTRADA 6 1X10 model has 27.5″ aluminum wheels. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The XTRADA 6 1X10 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
This bike is available in 6 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
