Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" / 29" -
Travel Front 120mm -
Fork SunTour XCR 32
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
152cm - 165cm
MD
162cm - 175cm
MD
162cm - 175cm
LG
172cm - 185cm
LG
172cm - 185cm
XL
182cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
ALX XC 27.5” & 29”
Suspension Fork
SUNTOUR XCR 32 LO-R, 120MM (27.5”) / 120MM (29”) TRAVEL
Rear Shock
-
Drivetrain
Rear Derailleur
SHIMANO, DEORE RD-M5120 11-SPEED
Shift Levers
SHIMANO DEORE SL-M5100 2X11-SPEED
Cassette
SHIMANO, DEORE CS-M5100 11-42T 11-SPEED
Crank
SHIMANO, DEORE FC-M5100 36-26T 11-SPEED
Bottom Bracket
BSA THREADED
Chain
KMC X-11 11-SPEED
Wheels
Rims
DOUBLE WALL ALLOY RIMS
Tires
SPYDERBAIT SA-290 27.5”X2.25” / 29”X2.25”
Brakes
Brakes
HYDRAULIC DISC BRAKE
Cockpit
Stem
ENTITY SPORT, ALLOY E:45MM BB:31.8MM
Handlebar
ENTITY SPORT, ALLOY W:760MM R:12MM BB:31.8MM
Seat
Saddle
ENTITY VOID
Seatpost
ENTITY SPORT, 15MM OFFSET, 27.2MMX350MM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD | LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.39 mm | 1.46 mm | 1.34 mm | 1.41 mm | 1.36 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 309 mm | 310 mm | 309 mm | 309 mm |
| Front Center | 685 mm | 707 mm | 720 mm | 729 mm | 742 mm | 764 mm |
| Rake | 37 mm | 37 mm | 44 mm | 37 mm | 44 mm | 44 mm |
| Trail | 111 mm | 111 mm | 111 mm | 111 mm | 111 mm | 111 mm |
| Stack | 595.8 mm | 601.3 mm | 631.3 mm | 605 mm | 635.2 mm | 639.8 mm |
| Reach | 412 mm | 432 mm | 432 mm | 452 mm | 452 mm | 472 mm |
| Top Tube Length | 571 mm | 592 mm | 600 mm | 614 mm | 621 mm | 642 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 385 mm | 425 mm | 425 mm | 460 mm | 460 mm | 500 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 95 mm | 100 mm | 95 mm | 105 mm | 100 mm | 105 mm |
| Chainstay Length | 427 mm | 427 mm | 437 mm | 427 mm | 437 mm | 437 mm |
| Wheelbase | 1108 mm | 1130 mm | 1149 mm | 1152 mm | 1171 mm | 1193 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 65 mm | 45 mm | 65 mm | 65 mm |
| Standover Height | 665 mm | 699 mm | 695 mm | 728 mm | 717 mm | 753 mm |
| Wheels | 27" | 27" | 29" | 27" | 29" | 29" |
| Rider Min Height | 152 cm | 162 cm | 162 cm | 172 cm | 172 cm | 182 cm |
| Rider Max Height | 165 cm | 175 cm | 175 cm | 185 cm | 185 cm | 195 cm |
Model Overview

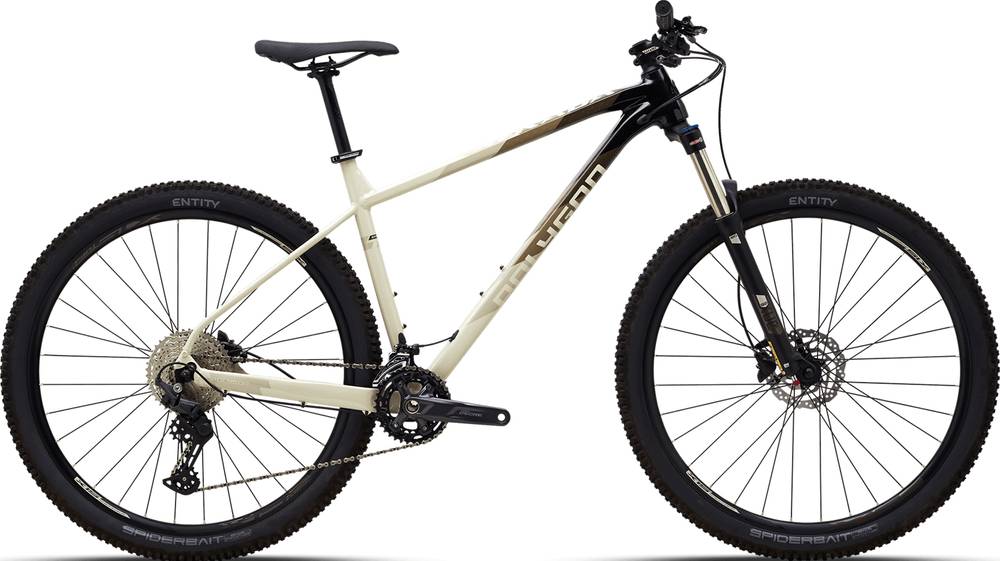

XTRADA 6 2×11 is part of the Polygon Xtrada model. Polygon released 32 bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Polygon XTRADA 5 2020 is the most economical model, with a starting price of 799$. Polygon XTRADA 8 2020 on the other hand costs 1199$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
Our math shows that the average cost of a dependable Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 899$. If we compare this with the average Trail bike cost we notice that the price is 207.23% smaller.
XTRADA 6 2×11 components
Fork
The fork installed on this bike is the SunTour XCR 32 model. The travel on this model is 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The wheels on XTRADA 6 2×11 are the 27.5″ aluminum type. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Polygon XTRADA 6 2×11 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 6 sizes available for this model. Rider height can be anywhere between 152 cm – 195 cm (4.99 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
