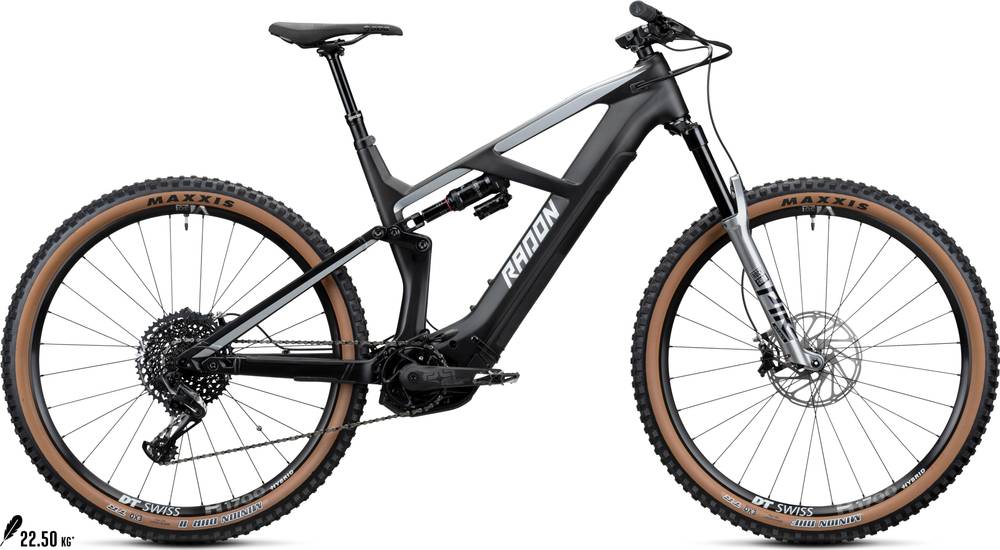

Radon RENDER 10.0 2020
2020 E-bike
Estimate price |
6,397$
Weight | 22.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Pike Ultimate
-
Groupset X01 Eagle, SRAM -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch Powertube 625Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
RENDER HYBRID; Material: Carbon main frame / Aluminium rear triangle, Max. width tire: 2.6", Powertube Capacity: 625 Wh
Suspension Fork
Rock Shox Pike Ultimate RC2, E-Bike, Boost
Rear Shock
RockShox Super Deluxe Ultimate, 210mm x 55mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed
Front Derailleur
N/A
Shift Levers
SRAM X01 Eagle, Single Click, Matchmaker X
Cassette
SRAM GX Eagle XG-1275, 10-50
Crank
e*thirteen Plus e*spec, SRAM Eagle Chainring, 34T, 165mm
Chain
SRAM GX Eagle
Chain Guide
e*thirteen e*spec Plus
Pedals
not included
Wheels
Front Hub
DT Swiss H1700 Spline wheelset, 6-bolt rotor mounts, 15x110mm Boost front, 12x148mm Boost rear
Rear Hub
DT Swiss H1700 Spline wheelset, 6-bolt rotor mounts, 15x110mm Boost front, 12x148mm Boost rear
Rims
DT Swiss H1700 Spline 29, 30mm, 110/148mm
Spokes
DT Swiss H1700 Spline wheelset
Tires
Maxxis Minion DHF Skinwall Dual, EXO, TR, 29" x 2.5" WT
Brakes
Brakes
SRAM G2 RSC
Brake Levers
SRAM G2 RSC
Cockpit
Stem
Race Face Turbine, 35 x 50mm
Handlebar
Race Face Turbine R, 35 x 800mm, 35mm rise
Grips
SDG Slater
Headset
Acros Block-Lock, ZS56/ZS56
Seat
Saddle
SDG Radar, CroMo
Seatpost
SDG Tellis, 31.6mm; M/125mm, L/150mm, XL/150mm
Motor & Battery
Motor
Bosch Performance Line CX
Battery
Bosch Powertube 625Wh
Remote
Bosch Kiox
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.36 mm | 1.34 mm |
| Bottom Bracket Height | 346 mm | 346 mm | 346 mm |
| Front Center | 759 mm | 783 mm | 806 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 121 mm | 121 mm | 121 mm |
| Stack | 607.7 mm | 616.8 mm | 630.5 mm |
| Reach | 432.1 mm | 451.9 mm | 469.1 mm |
| Top Tube Length | 583 mm | 606 mm | 628 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 425 mm | 455 mm | 490 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 110 mm | 120 mm | 135 mm |
| Chainstay Length | 449 mm | 449 mm | 449 mm |
| Wheelbase | 1206 mm | 1230 mm | 1254 mm |
| Bottom Bracket Drop | 28 mm | 28 mm | 28 mm |
| Standover Height | 766 mm | 766 mm | 766 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
RENDER 10.0 is a Radon E Render model. Radon released 21 e-bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Radon RENDER 8.0 2020 is the most affordable e-bike of this model and has a price of 4246$. On the other hand, Radon RENDER 10.0 HD SUPREME 2020, is the most expensive and costs 7219$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail e-bikes average price
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2020 for 5839$. If we compare this with the average Trail e-bike cost we notice that the price is 73.52% higher.
Trail e-bikes average weight
Trail e-bikes have an average weight of 23.7 kg (52.25 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
RENDER 10.0 weighs 22.5 kg (49.6 lbs) and is a bit lighter than the average. In conclusion, the average Trail e-bike weighs 5.33% more than RENDER 10.0.
RENDER 10.0 components
Fork
The fork installed on this bike is the RockShox Pike Ultimate model. The travel on this model is 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
From the factory, it comes with the RockShox Super Deluxe Ultimate rear shock model, which has a travel of 140mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When leaving the production line, the RENDER 10.0 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Radon RENDER 10.0 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Radon model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
