Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Alivio, Acera -
Suspension Rigid -
Drivetrain 3 × 9 -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Custom Formed AL-6061 Heat Treated Aluminum 700c True Comfort Frame
Suspension Fork
Alloy Hybrid w/Fender Mounts
Drivetrain
Rear Derailleur
Shimano Alivio T4000
Front Derailleur
Shimano Acera T3000
Shift Levers
Shimano ST-EF65 EZ Fire Plus Trigger Shifter
Cassette
Shimano CS-HG200 9-speed Cassette (11-34t)
Crank
Shimano Altus with Alloy Arms and 28/38/48t Steel Chainrings, with Chainguard
Bottom Bracket
Sealed Cartridge bearing
Chain
KMC HG53
Pedals
Raleigh PP Urban with Traction Tape
Wheels
Front Hub
Formula Alloy Quick Release, 32-hole
Rear Hub
Formula Alloy Quick Release, 32-hole
Rims
DBM-1 Double Wall Alloy
Spokes
14g Stainless Steel
Tires
Vee Tire Co. Easy Street, 700x42c
Brakes
Brakes
Tektro 837 Alloy V-Brake
Brake Levers
Shimano Alloy Four Finger
Cockpit
Stem
Alloy Full Adjust Quill
Handlebar
Aluminum Alloy City Comfort
Grips
Raleigh Comfort
Headset
Semi-Integrated Threaded 1-1/8"
Seat
Saddle
Raleigh Comfort
Seatpost
Alloy Suspension
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.422 mm | 1.474 mm | 1.521 mm | 1.567 mm |
| Front Center | 628 mm | 644 mm | 660 mm | 676 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 74 mm | 74 mm | 74 mm | 75 mm |
| Stack | 559 mm | 588 mm | 616 mm | 644 mm |
| Reach | 393 mm | 399 mm | 405 mm | 411 mm |
| Top Tube Length | 575 mm | 590 mm | 605 mm | 620 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 130 mm | 160 mm | 190 mm | 220 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1074 mm | 1090 mm | 1106 mm | 1122 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 717 mm | 761 mm | 803 mm | 846 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

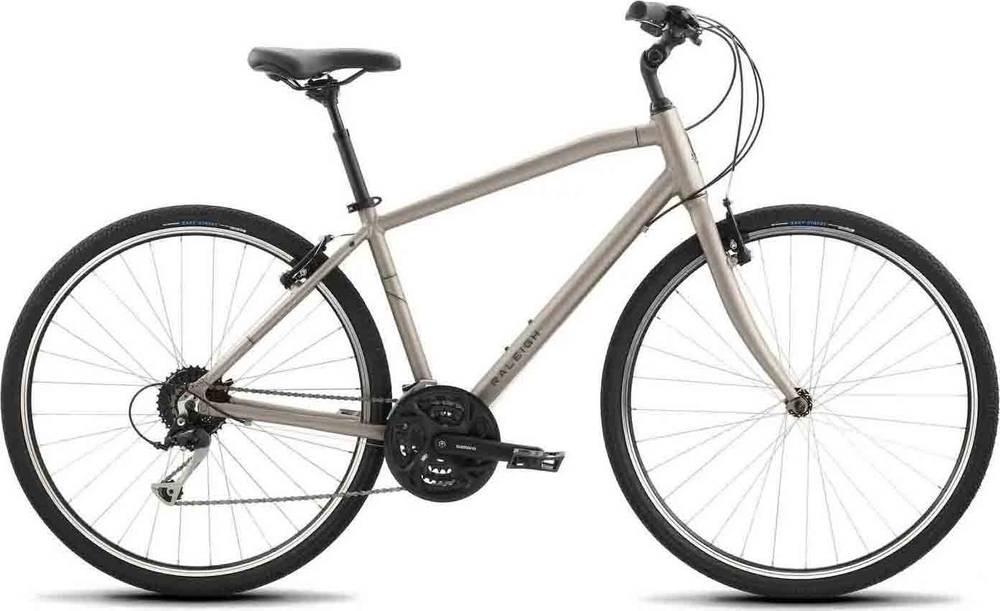

Detour 3 is a Raleigh Detour model. 25 bikes variations carry this model name so far. Take a sneak peek at all Raleigh Detour bikes models from 2019, by clicking here.
Model range prices
Raleigh Detour 1 2019 is the most affordable bike of this model and has a price of 399$. On the other hand, Raleigh Detour 3 2019, is the most expensive and costs 599$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Comfort bikes
If you want to purchase a solid Comfort bike, it is important to know that the average cost is 360$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Comfort bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2019 and its price was 599$. If we compare this with the average Comfort bike cost we notice that the price is 66.39% higher.
Overview of components
Fork material
When it comes to the fork, this bike has an aluminum one, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
The Detour 3 2019 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, you could spend a little extra and get a bike that has hydraulic brakes.
Sizes
Detour 3 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
